Hydraulic push rod 240
The hydraulic pressing rods are specially designed for pressing cable and wire. The shrink section is equipped with a hard steel pawl to ensure safety.
- 180 degree rotatable head
- Little force required
- Automatic security
- Suitable for pressing wire clamps 3 to 10 mm
- Pressure 12 Ton
- Shrinkage range in mm2 = 16 to 240 (cubic mm)

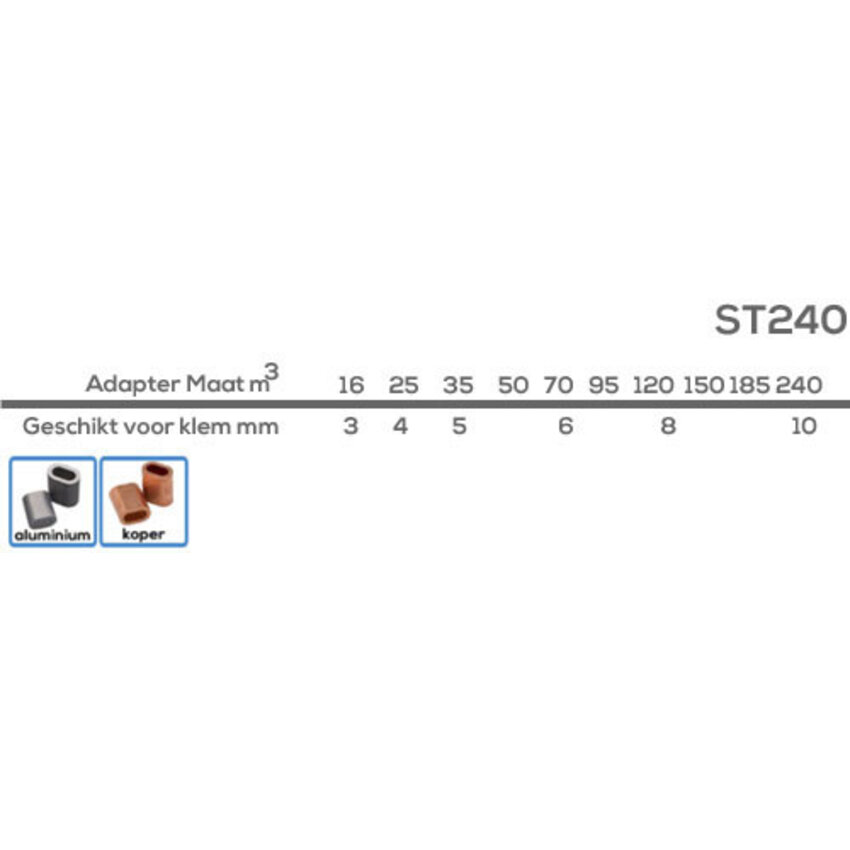

- Added adapters: 16, 25, 35, 50, 70, 95, 120, 150, 185, and 240
- Length 500mm

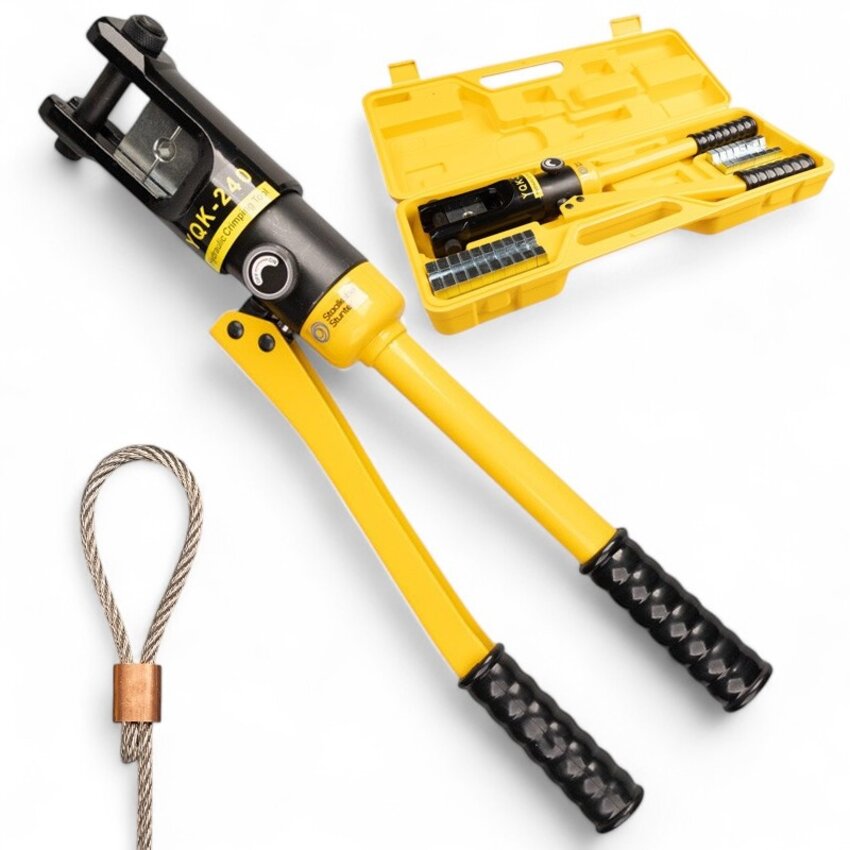

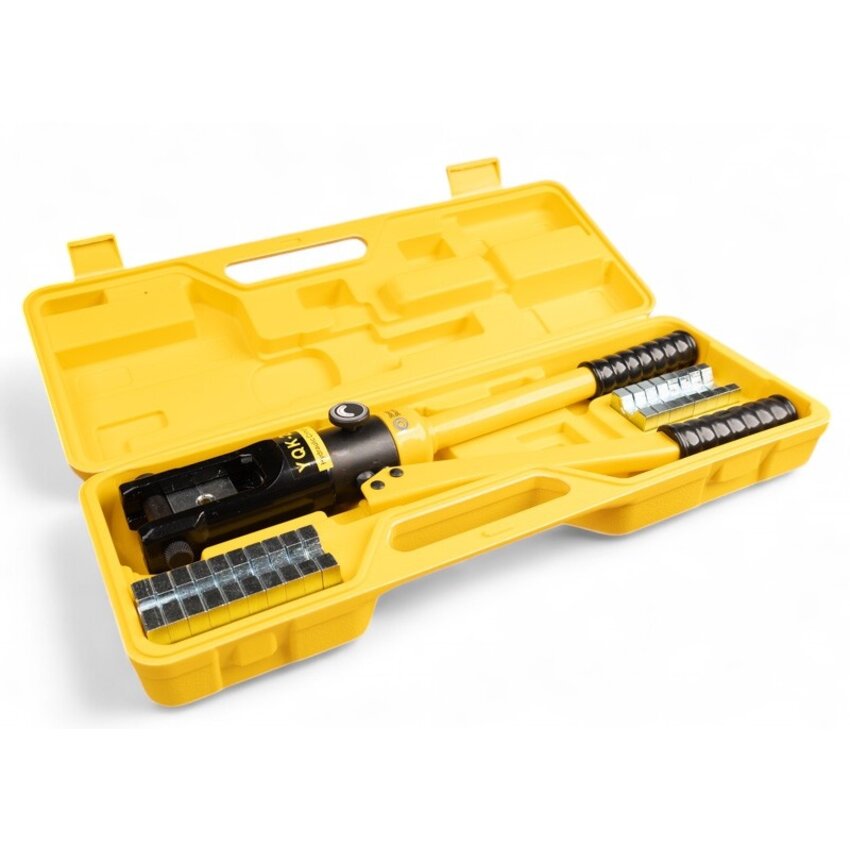

- Supplied in a handy plastic case.
A special hardened adapter for 3mm
is available for this press rod.
Film is of the smaller version (120)
