Terminals special 4mm

Artikelnummer: 716841007R

Barcode: 7423634650695

Terminals special 4mm

Artikelnummer: 716841007R

Barcode: 7423634650695

0 reviews

Patented stainless steel cable terminal for railing or fencing

More info

Quantity from Price per piece*

50+ 17.41

17,95 In stock

  • Free shipping above € 50 (NL)
  • Ordered before 15:00 = shipped immediately
  • All products in stock

Product information

Patented stainless steel Terminal

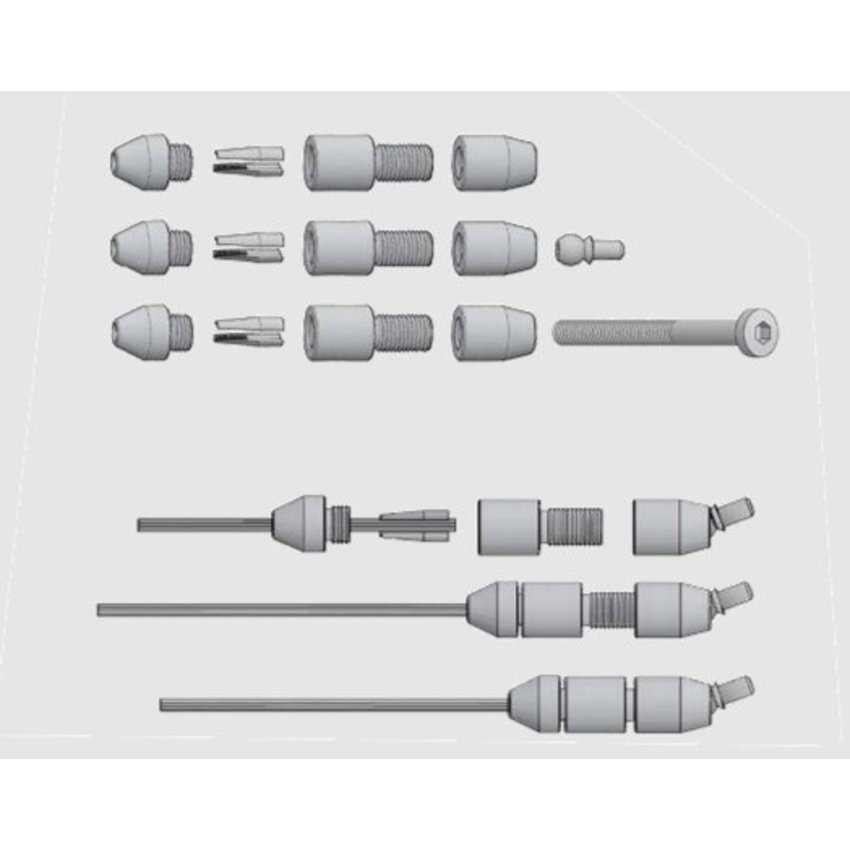

Very unique steel cable terminal, european patented. This terminal has several components merged.

Ps. only use stainless steel wire rope. It is 7x7 tight, which makes the clamping optimal.

.

  • Pull of terminal : 1200 kilos
  • Pull of screw ball : 750 kilos
  • burst load : 1500 kilos
  • Clamping force : 1200 kilos

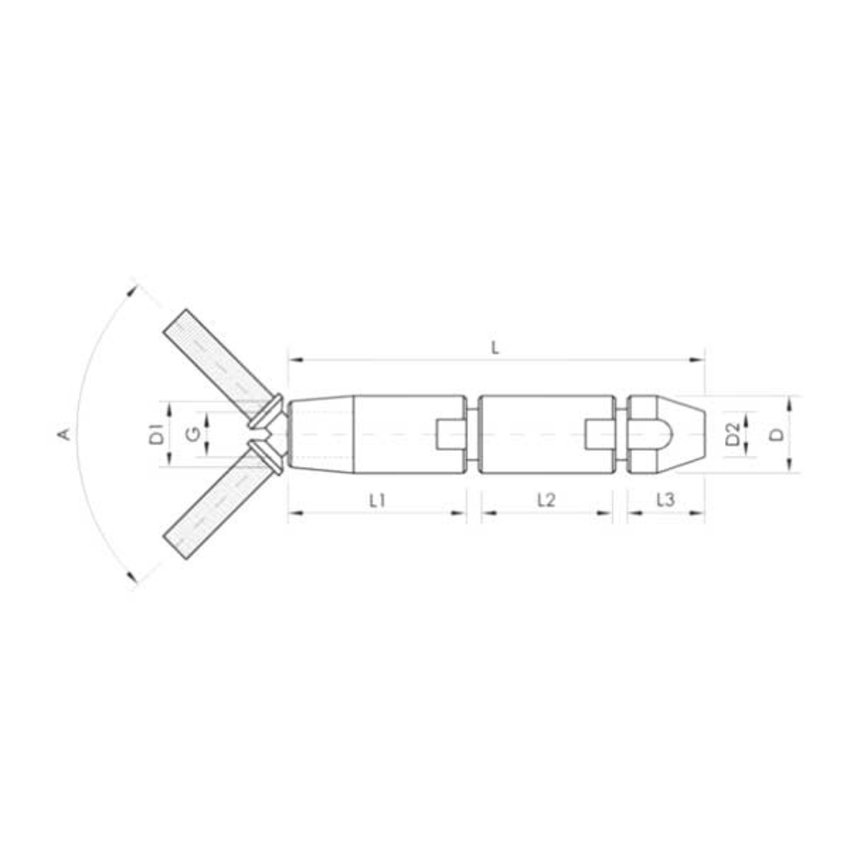

  • Confirmation : up to 35 degrees

    tested by the University of Navarre(escuela de Arquitectura Laboratorio)
  • .

terminal

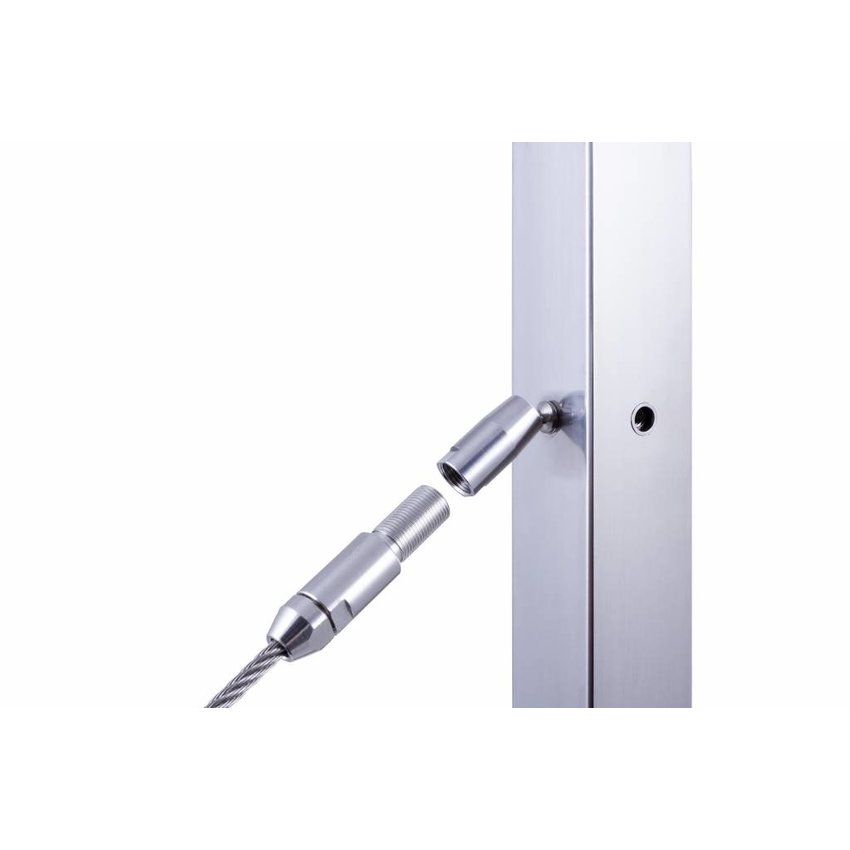

The terminal as thread tensioner.

As shown in the picture, the terminal can be unscrewed a bit.
After the stainless steel cable has been attached, it can be tensioned.

Vele

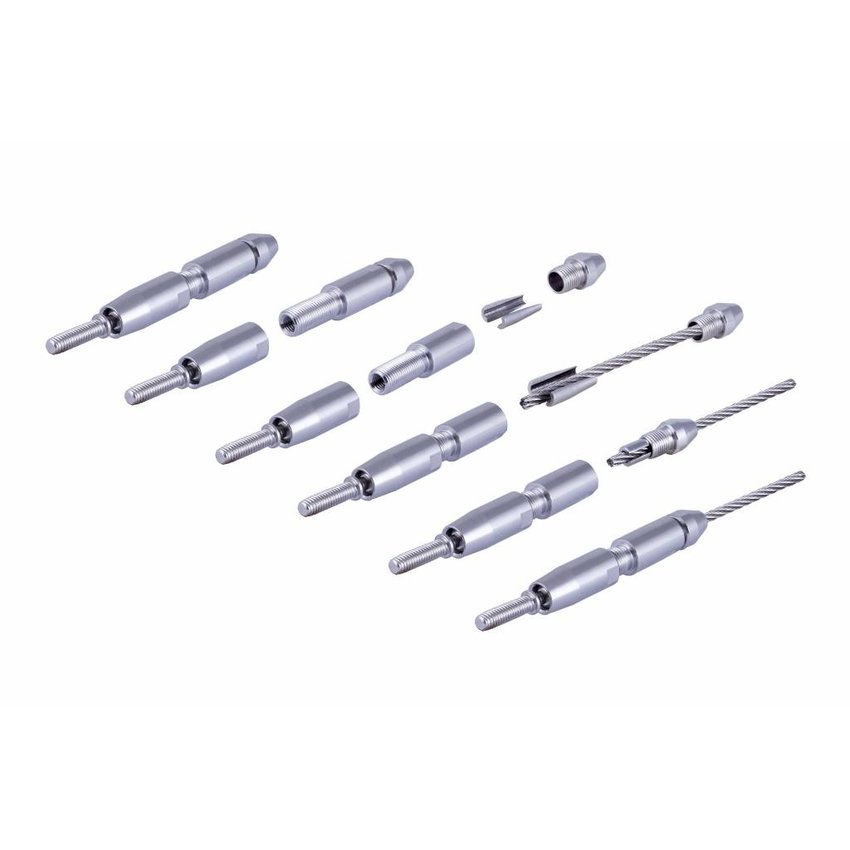

Above a number of possibilities so you can work with the supplied ball bolt but also with a normal M6 bolt.

hekwerk

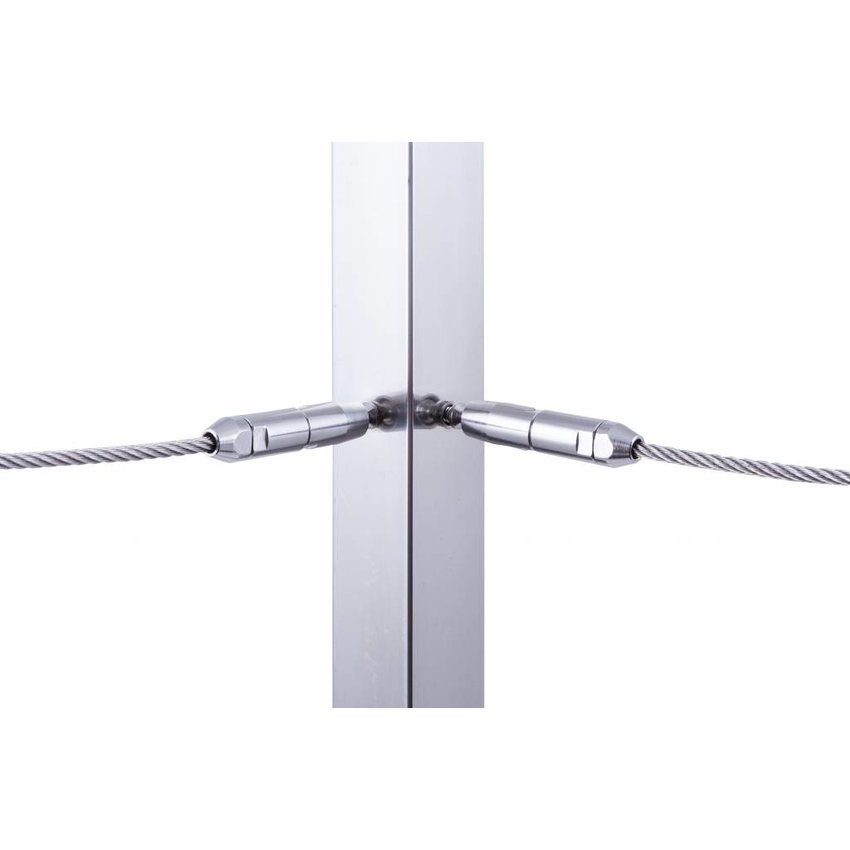

Above example shows a fence or railing made with the patent terminal.
As well as fixing and tensioning can be done without any special tools.

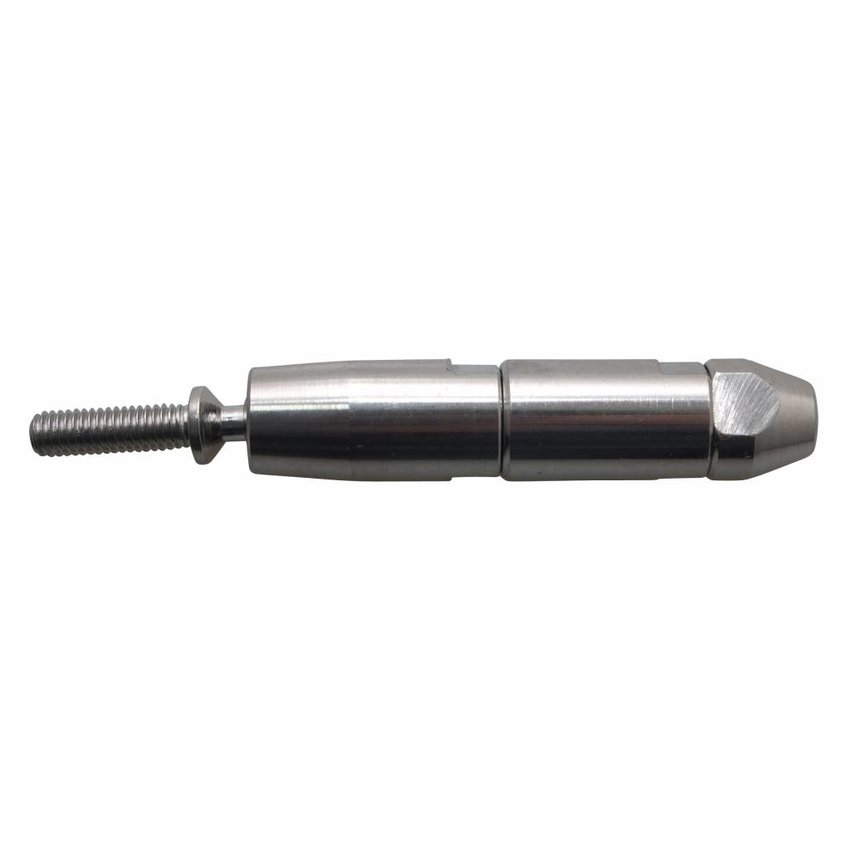

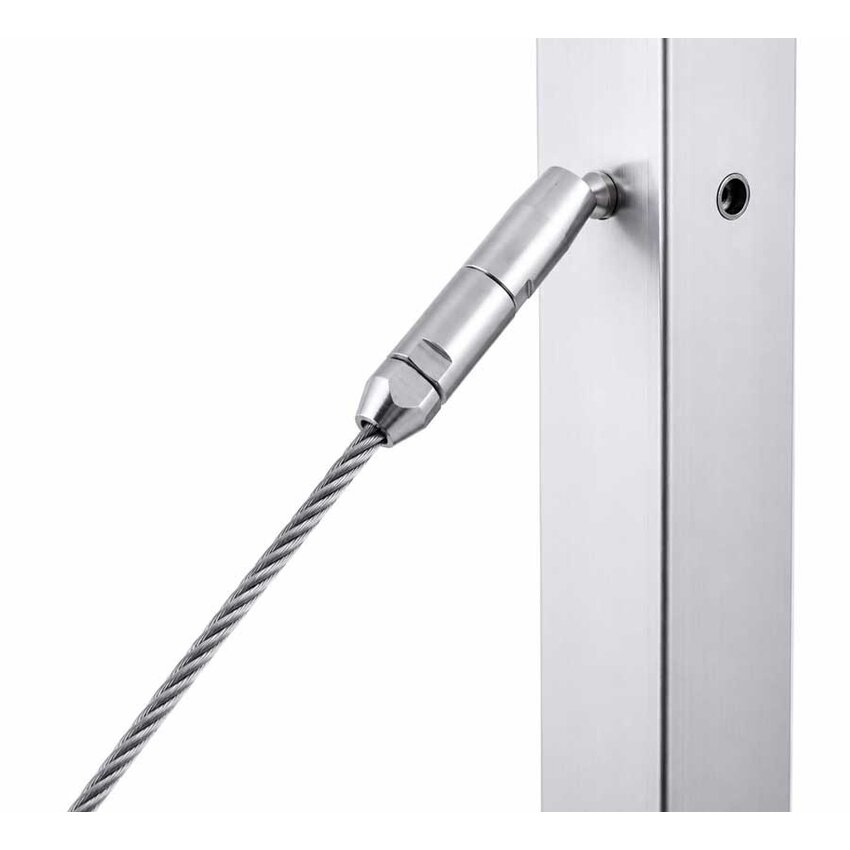

This stainless steel terminal has very fine metric thread on one side it is equipped with a bolt with ball joint, so the cable can also be stretched diagonally up or down. The terminal is also a swageless thread tensioner, which means that work can be done without pressing tools. This terminal is suitable for rvs steel wire rope with a thickness of 4mm. Everything can be installed with a simple key.</ span>


On one side of the terminal asteel cable up to 4mm can be inserted. Due to the fine threads a high tensile force is created here. Once the cable has been inserted, it can be clamped by tightening the terminal, no special tools are required. This can be done with open-end spanner 13. On the other side a stainless steel bolt m6 can be screwed in, but one can also screw in agaffel. Everything can be combined with this as long as the wire isM6is.

Show moreToon Minder
