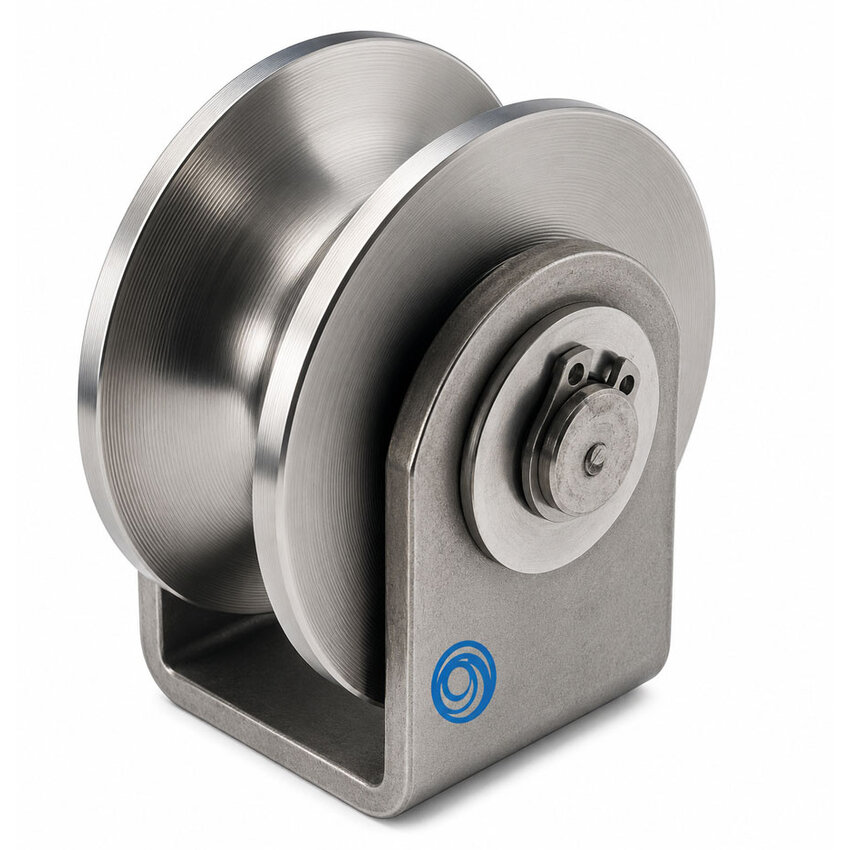

Stainless Steel Pulley 48mm with U-Bracket

Solid stainless steel pulley with bearing for smooth guiding of rope and wire rope

This high-quality stainless steel pulley with U-bracket is manufactured from AISI304 stainless steel and features a smooth-running bearing-mounted wheel with a diameter of 48mm. Thanks to the U-shaped bracket, this pulley is ideal as a guide wheel, running wheel or cable pulley for a wide range of indoor and outdoor applications.

This pulley is commonly used for:

• Sliding doors and gate systems
• Cable and rope guiding
• Marine and watersport applications
• Industrial and machinery applications
• Lifting systems and guide rails
• Pipe track and rail systems

• Material: AISI304 stainless steel
• Wheel diameter: 48mm
• Bearing-mounted design
• Solid heavy-duty quality
• Suitable for indoor and outdoor use
• Smooth and quiet operation

Thanks to the bearing-mounted construction, the wheel rotates smoothly and effortlessly, helping to reduce wear on cable or rope. The U-bracket also provides additional stability under sideways loads.

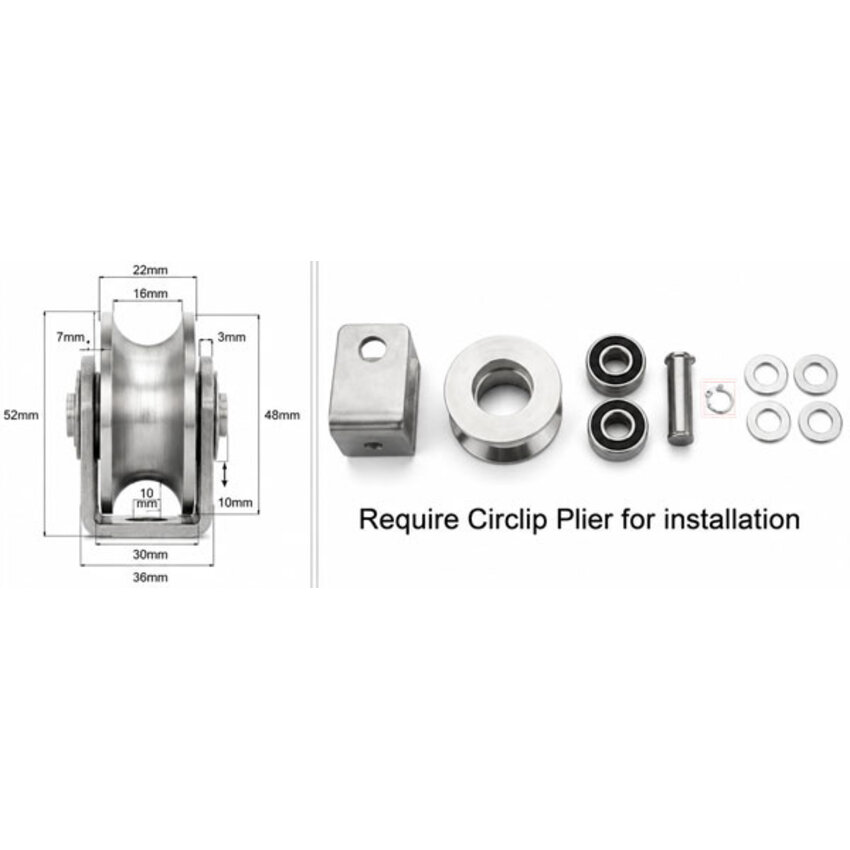

This solid pulley is secured with a retaining clip. A circlip plier / retaining ring plier is therefore required for assembly or disassembly.
The body washers are made from stainless steel 201.

Frequently asked questions about this stainless steel pulley

What cable diameter can I use with this pulley?
This pulley can be used with wire rope up to 2mm and with rope up to approximately 12mm.

What is the distance between the wheel and the bracket for mounting a bolt?
This distance is 12mm, providing sufficient space for mounting with a standard hex bolt.

Is this pulley suitable for outdoor use?
Yes, thanks to the use of AISI304 stainless steel, this pulley offers good resistance against moisture and weather conditions.

Can this pulley be used as a running wheel for a sliding door?
Yes, this pulley is regularly used as a supporting wheel or guide wheel for lightweight sliding door constructions.
