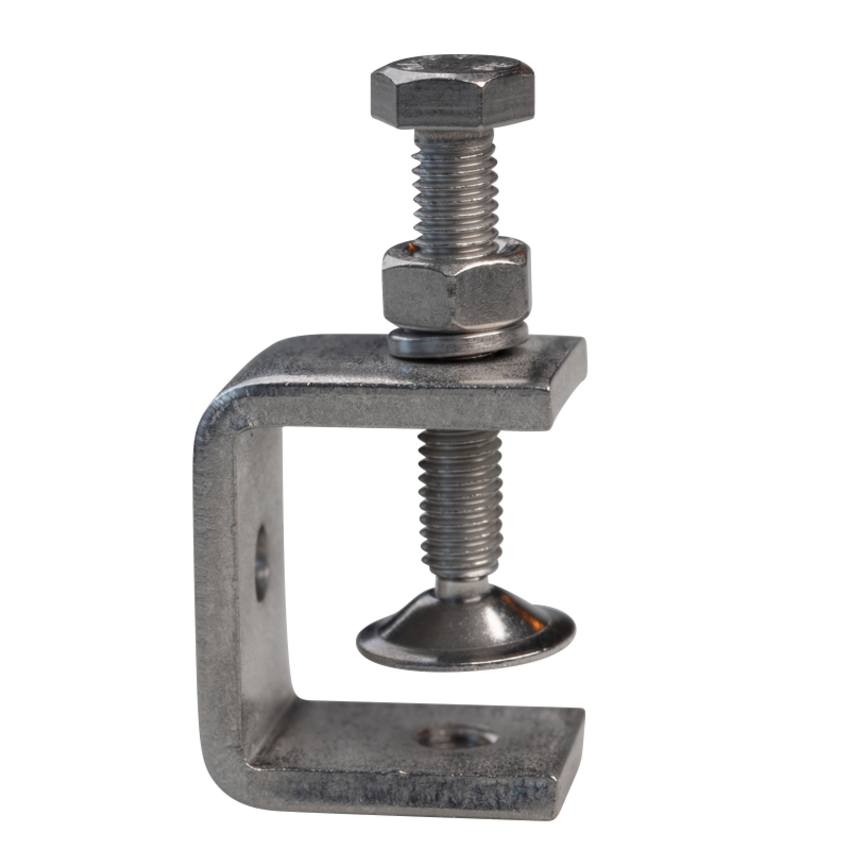

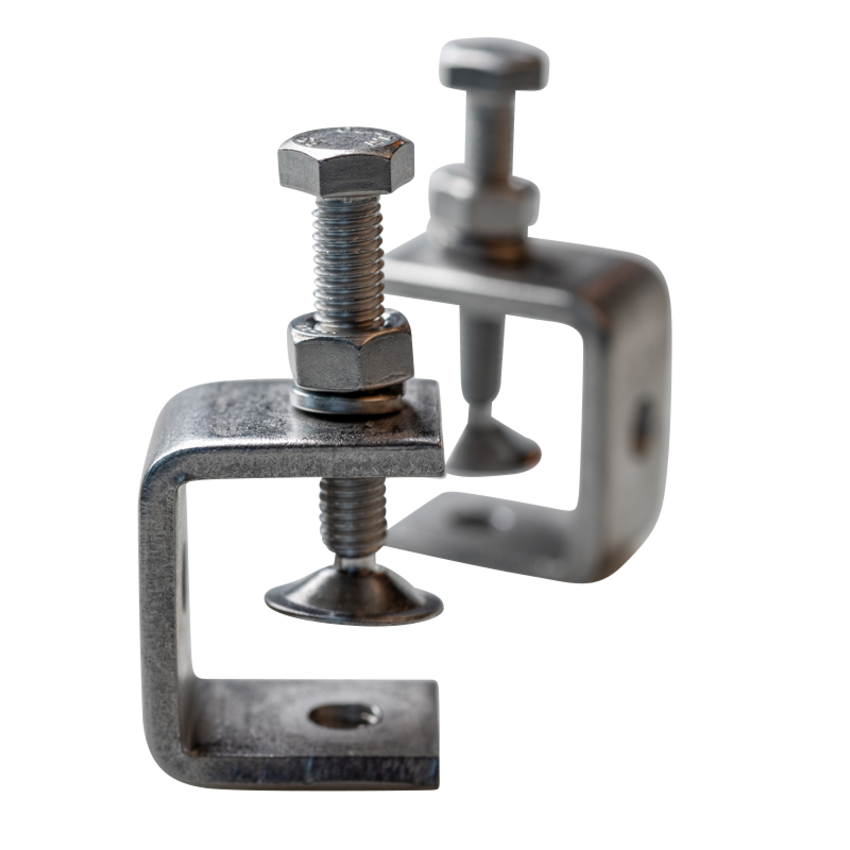

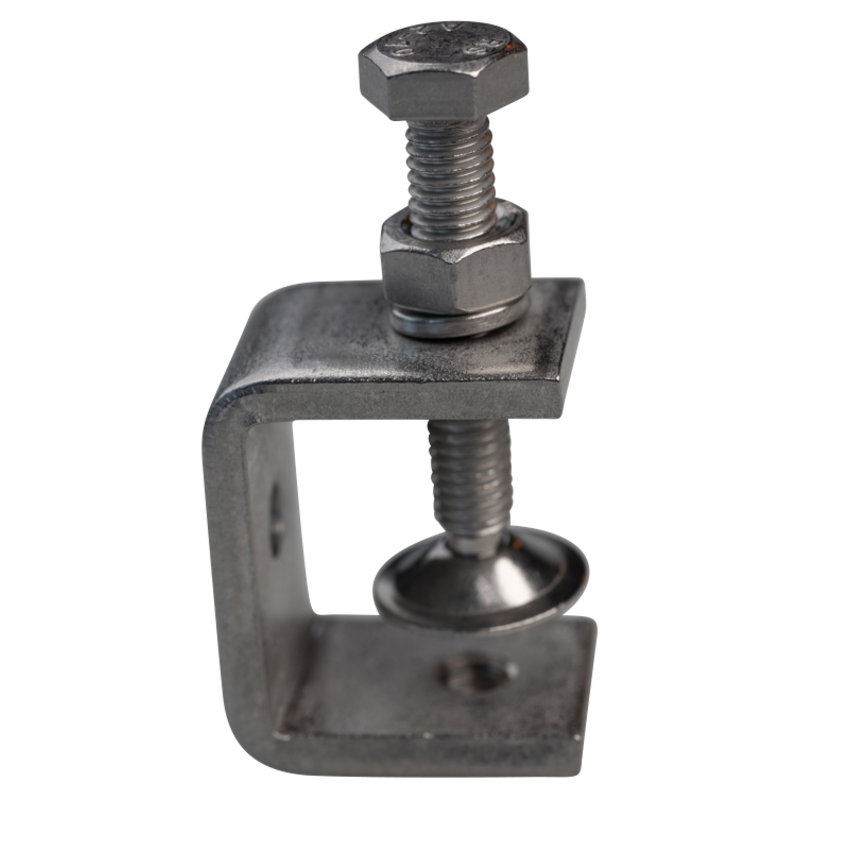

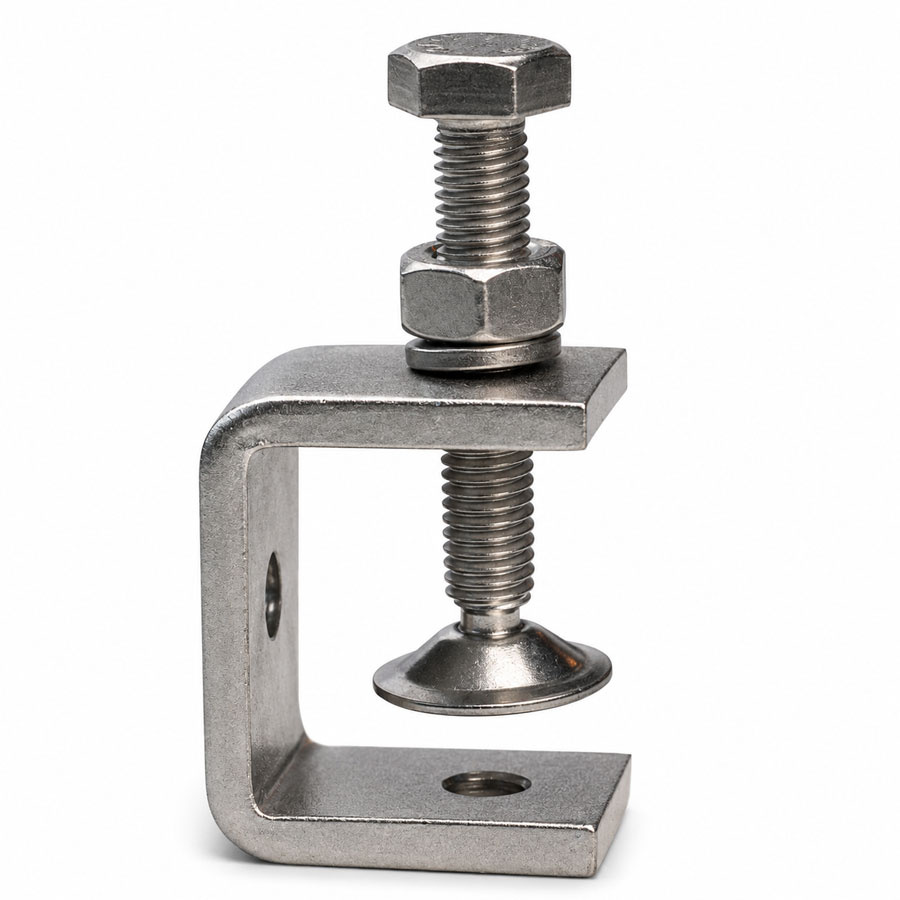

crew Clamp M8 Stainless Steel

Looking for a mounting solution without drilling? This is the perfect solution. The screw clamp can easily be placed on an H-profile, warehouse shelving, or, for example, a ventilation system. The stainless steel clamp shell ensures a strong connection. Fine thread - Smooth surface.

This clamp is also available with an M6 ring screw.

Properties

Material: 304 Stainless Steel
Max. Clamping Diameter: 26 mm
Min. Clamping Diameter: 5 mm
M8 Bolt
Plate Diameter: 4 mm
2x M8 Mounting Option
Lock Nut

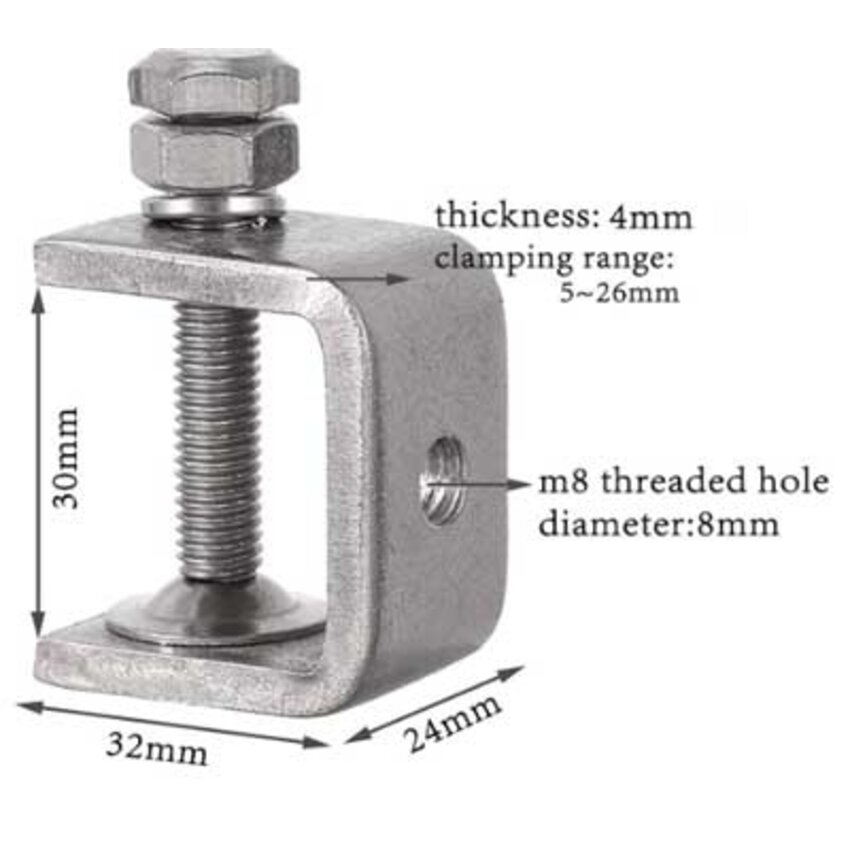

Please note: the drawing is based on a screw clamp with a nut. The rest of the dimensions are the same.
