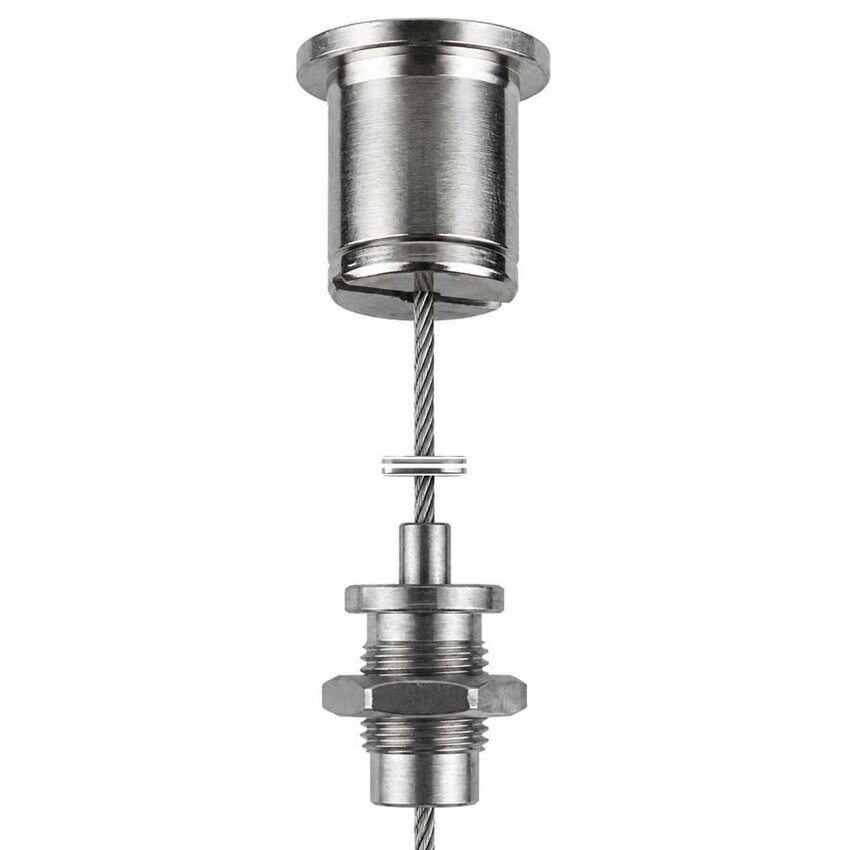

Shelf suspension system kit

Looking for a system that allows you to quickly suspend a shelf? This suspension system for shelves is an ideal solution. The system is easy to install and can be adjusted in height with one hand. A ball-locking gripper system allows each suspension point to support a load of up to 10 kg.

Suspension system 1 contains the following:

• 1x Ceiling gripper
• 1x Steel cable 1.5 mm with end stop - 1 metre
• 1x Adjustable shelf gripper

The shelf suspension system has the following specifications:

• Can also be used vertically!
• Load capacity up to 10 kg
• With Easy Grip system
• Equipped with locking screw
• For suspended floating shelves
• Suspension without drilling
• Suitable for both solid wood and laminated wood.

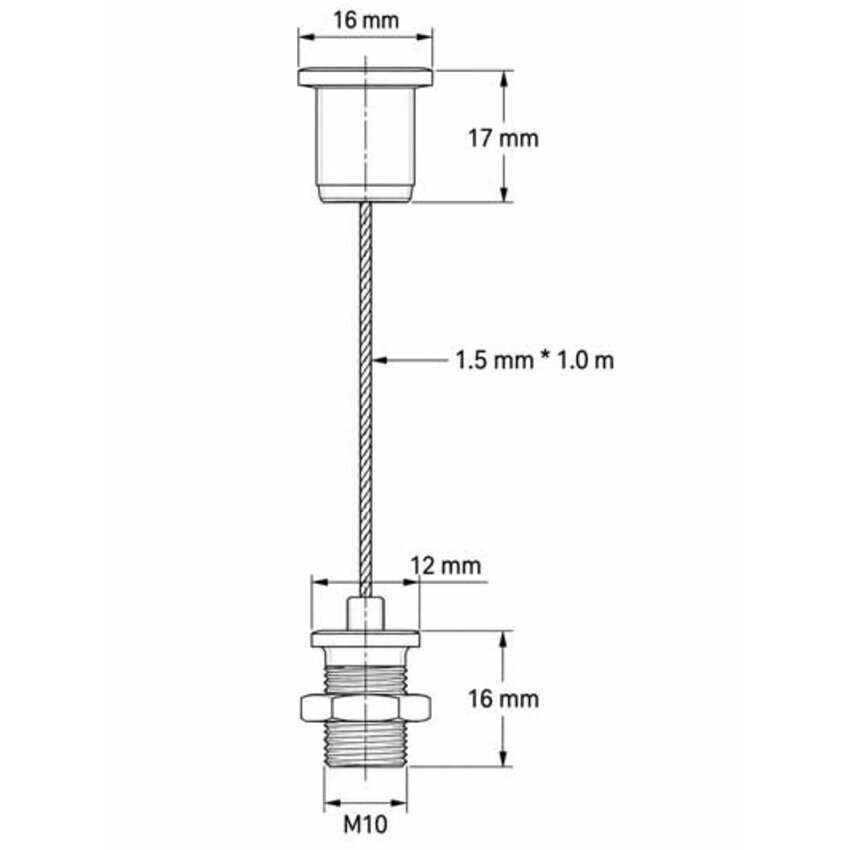

Dimensions top x bottom x height: 12 x 10 x 16 mm

With this system, you can create a floating suspended shelf in virtually any environment. The steel cable gives the installation a clean, industrial appearance. Hanging a shelf is quick and simple and easier than using concealed shelf brackets.

• Drill a 10 mm hole - This is easy to do with a wood drill bit. If required, first drill a pilot hole using a smaller drill bit.
• Insert the suspension system through the shelf. The upper section will rest on top of the wood.
• Now tighten the nut underneath the shelf onto the system.
• Insert the cable into the gripper until the shelf hangs level. Use a spirit level or a level app on your phone.
• You can secure the shelf to the wall, but this is not essential.
