Snap shackle with eye 12 x 52 x 9 mm stainless steel A4

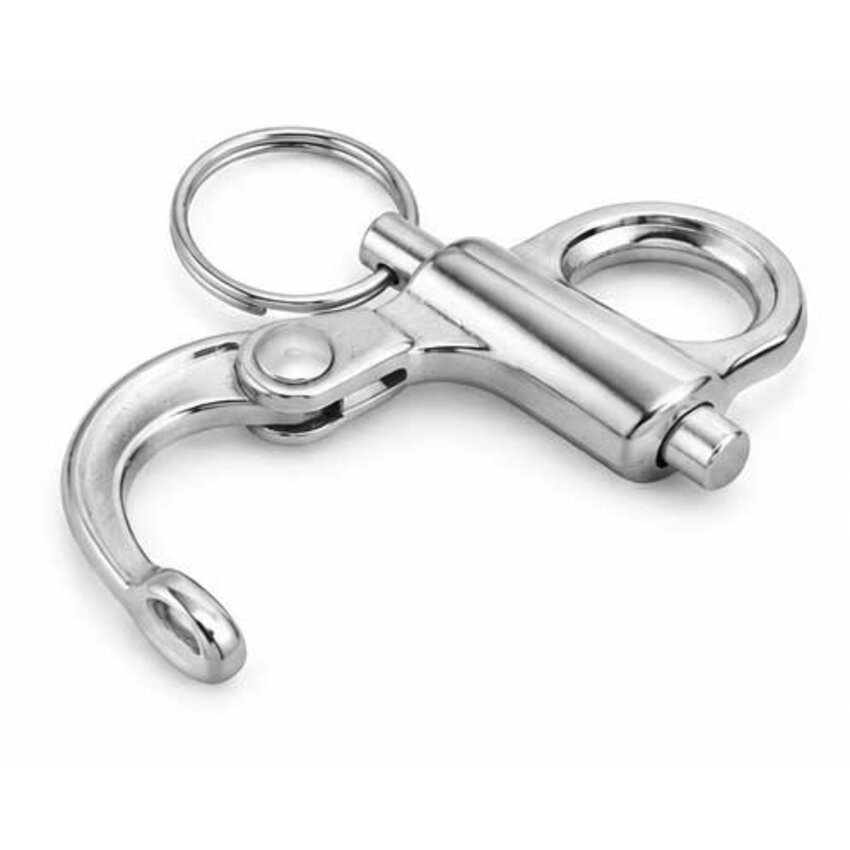

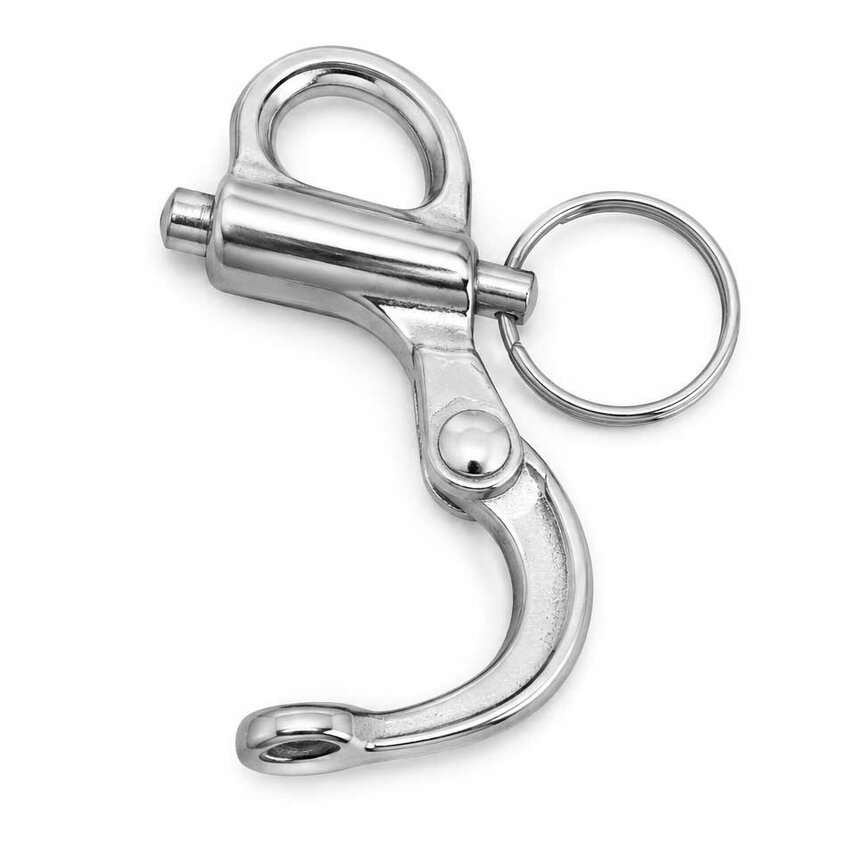

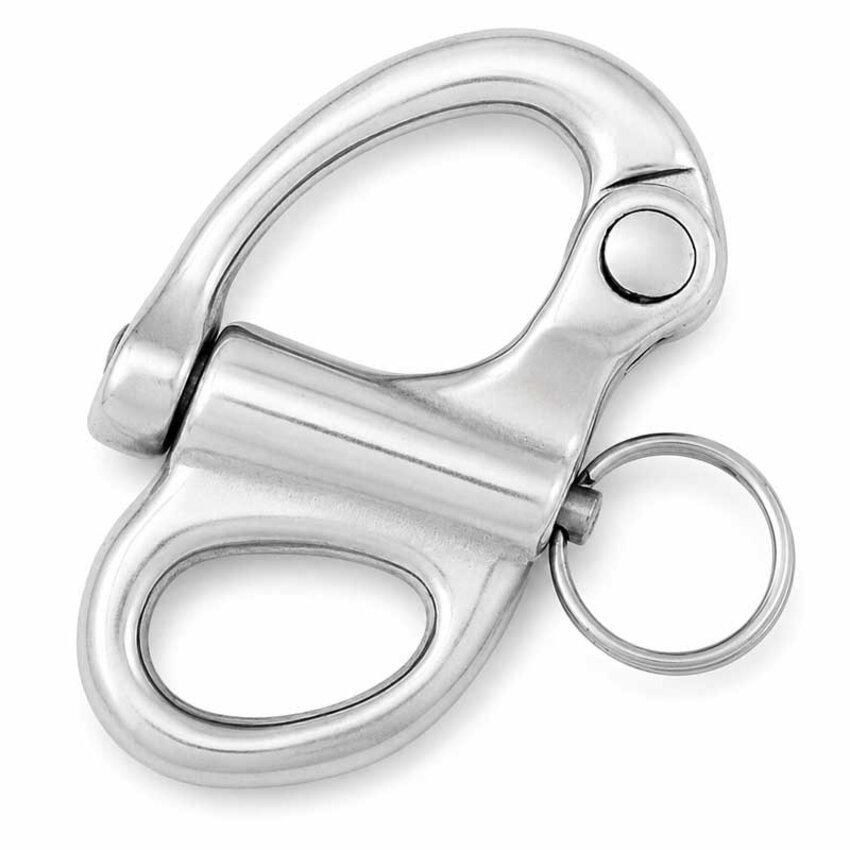

This stainless steel hook with eye can easily be opened and closed with one hand. Ideal for quickly attaching and releasing a rope or steel cable. The hook is 12 mm wide, 52 mm long and has an internal dimension of 9 mm.

Pull the ring to open the shackle quickly. The specified working load is 450 kg and the breaking load is 1,100 kg. The main body is made from AISI 316 stainless steel and the springs are made from AISI 304 stainless steel.

Key features

• Dimensions: 12 mm wide, 52 mm long and an internal dimension of 9 mm.
• Material: AISI 316 stainless steel body with AISI 304 stainless steel springs.
• Operation: opens quickly using the integrated pull ring.
• Load capacity: working load of 450 kg and breaking load of 1,100 kg.
• Packaging: supplied as one snap shackle with eye.

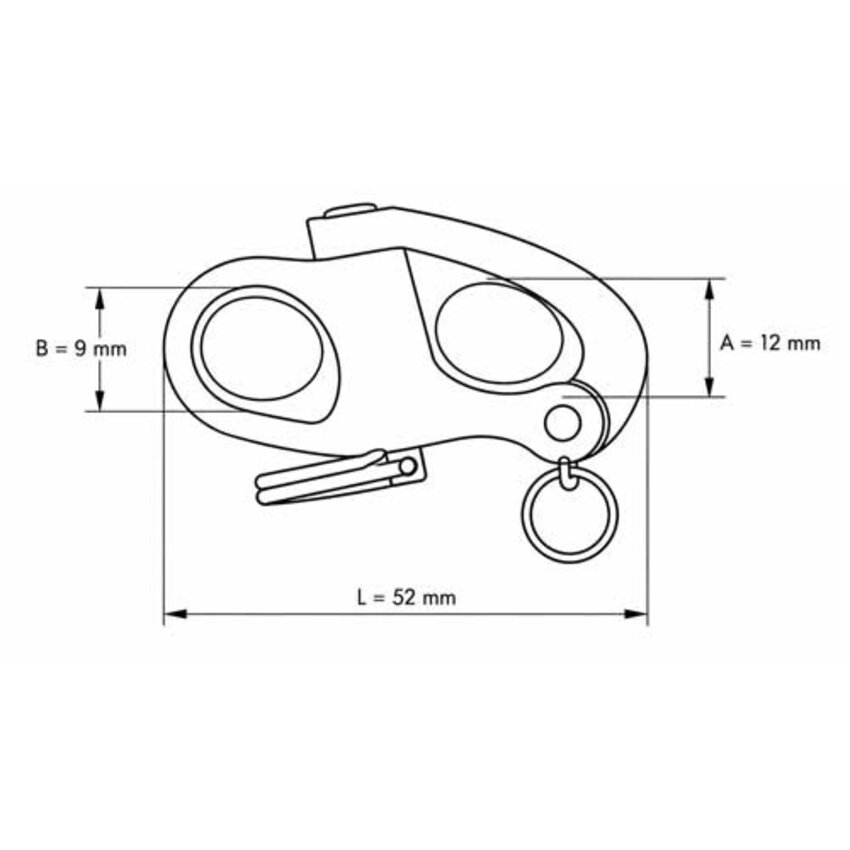

Dimensions:

Applications

This snap shackle with eye is intended for applications where a spinnaker, halyard or similar connection needs to be released quickly. Always check that the dimensions and specified load ratings are suitable for your application.

Use and operation

Attach the snap shackle to the desired attachment point and check that the mechanism is fully closed. Pull the ring to open the shackle quickly. Before each use, inspect the snap shackle for wear, deformation and correct spring operation.

Please note: the stated technical dimensions are approximate and may vary slightly between production batches.

Frequently asked questions

What is a snap shackle with eye?

A snap shackle with eye is a metal fastener that can be opened quickly using a pull ring. This model is designed for attaching and releasing a spinnaker, halyard or similar connection.

What are the dimensions of this snap shackle?

The snap shackle is 12 mm wide and 52 mm long. The specified internal dimension is 9 mm.

What material is the snap shackle made from?

The main body is made from AISI 316 stainless steel, also known as A4 stainless steel. The springs are made from AISI 304 stainless steel.

What is the working load of this snap shackle?

The specified working load is 450 kg. The stated breaking load is 1,100 kg.

How do you open the snap shackle?

Open the snap shackle by pulling the integrated ring. This activates the quick-release mechanism.

What is this snap shackle suitable for?

The snap shackle is intended for a spinnaker, halyard or similar application where quick release is required. Always check that the dimensions and load ratings are suitable for your application.

Is the snap shackle reusable?

The snap shackle can be reused as long as the mechanism functions correctly. Before each use, check for visible wear, deformation or damage.

How many snap shackles are supplied?

You will receive one snap shackle with eye. The product number is 82970005204.
