Stainless Steel Pipe Clamp 30–37 mm, Two-Piece, with M8 Mounting Thread

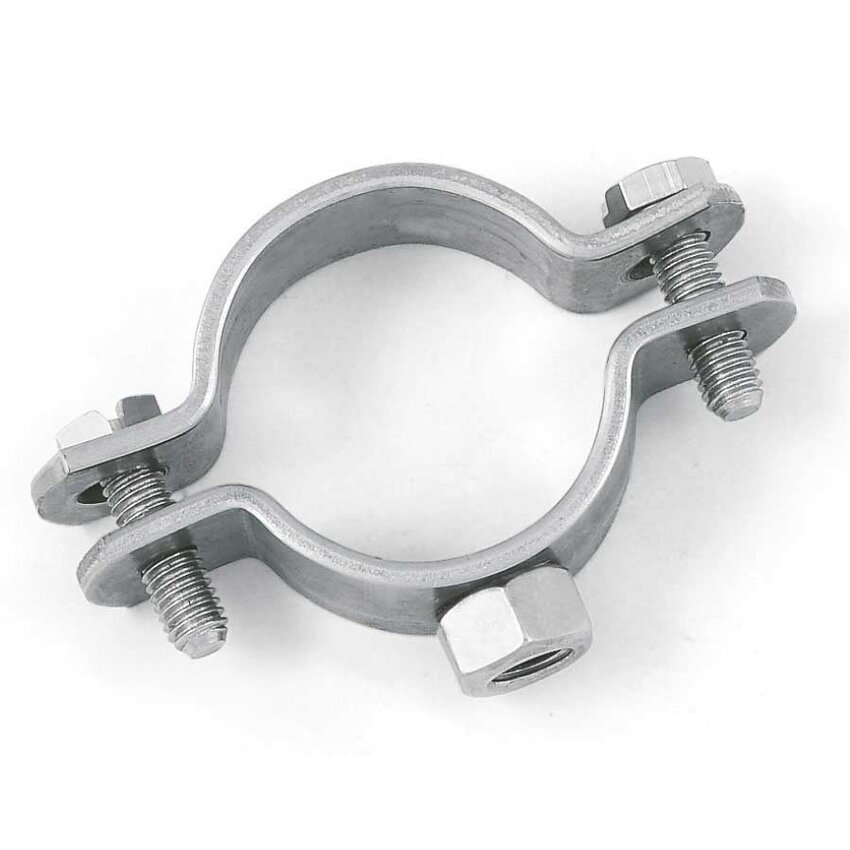

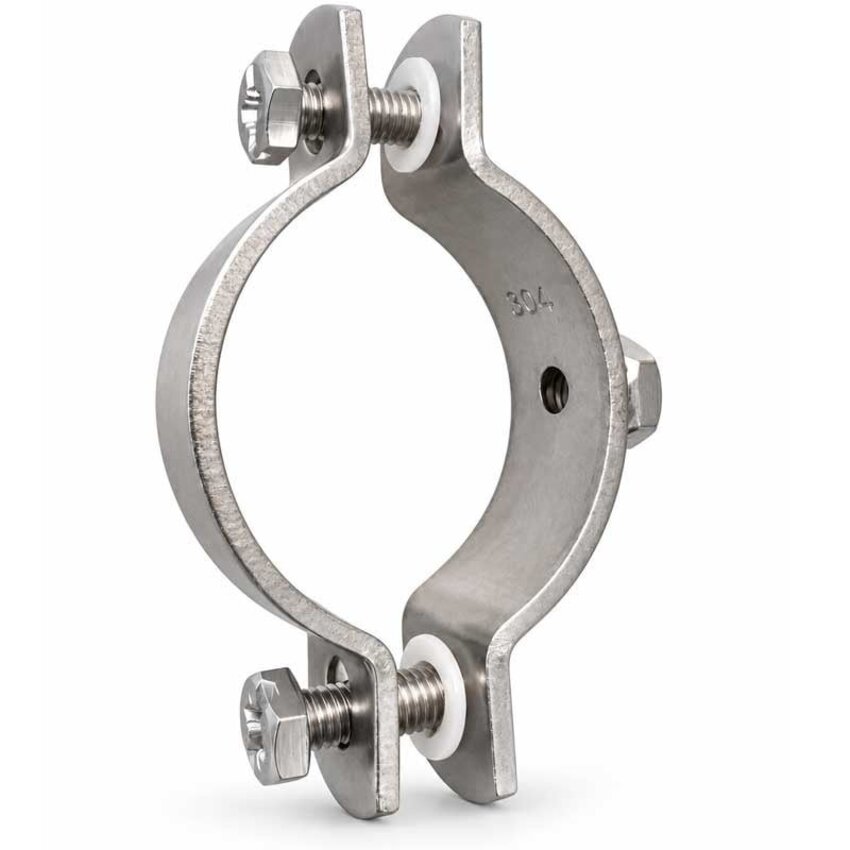

This two-piece stainless steel pipe clamp 30–37 mm is designed for securing pipes with an outside diameter of 30 to 37 mm. The clamp consists of two formed sections manufactured from stainless steel 1.4301 (AISI 304).

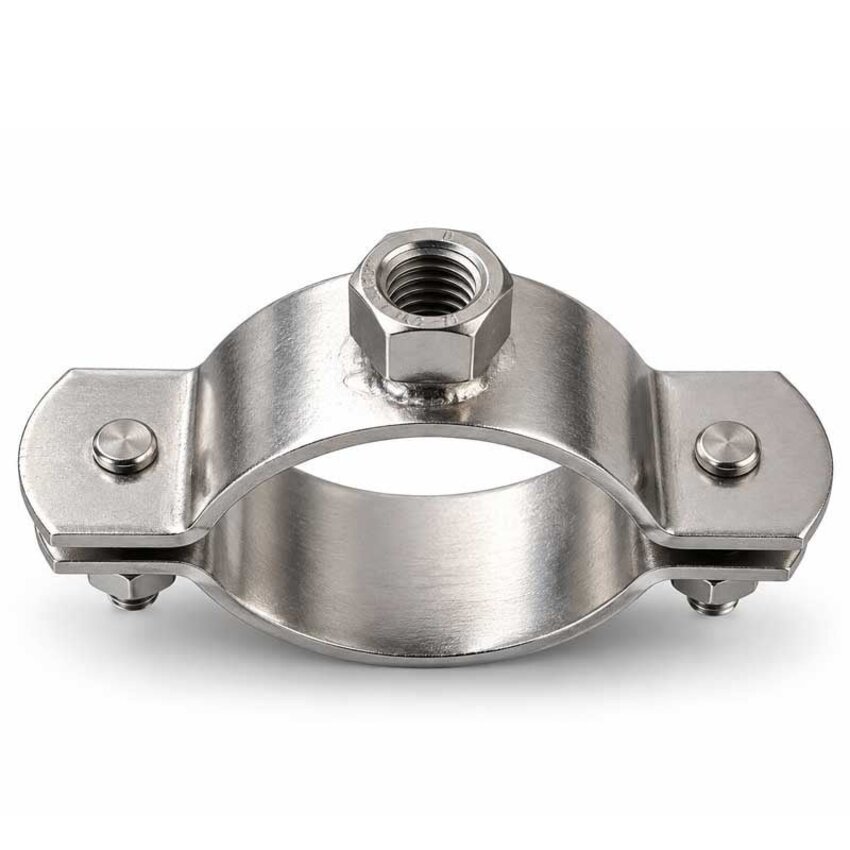

The pipe clamp is fitted with a welded M8 threaded mounting nut and is supplied with two screws for joining the clamp sections. Stainless steel 1.4301 is suitable for many indoor and outdoor applications.

Key Features

• Clamping range: suitable for pipes with an outside diameter of 30 to 37 mm.
• Material: manufactured from stainless steel 1.4301 (AISI 304).
• Design: two-piece pipe clamp with welded M8 threaded mounting nut.
• Assembly: bolted connection including two clamp screws.
• Application: suitable for securing medium-size water, heating, compressed air and technical pipework.

Applications

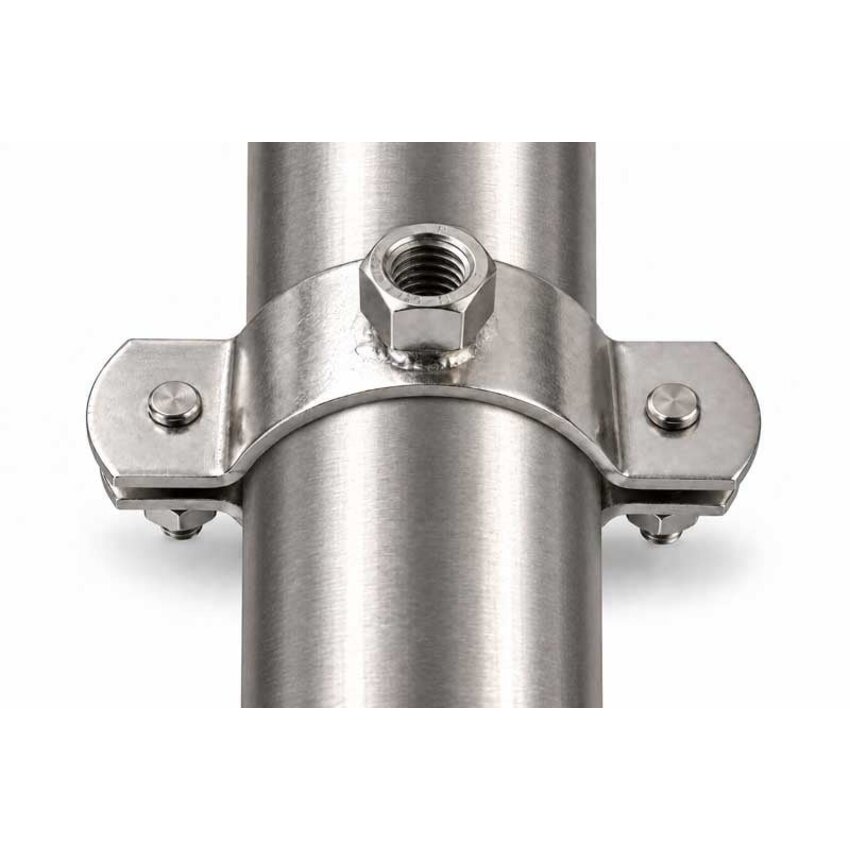

This stainless steel pipe clamp is suitable for securing pipes and tubing with an outside diameter of 30–37 mm. Typical applications include stainless steel and steel pipework, water and heating lines, compressed air systems, utility pipework and technical installations in plant rooms, workshops and commercial buildings. This size is suitable for many 1" steel pipes (DN 25) with an outside diameter of approximately 33.7 mm. Always select the clamp by the actual measured outside diameter of the pipe. The welded M8 mounting nut allows the clamp to be fixed to a suitable M8 threaded rod or another compatible mounting point.

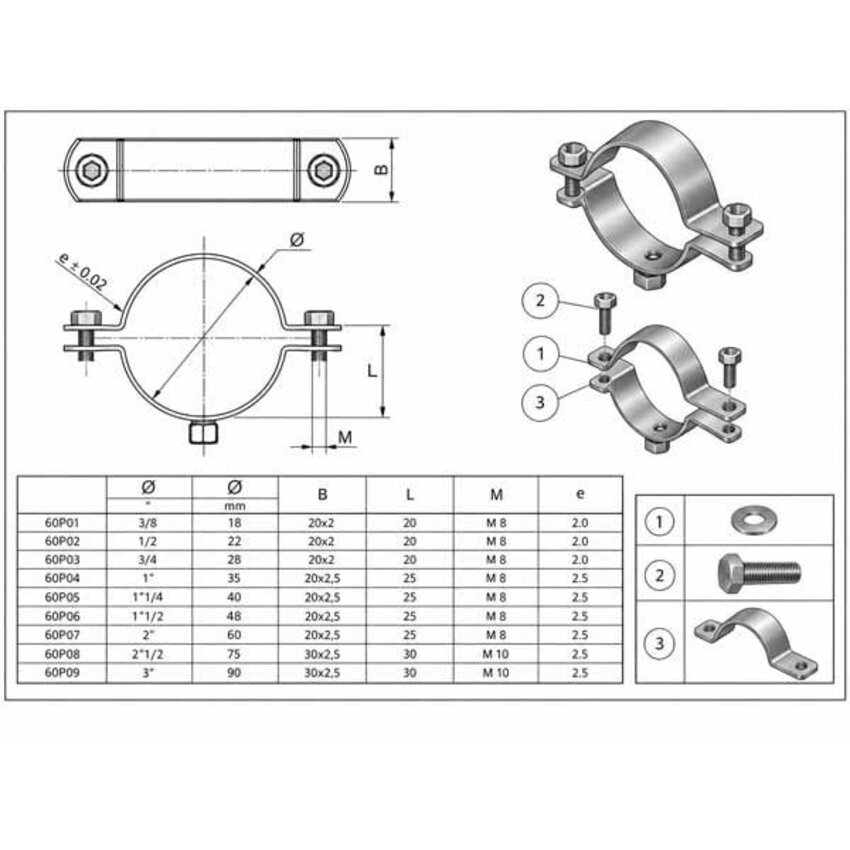

Dimensions

How is the two-piece pipe clamp installed?

1. Measure the outside diameter of the pipe and check that it is between 30 and 37 mm.
2. Position the two clamp sections around the pipe.
3. Join the two sections using the supplied screws.
4. Mount the pipe clamp using the M8 threaded mounting nut and a suitable M8 threaded rod or compatible fixing point.

Frequently Asked Questions

Is this clamp suitable for 1" steel pipe?

This size is suitable for many 1" steel pipes (DN 25) with an outside diameter of approximately 33.7 mm. The 1" designation is a nominal pipe size, so always check the actual outside diameter before ordering.

What applications is the 30–37 mm pipe clamp suitable for?

This size is commonly suitable for water and heating pipework, compressed air lines, stainless steel and steel pipes, and general technical installations. The pipe must have an outside diameter between 30 and 37 mm.

What thread size does the mounting nut have?

This version is fitted with a welded M8 threaded mounting nut. For direct installation, use a suitable M8 threaded rod or another compatible fixing with an M8 male thread.

Are the clamp screws included?

Yes, the two screws used to join the clamp sections are included. Separate nuts are not required for these screws because the corresponding threads are integrated into the clamp.

Is this stainless steel pipe clamp suitable for outdoor use?

Yes, the clamp is manufactured from stainless steel 1.4301 (AISI 304) and is suitable for many indoor and outdoor applications. For highly saline or chemically aggressive environments, check whether this stainless steel grade is suitable for the specific conditions.

Need Advice?

Not sure whether this stainless steel pipe clamp 30–37 mm is suitable for your pipework? Measure the actual outside diameter of the pipe and check that an M8 mounting connection suits your installation. Our customer service team will be happy to help you select the correct pipe clamp.
