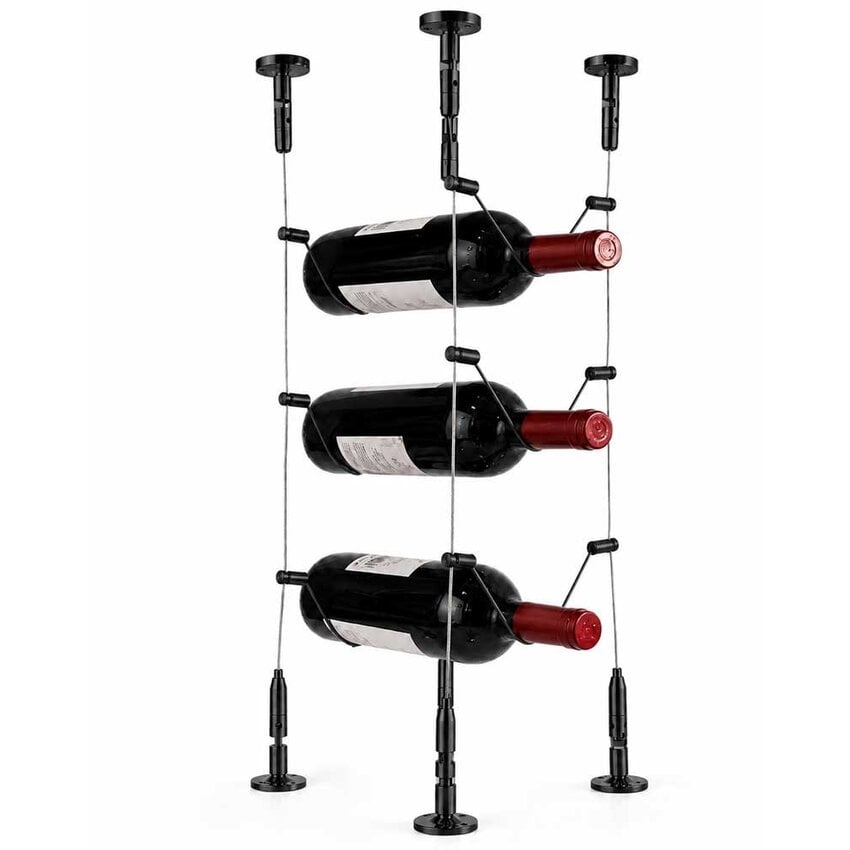

Black Wine Storage System for 8 Bottles

This black wine storage system holds 8 wine bottles and combines black steel cable with black-finished components. The system is designed for neat storage and attractive presentation of wine bottles.

Thanks to the flexible dimensions, the system can be adapted to the available space. Individual components can be ordered separately via the links below.

Key Features

• Ceiling mounting: 4 black ceiling rosettes with cable gripper.
• Floor mounting: 4 black floor rosettes with fixing nipple.

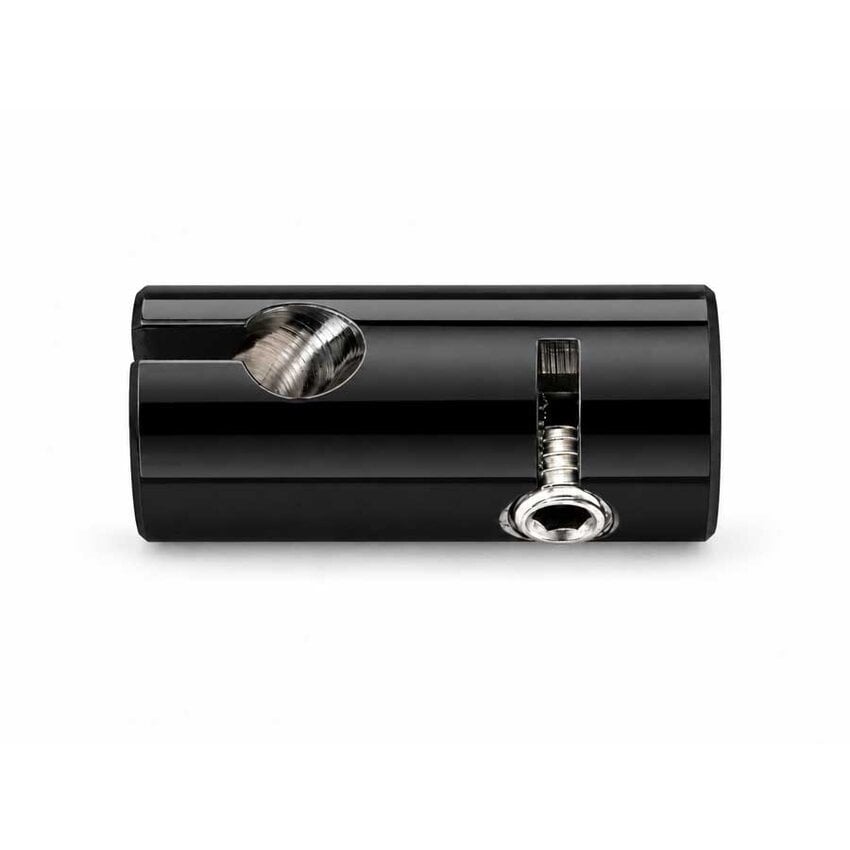

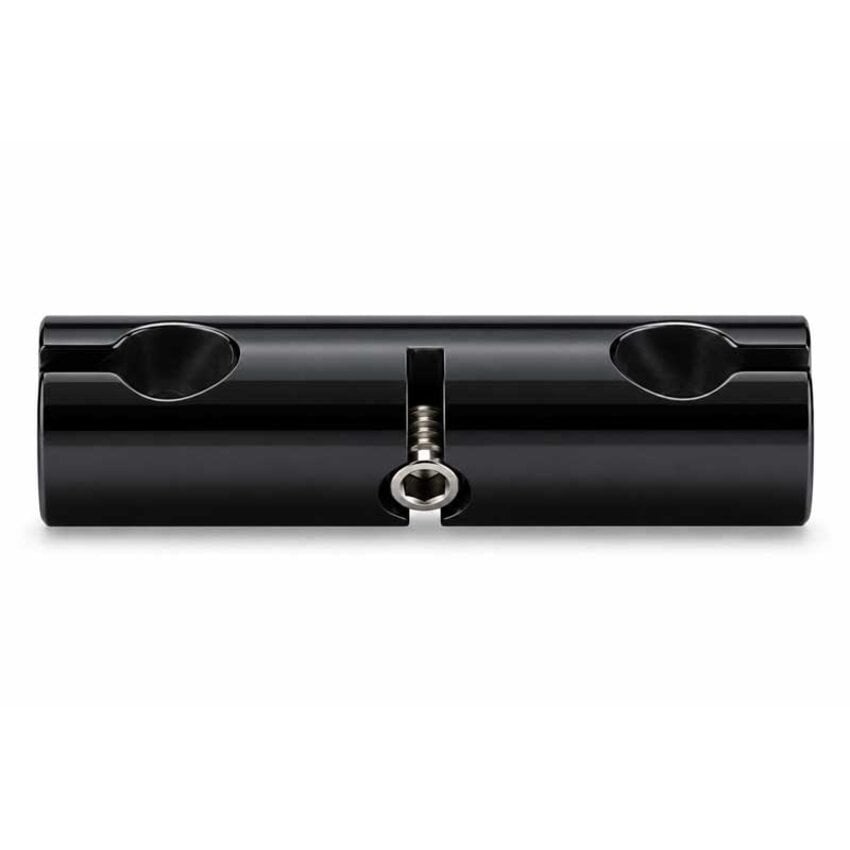

• Connectors: 32 black single connectors, also available as a double connector.
• Cables with end stops: 16 steel cables with end stops; a 20 cm steel cable with 2 end stops is also available separately.
• Black steel cable: 4 cables of 3.5 metres; for additional cable, view our black steel cables.

Applications

The wine storage system is suitable for neat storage and presentation of up to 8 wine bottles. The black finish provides a clean and modern appearance.

Installation Instructions for the Steel Cable Wine Rack

1. First determine the position of the wine rack.
   Decide where the four vertical steel cables will run. Make sure there is a sufficiently strong mounting surface both above and below for secure installation of the rosettes.
2. Mark the lower fixing points.
   Carefully measure the positions of the four floor rosettes. Check that the left and right spacing is equal before drilling.
3. Transfer the fixing points to the ceiling.
   Preferably use a laser or plumb line. The ceiling rosettes must be positioned directly above the floor rosettes so that the steel cables run straight and vertically.
4. Install the ceiling and floor rosettes.
   Secure the rosettes firmly using screws and plugs suitable for the mounting surface. Do not mount them only into a thin ceiling panel without a sufficiently strong supporting structure behind it.
5. Install the four steel cables.
   Insert the cables into the ceiling rosettes and allow them to run downwards. Then secure them to the floor rosettes. Do not cut off any excess cable yet.
6. Tension the cables evenly.
   Tension each steel cable until it runs straight and neatly. Do not overtension the cables. Check again that all four steel cables are straight and parallel.
7. Install the first connectors.
   Start at the bottom and fit the holders/connectors to the four steel cables. Tighten them only lightly at first so that their position can still be adjusted.
8. Use one wine bottle to determine the correct position.
   Place one bottle in the system and adjust the holders until the bottle rests securely. Check the height and spacing before installing the remaining holders.
9. Install the remaining holders.
   Work from bottom to top and leave enough space between the bottles so they can be inserted and removed easily. Regularly check with a spirit level or tape measure that all components remain properly aligned.
10. Check the complete system before filling it.
    Fully tighten all fixings and connectors. Check the cable tension and carefully test each bottle position. Only then cut off any excess steel cable.

How does the wine storage system work?

The ceiling and floor rosettes form the fixing points for the vertical steel cables. The connectors and short steel cables with end stops are used to create the individual bottle support positions. By ordering separate components, parts can be replaced or the system can be further adapted.

Frequently Asked Questions

How many wine bottles can I place in this system?

The wine storage system is configured for 8 wine bottles. The set includes the rosettes, connectors and steel cables required for this version.

Can I order individual components separately?

Yes. Ceiling rosettes, floor rosettes, connectors and steel cable components are available separately. The links in the key features section take you directly to the relevant products.

Can I order additional black steel cable?

Yes. Black steel cable is available separately. Choose a version that matches the components and dimensions of your wine storage system.

Can this wine rack be expanded?

Yes. The shown starter set forms the basis of the system. We can help you equip a complete wall or wine cellar with this system. Send us your photos and dimensions and we can prepare a suitable quotation. Ceiling rosettes, floor rosettes, connectors and steel cable components are also available separately. The links in the key features section take you directly to the relevant products.

Need advice?

Would you like to know which individual components you need for your wine storage system? Please contact our customer service team. We will be happy to help you choose the correct components and configuration.
