Black DIN 741 stainless steel wire rope clip, 3 mm, AISI 316

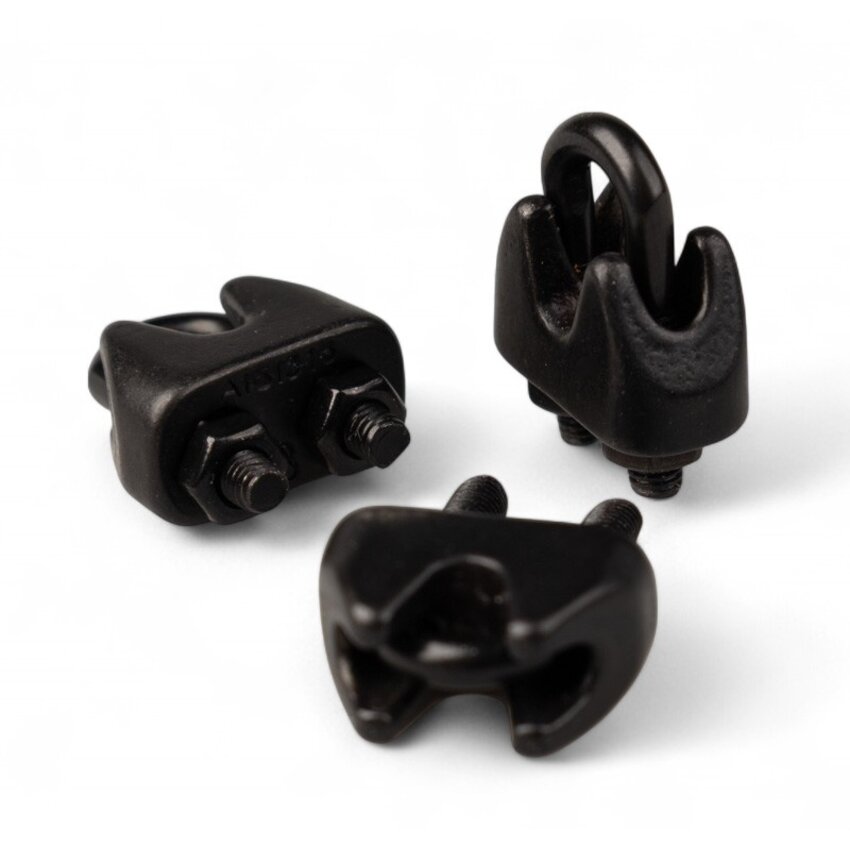

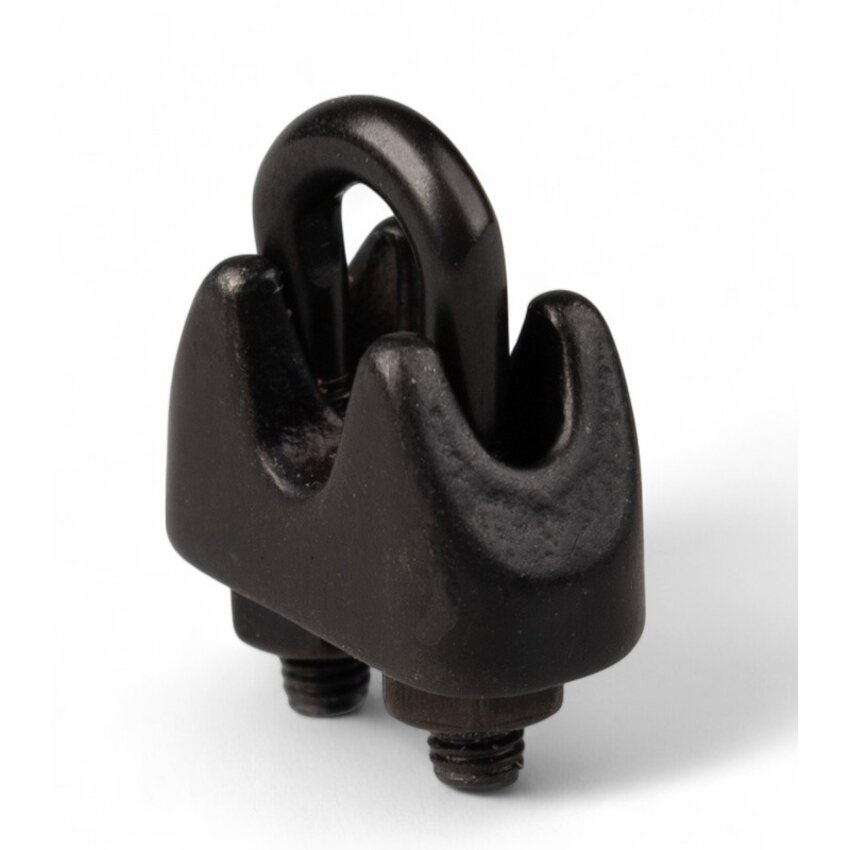

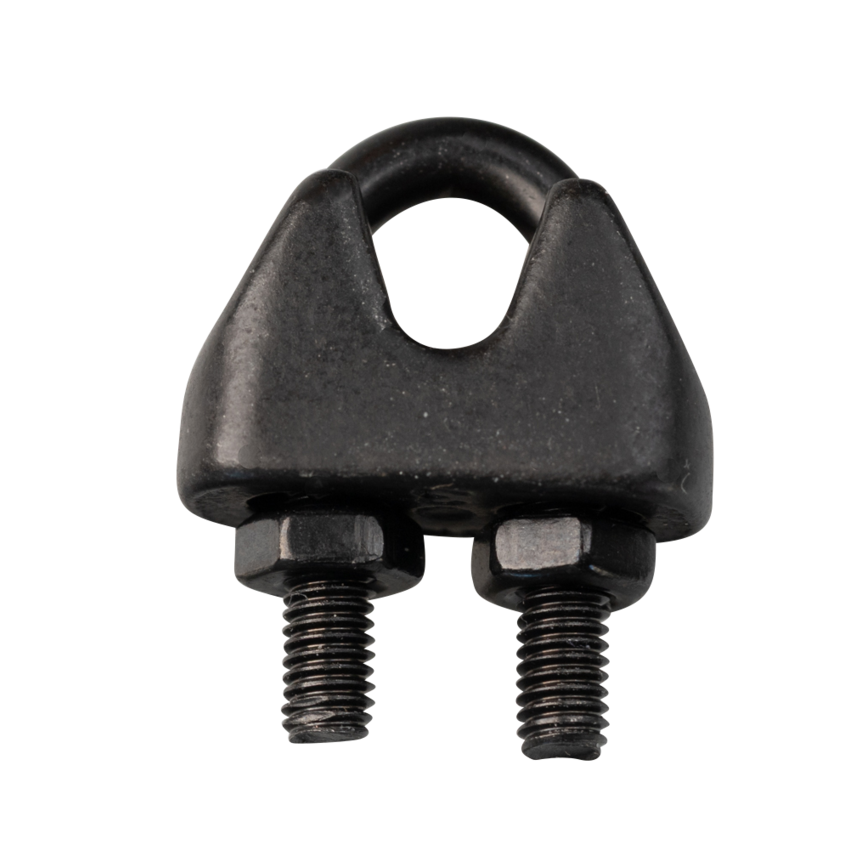

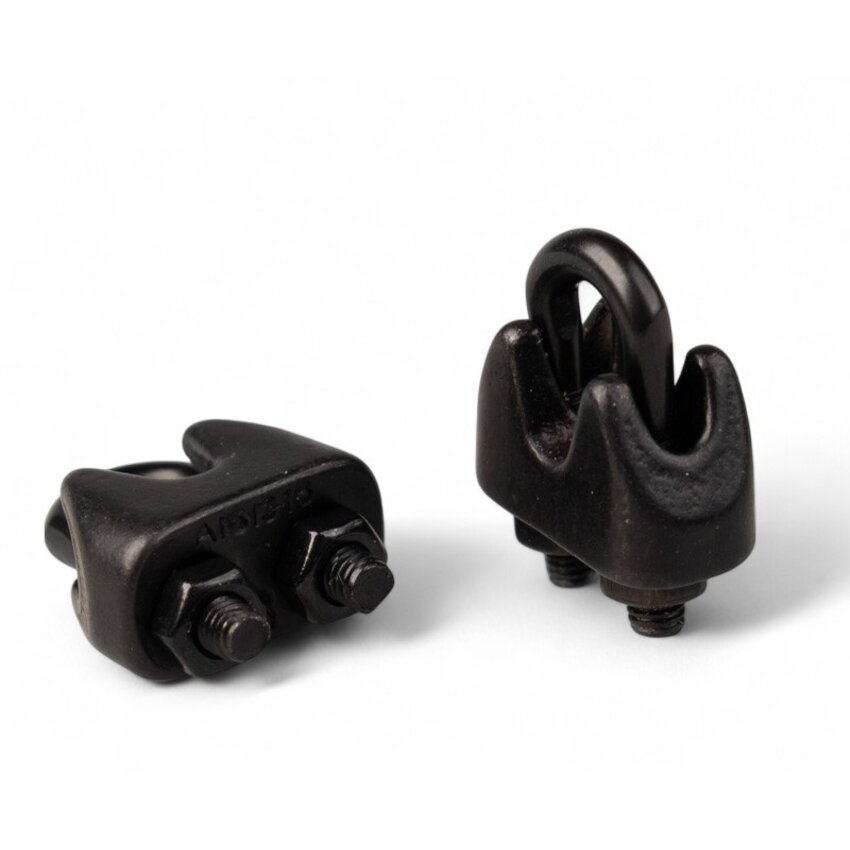

Looking to buy a black stainless steel wire rope clip for 3 mm cable? This black wire rope clamp is made from corrosion-resistant AISI 316 stainless steel, complies with DIN 741 and is designed for securing wire rope with a diameter of 3 mm. It consists of a U-bolt, a saddle and two nuts. Tightening the nuts evenly clamps the wire rope securely between the U-bolt and the saddle. The black coating gives the clip a discreet appearance against dark cables, façades and lighting installations.

Specifications

• Article number: 8248403DBK
• Barcode: 6090350975985
• Suitable wire rope diameter: 3 mm
• Material: AISI 316 stainless steel
• Standard: DIN 741
• Construction: U-bolt, saddle and two nuts
• Finish: black coating
• Sales unit: one piece

Applications

This black stainless steel wire rope clip can be used to create a loop or removable end connection in matching 3 mm stainless steel wire rope. It is especially suitable for the supporting wire rope used to hang festoon lighting, outdoor string lights, patio lights, party lights and other decorative lighting. The black finish also provides a neat, less visible connection for garden projects, events and hospitality terraces. When installing string or festoon lights, always follow the lighting manufacturer's mounting instructions and use the clip only with suitable 3 mm wire rope.

Combine the black wire rope clip, for example, with:

• Stainless steel wire rope 3 mm – 20 metre bundle
• Stainless steel wire rope 3 mm – 100 metre reel

For best results, use a 3 mm stainless steel wire rope thimble inside the loop. The thimble supports the shape of the loop, provides a more even bend in the wire rope and helps reduce local wear at the eye. For additional information, visit our page about wire rope clips with nuts.

For installation in accordance with DIN 741, position the saddle on the load-bearing part of the wire rope and place the U-bolt over the loose end. Tighten both nuts evenly and inspect the connection regularly. For lifting, hoisting, fall protection, load-bearing applications involving people and other safety-critical uses, only use a complete system that is expressly certified and approved for that purpose.

Need personal advice?

Not sure whether this black 3 mm wire rope clip is suitable for your wire rope, festoon lighting or project? Our team will be happy to advise you personally. Contact us via WhatsApp, email [email protected] or call +31 (0)488 41 01 19.
