DIN 741 stainless steel wire rope clip, 5 mm, AISI 316

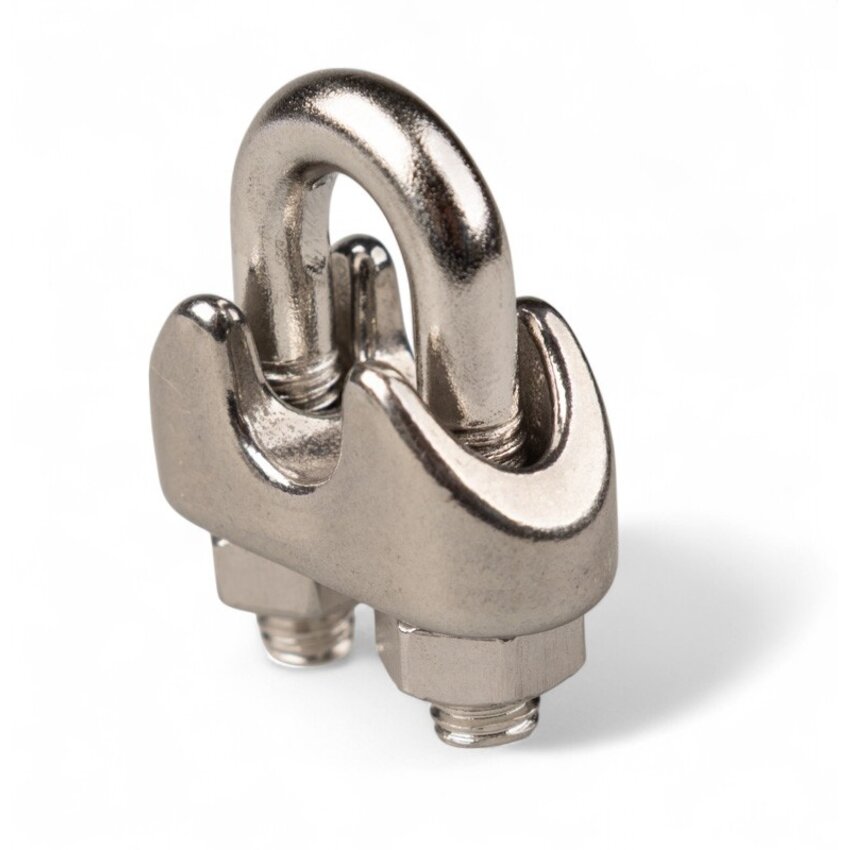

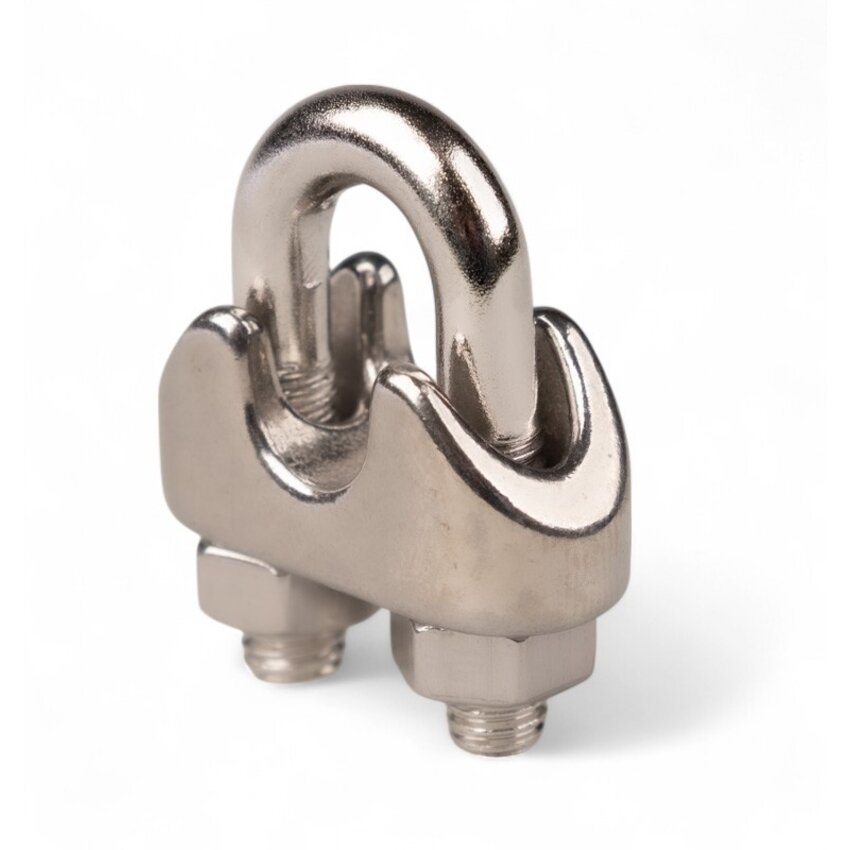

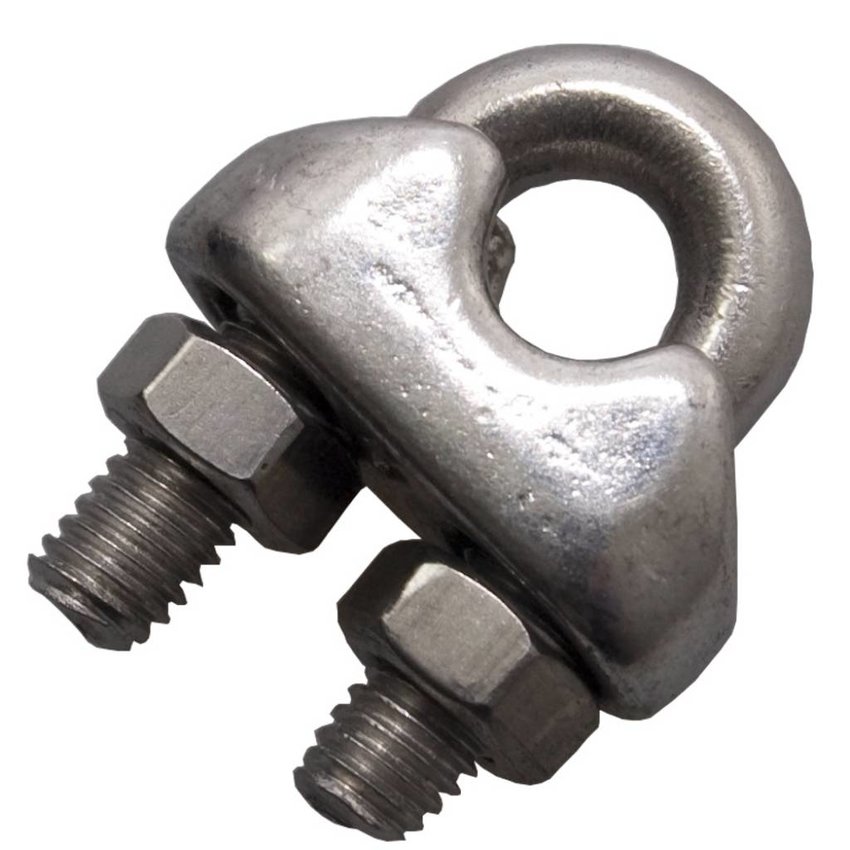

Looking to buy a stainless steel wire rope clip for 5 mm cable? This AISI 316 wire rope clamp complies with DIN 741 and is designed for securing 5 mm stainless steel wire rope. It consists of a U-bolt, a saddle and two nuts. Tightening the nuts evenly clamps the wire rope securely between the U-bolt and the saddle. The corrosion-resistant stainless steel construction makes the clip suitable for indoor and outdoor use, including damp environments.

Specifications

• Article number: 400I5
• Barcode: 7423635046084
• Suitable wire rope diameter: 5 mm
• Material: AISI 316 stainless steel
• Standard: DIN 741
• Construction: U-bolt, saddle and two nuts
• Finish: natural stainless steel
• Sales unit: one piece

Applications

This clip is part of our range of stainless steel wire rope clips and can be used to create a loop or a removable end connection in matching 5 mm stainless steel wire rope. Typical uses include light wire rope assemblies, garden projects, decorative installations and fitting a robust clothesline.

Installing a clothesline made from stainless steel wire rope? This 5 mm wire rope clip can be used to form a loop at the end of the cable, allowing the clothesline to be connected to a suitable fixing point or tensioning system. A stainless steel thimble inside the loop supports the cable and creates a neat finish at the attachment eye.

Combine the wire rope clip, for example, with:

• Stainless steel wire rope 5 mm – 20 metre bundle
• Stainless steel wire rope 5 mm – 100 metre reel

For best results, use a 5 mm stainless steel wire rope thimble inside the loop. The thimble supports the shape of the loop, provides a more even bend in the wire rope and helps reduce local wear at the eye. For additional information, visit our page about wire rope clips with nuts.

For installation in accordance with DIN 741, position the saddle on the load-bearing part of the wire rope and place the U-bolt over the loose end. Tighten both nuts evenly and inspect the connection regularly. For lifting, hoisting, fall protection, load-bearing applications involving people and other safety-critical uses, only use a complete system that is expressly certified and approved for that purpose.

Need personal advice?

Not sure whether this 5 mm wire rope clip is suitable for your wire rope, clothesline or project? Our team will be happy to advise you personally. Contact us via WhatsApp, email [email protected] or call +31 (0)488 41 01 19.
