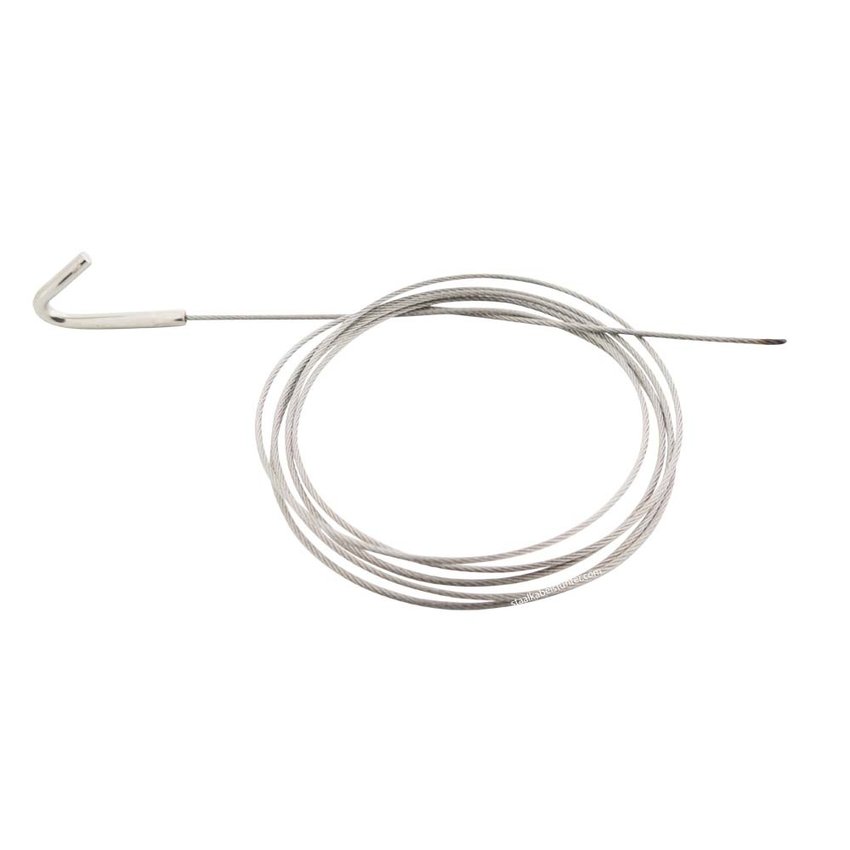

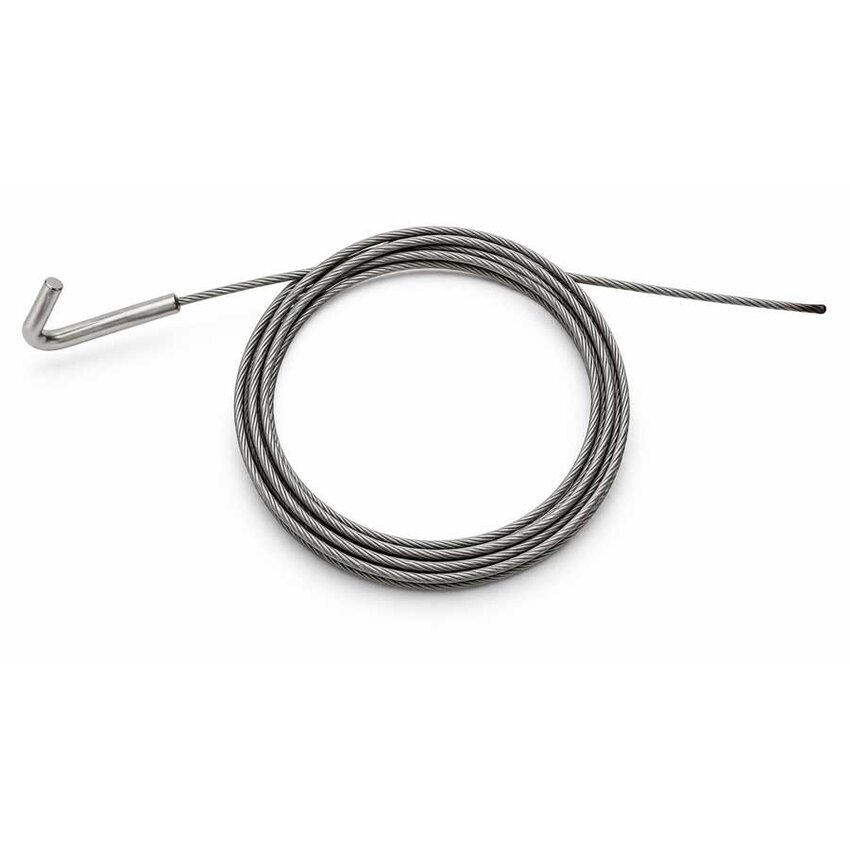

Stainless Steel Wire Rope with J-Hook 1.5 mm – 150 cm

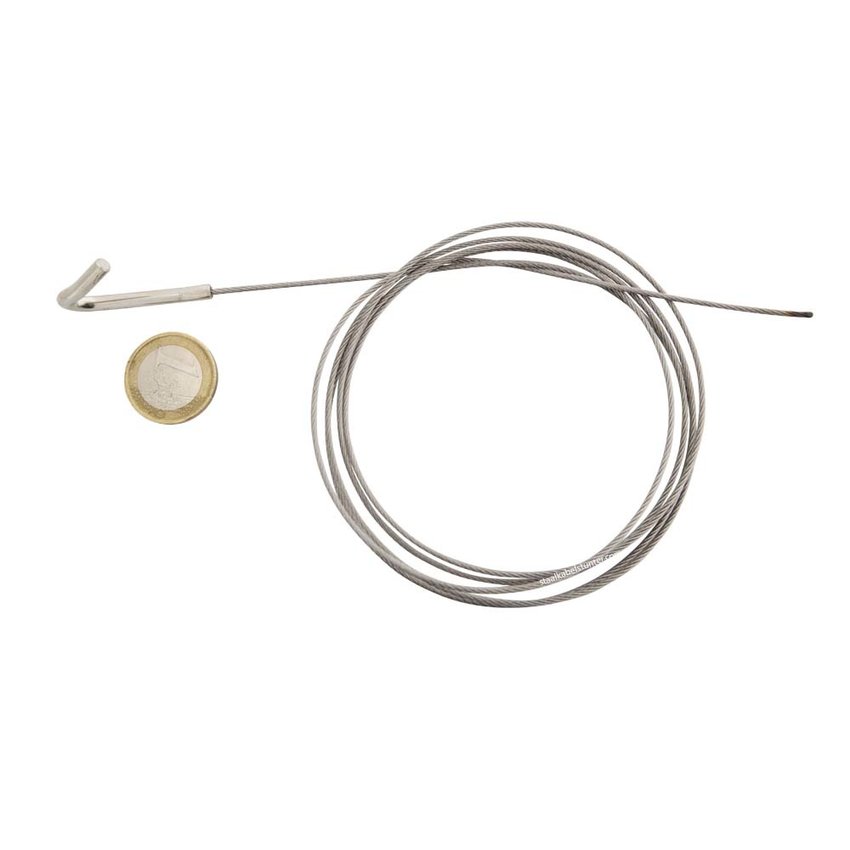

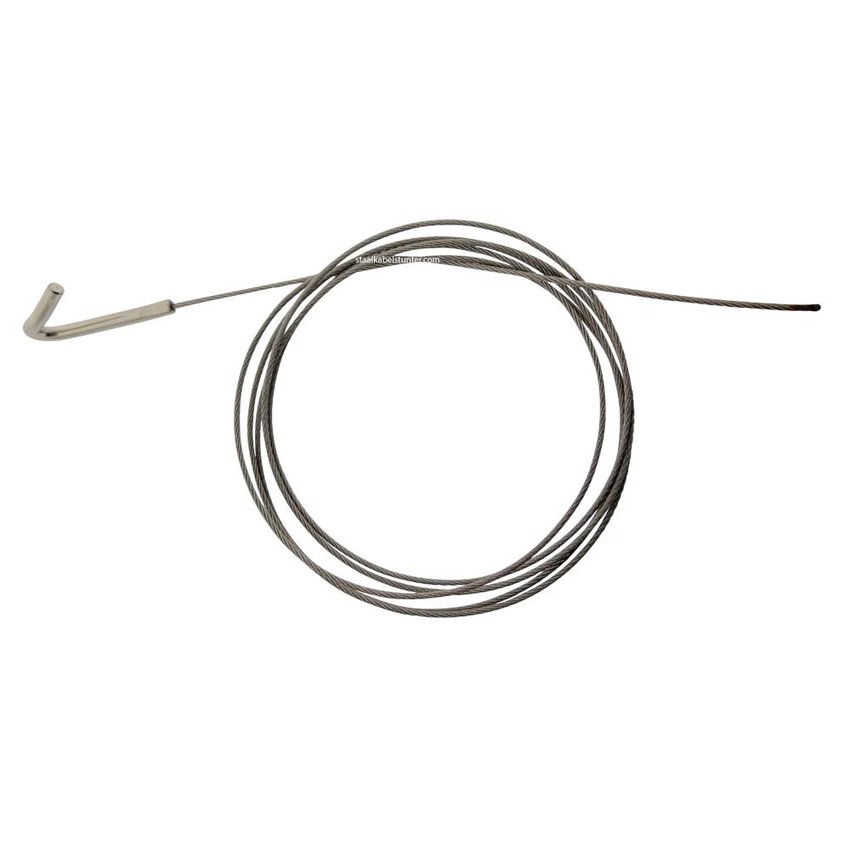

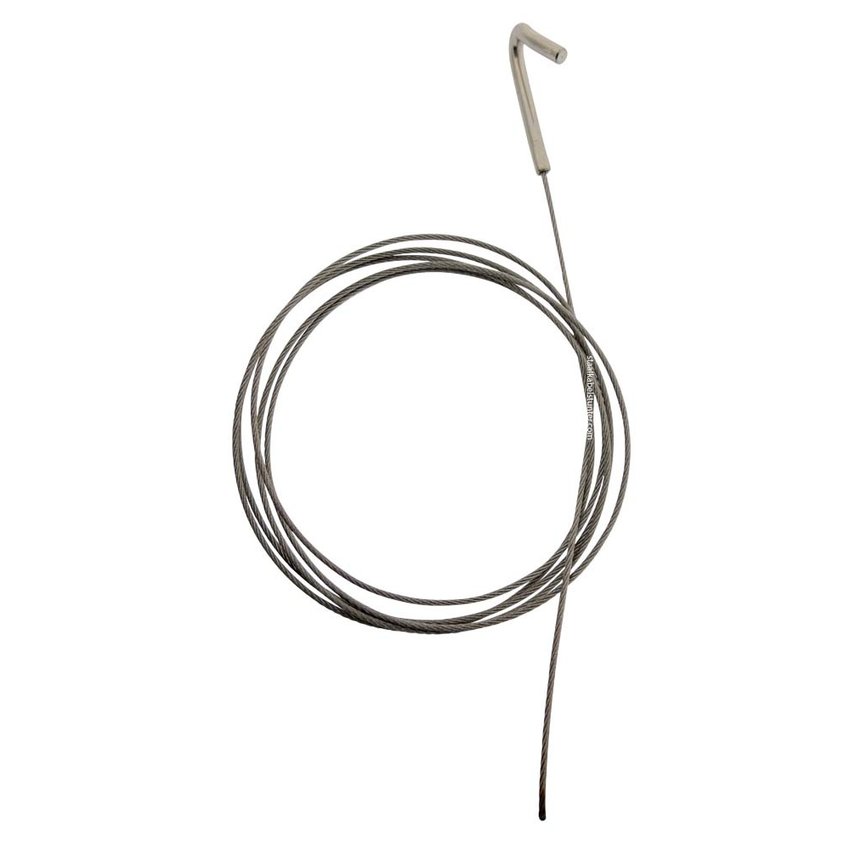

This stainless steel wire rope with J-hook has a rope diameter of 1.5 mm and a length of 150 cm. One end is fitted with a fixed metal J-hook with a material thickness of 4 mm. The other end is a free rope end, intended for use in a suitable suspension or fastening assembly.

Key Features

• Rope diameter: 1.5 mm.
• Rope length: 150 cm.
• J-hook: fixed metal hook with a material thickness of 4 mm.
• Configuration: one end fitted with a J-hook, the other end free.
• Application: component of a suitable suspension or fastening system.

Design and Connection

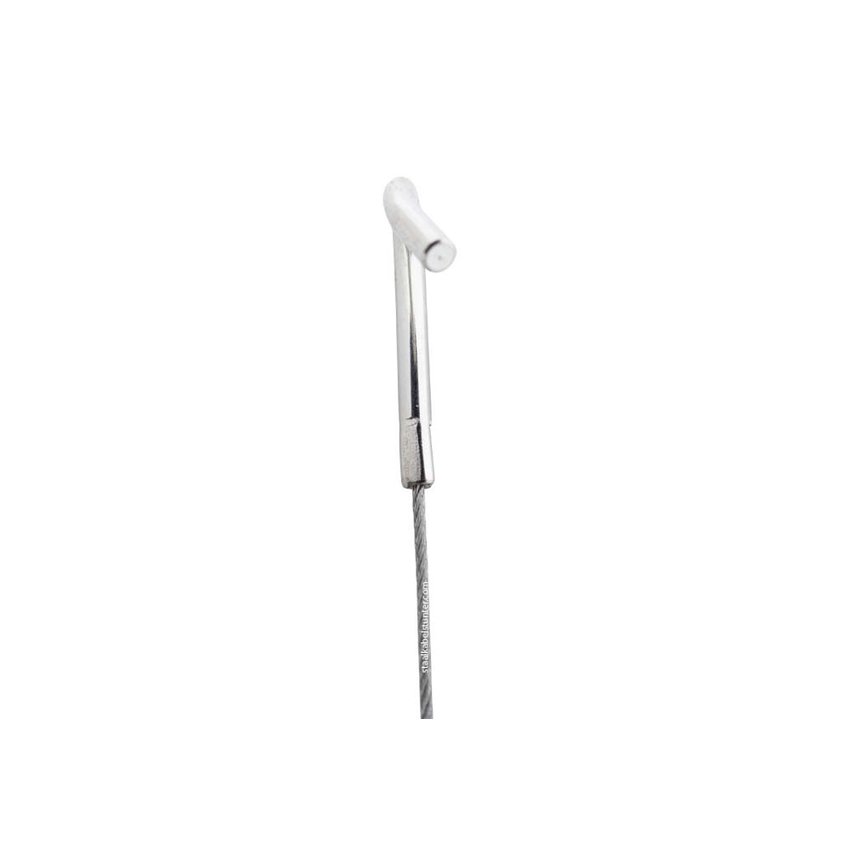

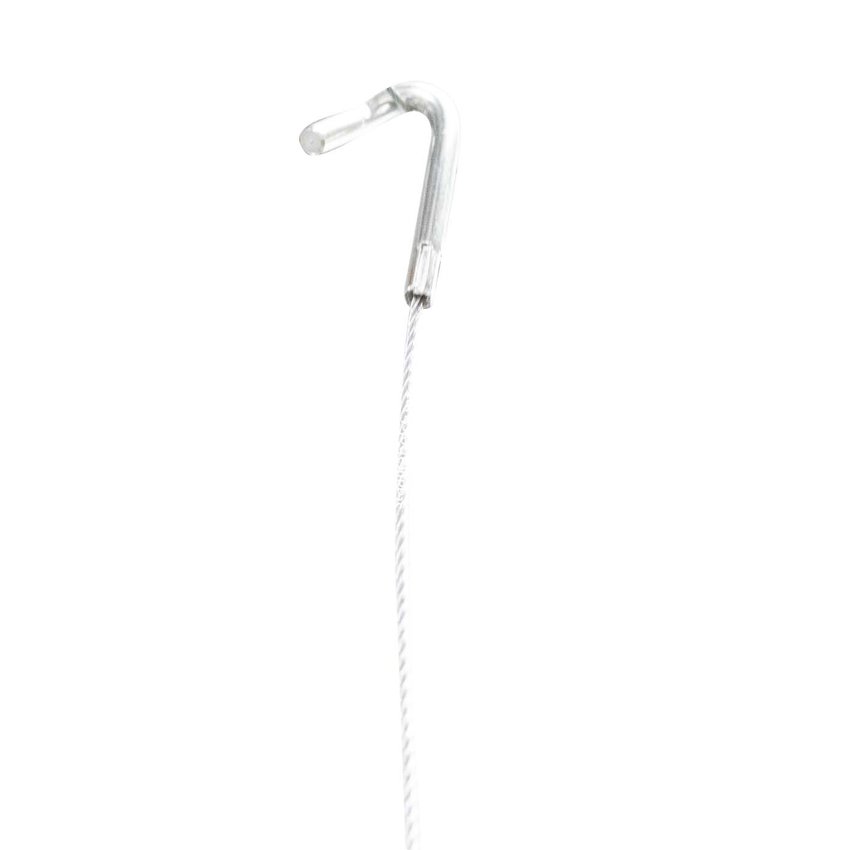

The hook has the distinctive curved J-shape of the original product. It is not a snap hook, S-hook or end stop. The specified 4 mm material thickness refers to the metal hook and must not be confused with the 1.5 mm wire rope diameter.

The free rope end has no second hook, loop or end stop. The method used to secure this end depends on the selected wire rope gripper or clamp.

Applications

This suspension wire rope can be used in suspension or fastening assemblies designed for this type of J-hook and a wire rope diameter of 1.5 mm. For example, it can connect a suitable attachment point to a compatible wire rope fastening system.

Installation and Operation

Attach the fixed J-hook to a suitable attachment point. Secure the free rope end in accordance with the instructions for the selected fastening component. Before installation, check that the hook shape, hook thickness and wire rope diameter are compatible with the other components.

Frequently Asked Questions

What is the difference between this J-hook and a snap hook?

This product features a fixed metal hook with a curved J-shape. A snap hook has a different construction, usually incorporating a closing gate. This J-hook should therefore not be regarded as a snap hook or safety hook.

Is the wire rope 4 mm thick?

No, the wire rope diameter is 1.5 mm. The 4 mm measurement refers exclusively to the material thickness of the J-hook. The rope length is 150 cm.

Does the wire rope have a hook at both ends?

No, there is one fixed J-hook at one end. The other end is free, without a second hook, loop or end stop. The wire rope end is welded to facilitate handling and further processing.

Can I use this wire rope with a cable gripper?

Yes, this wire rope can be combined with cable grippers suitable for a wire rope diameter of 1.5 mm.

Is the wire rope suitable for outdoor use?

The wire rope is made from AISI 304 stainless steel, making outdoor use possible. The hook is made from chrome-plated iron. When selecting the product, take the environmental conditions and the properties of both materials into account.

Need Advice?

Would you like to know whether this stainless steel wire rope with J-hook is suitable for your suspension system? Contact the customer service team at Staalkabelstunter.com. We will be happy to help you check the dimensions, connections and required technical specifications.
