Transmission tower or smoke stack drain tether with steel cable 4mm galvanised - guy line

Artikelnummer: PAKKET20

Transmission tower or smoke stack drain tether with steel cable 4mm galvanised - guy line

Artikelnummer: PAKKET20

0 reviews

20-metre steel cable with accessories for tethering a transmitter mast or stove outlet. Galvanised version. Make guy ropes.

In stock More info

31,95

Ordered before 15:00 on working days? Send directly

  • Free shipping above € 50 (NL)
  • Ordered before 15:00 = shipped immediately
  • All products in stock

Product information

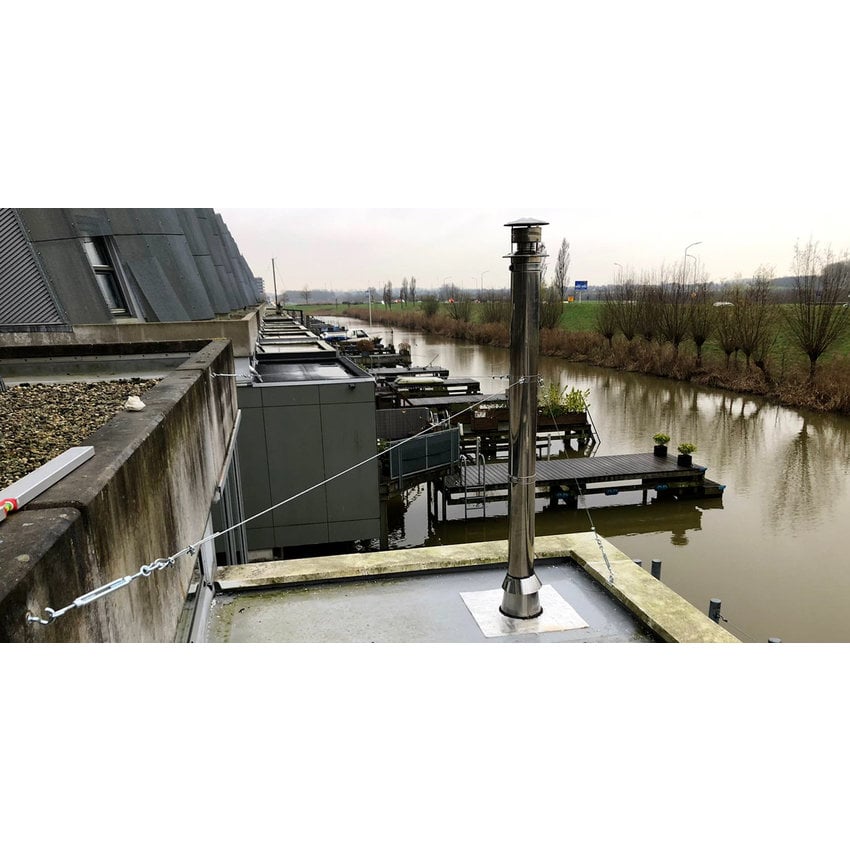

A complete package for supporting extended and/or unstable flue gas systems.

This galvanised cable package contains a galvanised coil of steel cable 4mm thick with a length of 20m. Together with the fasteners supplied, this is enough to make three 6.5m long garden cables. The 4mm thick cable has a so-called 6x12 composition, which means that the cable consists of 6 twisted sets of 12 wires, ideal for tensioning!

Here is a list of the articles in this package:

This package is attached as follows:

  1. Fix the pipe clamp (not included) to your chimney.
  2. Put the 4mm wire rope through the wire clamps to make a loop.
  3. Insert the tubing into the loop and tighten the wire clamp using the nuts until the tubing is secure.
  4. Unscrew the D-shackle and put it through the loop.
  5. Attach the wire tensioner through the eye by passing the threaded rod of the D-shackle.
  6. Attach the Hook and Eye tightener to the bolts or screws fixed in the masonry.

Still not quite sure or have other questions/remarks? Feel free to contact us, we will be happy to help you!

Show moreToon Minder

Specifications

  • Diameter
  • Length
  • MaterialGalvanised
  • Construction6x12+FC
  • Workload60 kg
  • Minimum breaking load300 kg
