Transmission tower or smoke stack drain tether with steel cable 5mm galvanised - guy line-

Artikelnummer: PAKKET21

Transmission tower or smoke stack drain tether with steel cable 5mm galvanised - guy line-

Artikelnummer: PAKKET21

0 reviews

20-metre steel cable with accessories for tethering a transmitter mast or stove outlet. Galvanised version. Make guy ropes.

In stock More info

36,95

Ordered before 15:00 on working days? Send directly

  • Free shipping above € 50 (NL)
  • Ordered before 15:00 = shipped immediately
  • All products in stock

Product information

The guy line kit is the complete kit for supporting unstable and extended flue gas systems.

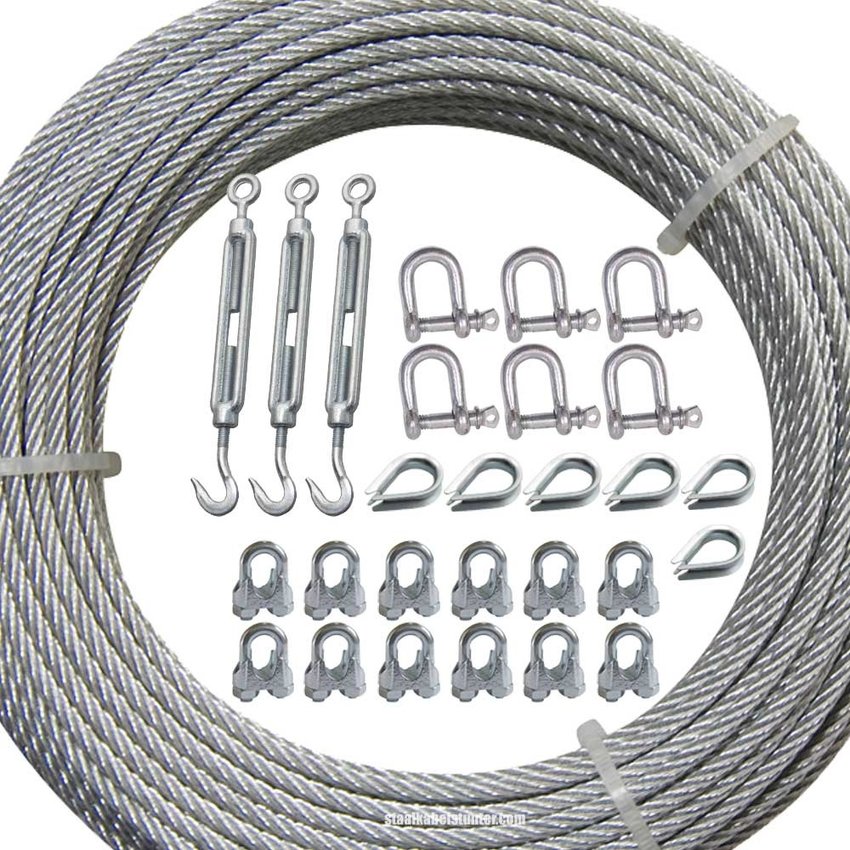

The cable package contains the right amount of fixing materials and matching cable to make 3 x 6.5m guy ropes. The 5mm 20m galvanised steel cable included in this pack has a 6x12 construction. 6 sets of 12 wires braided together, perfect for tensioning!

Here's what's included in the package:

This package is attached as follows:

  1. Secure the pipe clamp (not supplied) to your chimney.
  2. Pass the 5mm wire rope through the wire clamps to create a loop.
  3. Insert the tubing into the loop and tighten the wire clamp using the nuts until the tubing is secure.
  4. Unscrew the D-shackle and put it through the loop.
  5. Attach the wire tensioner through the eye by passing the threaded rod of the D-shackle.
  6. Attach the Hook and Eye tensioner to the bolts or screws fixed in the masonry.

Still not quite sure or have other questions/remarks? Feel free to contact us, we are happy to help!

Show moreToon Minder

Specifications

  • Diameter
  • Length
  • MaterialGalvanised
  • Construction6x12+FC
  • Workload60 kg
  • Minimum breaking load300 kg
