Infrared Panel Mounting System

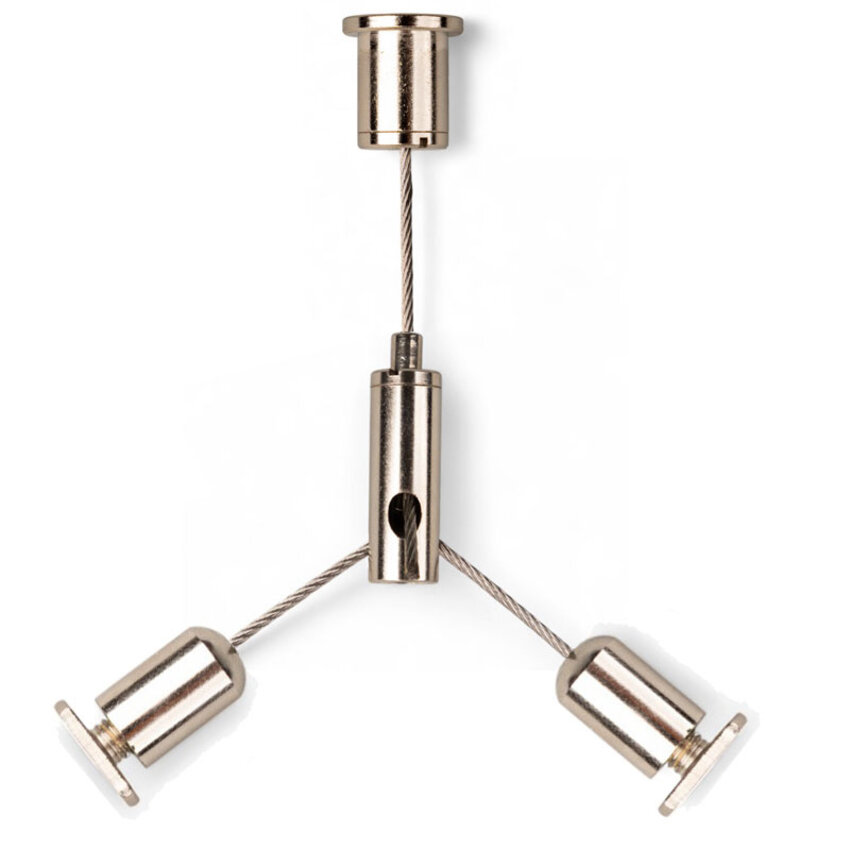

Mounting system with 2 M5 hanging points

There were no suitable mounting systems on the market especially for larger panels. In collaboration with a number of our customers and the manufacturer, we have developed a special INFRARED MOUNTING SYSTEM.

The following customer requirements have been taken into account:

• Height adjustability
• Visual appearance
• Installation time
• Minimum number of holes in the ceiling
• Wide applicability for different sizes.

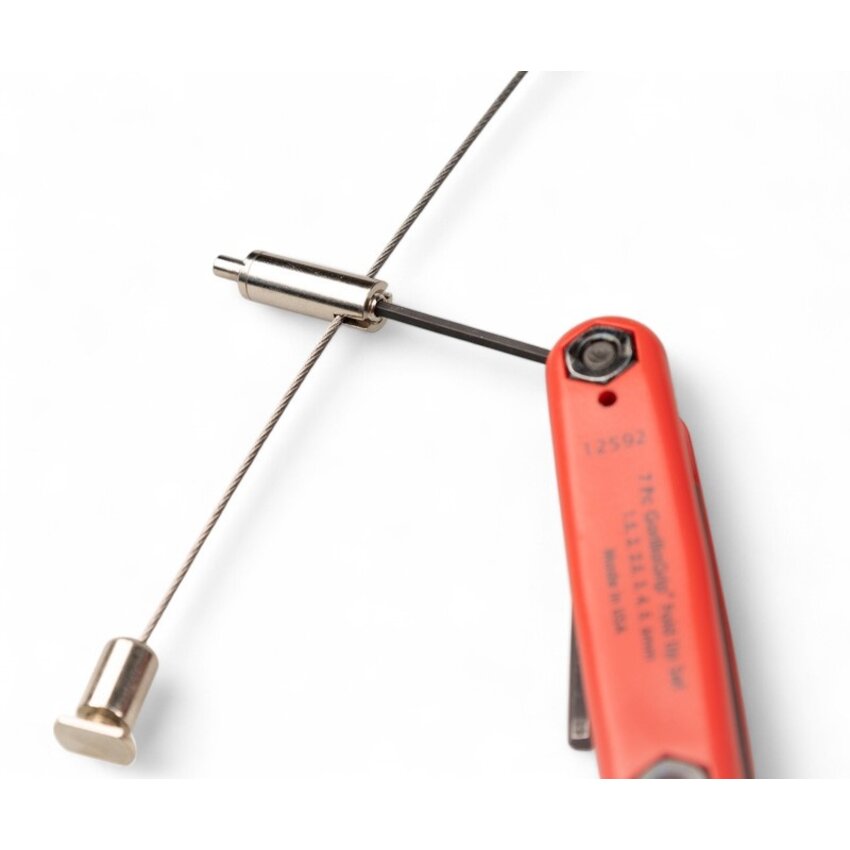

This infrared mounting system can be easily attached to the ceiling with 1 screw. It is easy to adjust in height.

Only one screw is needed per hanging point. When installing, make sure to use good quality screws and plugs.
And at the 2 ends equipped with 2 M5 bolts. These can be unscrewed and screwed into your light panel.

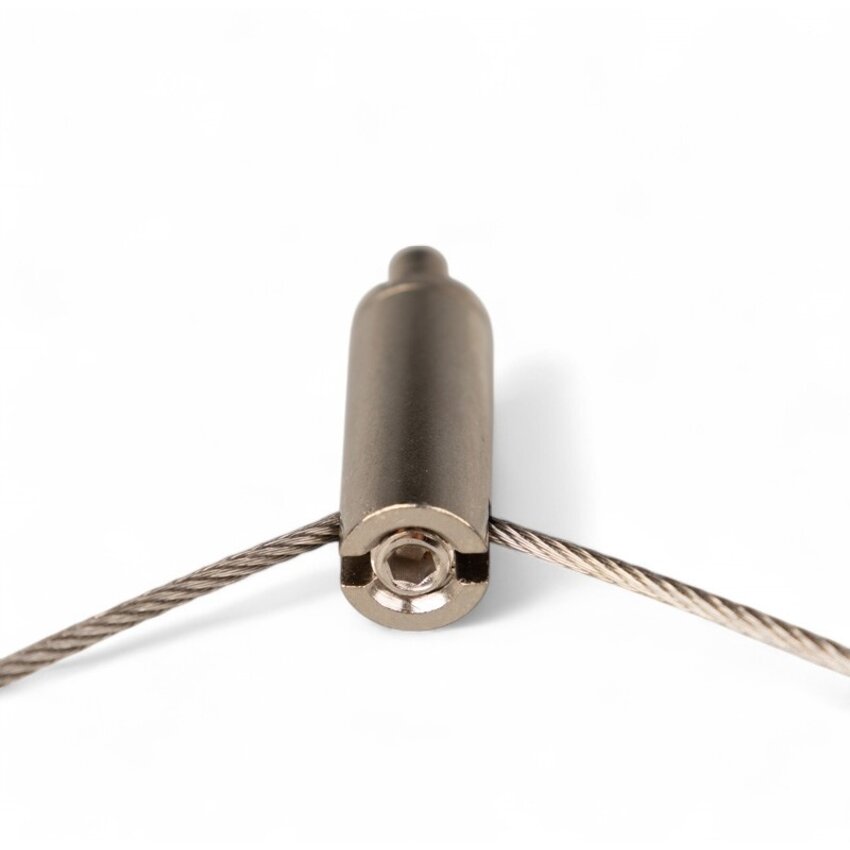

The steel cable has a thickness of 1.5mm and a length of 1 meter.
The 2 legs have a length of 35cm including bolts.
