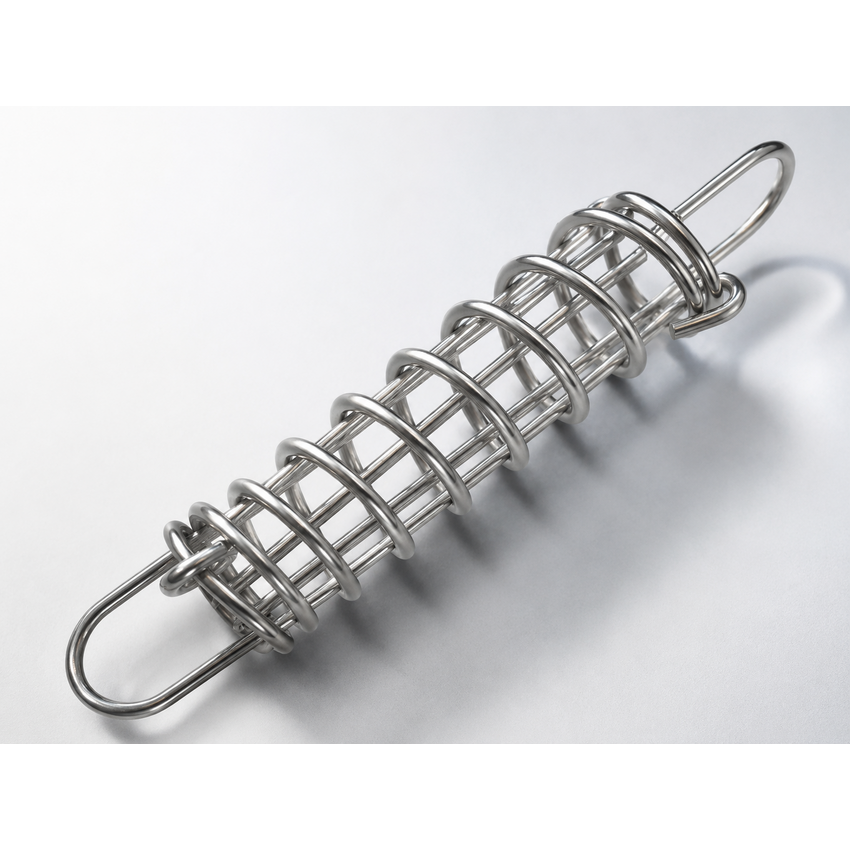

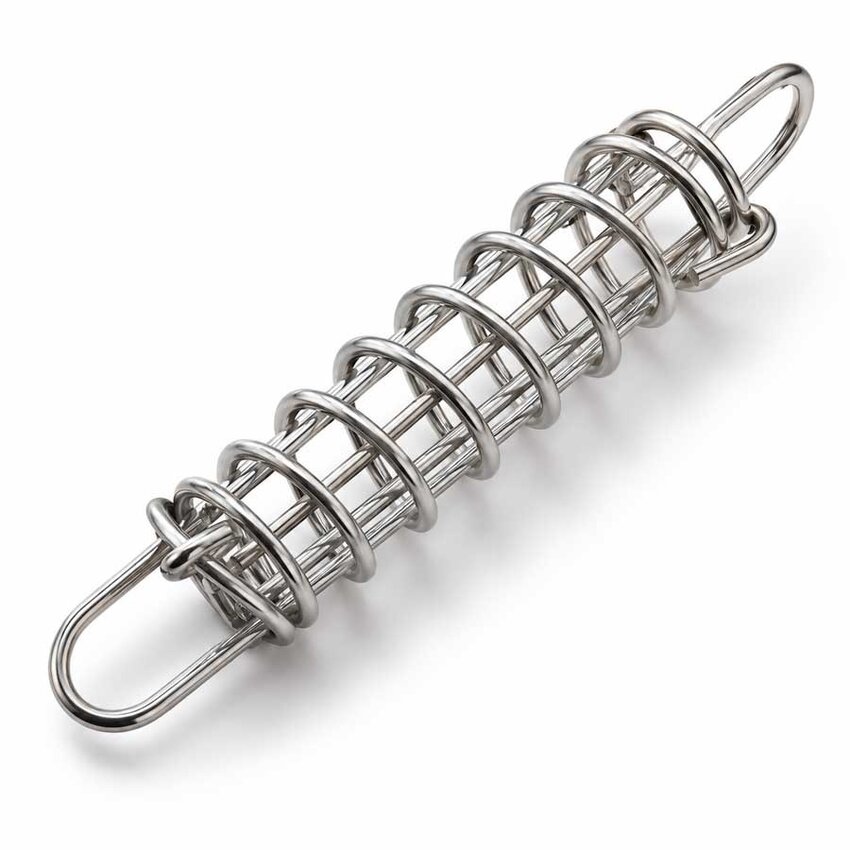

Stainless Steel Mooring Spring 270 x 5 mm AISI 304

This stainless steel mooring spring, measuring 270 x 5 mm, helps absorb shocks and sudden pulling forces on the mooring line. The mooring spring is suitable for boats up to 6 metres long and weighing up to 1,600 kg.

The spring is made of AISI 304/A2 stainless steel and has a maximum outside width of 53 mm. Its spring action transfers the boat’s movements more gradually to the mooring line and attachment point.

Key features

• Dimensions: 270 mm long with a wire diameter of 5 mm.
• Material: made of AISI 304/A2 stainless steel.
• Outside width: maximum width of 53 mm.
• Packaging: supplied individually.
• Application: suitable for boats up to 6 metres long and weighing up to 1,600 kg.

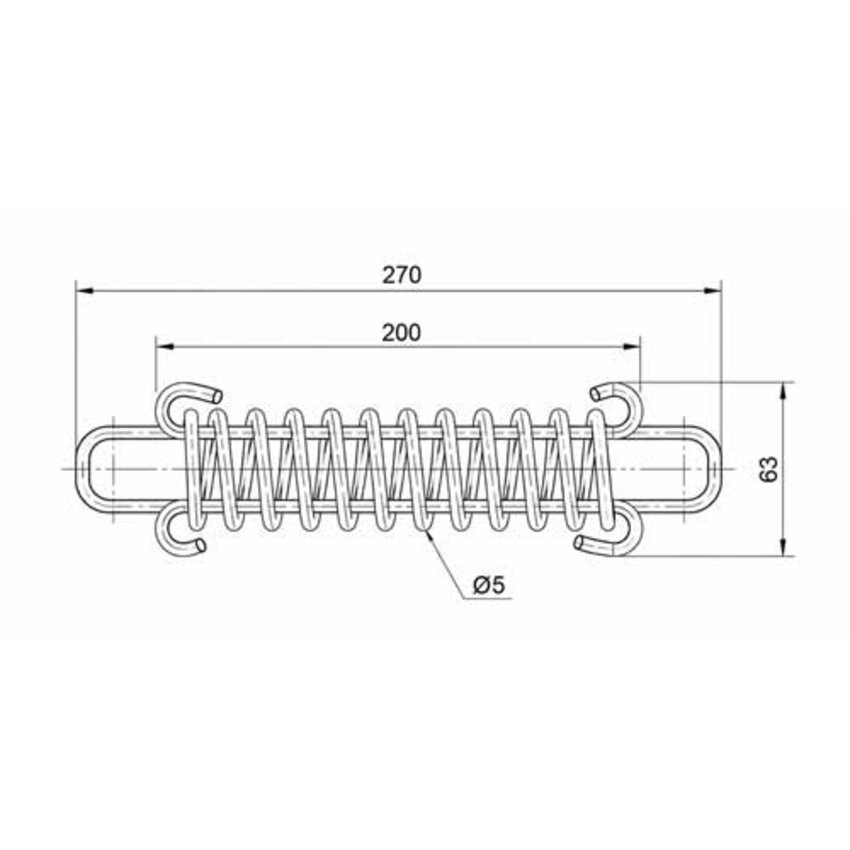

Dimensions:

What is this mooring spring used for?

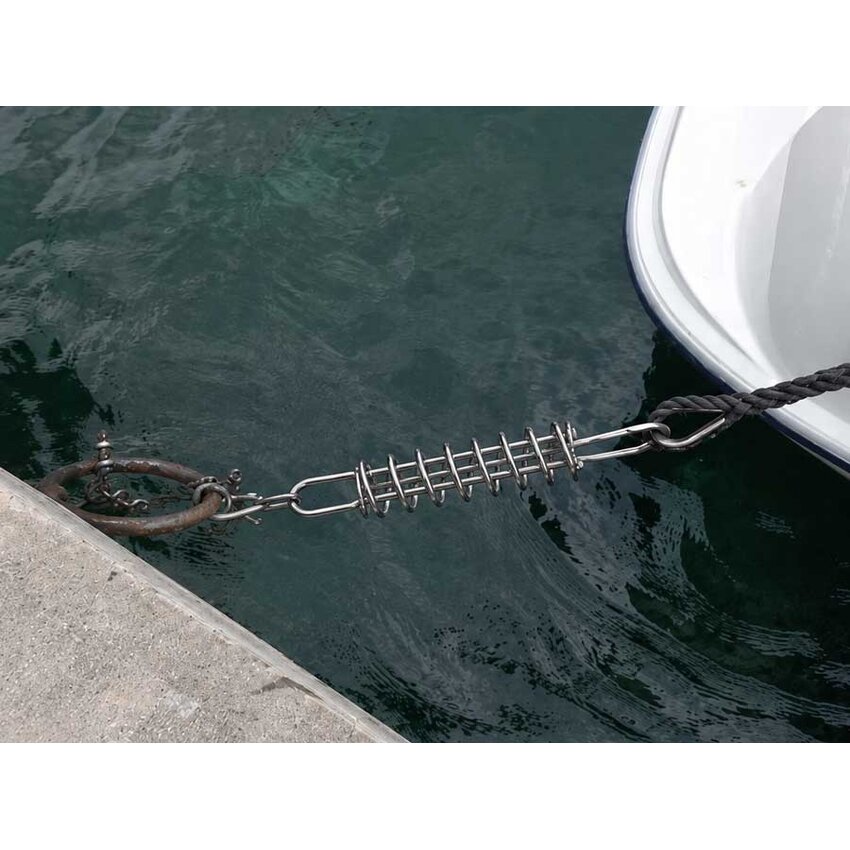

The stainless steel mooring spring is fitted to a mooring line to absorb shocks caused by wind, waves and boat movement. This reduces sudden pulling forces on the line and attachment point.

How does the mooring spring work?

The mooring line is attached to both ends of the spring. When the boat moves, the centre section flexes and gradually absorbs the force. Always choose a version suitable for the length and weight of your boat.

Please note: the stated dimensions may vary slightly between production batches.

Frequently asked questions

What are the dimensions of this mooring spring?

The mooring spring is 270 mm long. The wire diameter is 5 mm and the maximum outside width is 53 mm.

What material is the mooring spring made from?

The spring is made of AISI 304/A2 stainless steel. This material is suitable for use as part of a mooring system.

Which boats is this mooring spring suitable for?

According to the technical specifications, this version is suitable for boats up to 6 metres long. The stated maximum boat weight is 1,600 kg.

What does a mooring spring do?

A mooring spring absorbs sudden pulling forces in the mooring line. This helps distribute the load more evenly across the line, the boat and the attachment point.

How many mooring springs are supplied?

This version is supplied individually. Check in advance how many springs you need for your mooring arrangement.

Can the dimensions vary?

Yes, the dimensions may vary slightly between production batches. The technical values should therefore be regarded as guidelines.
