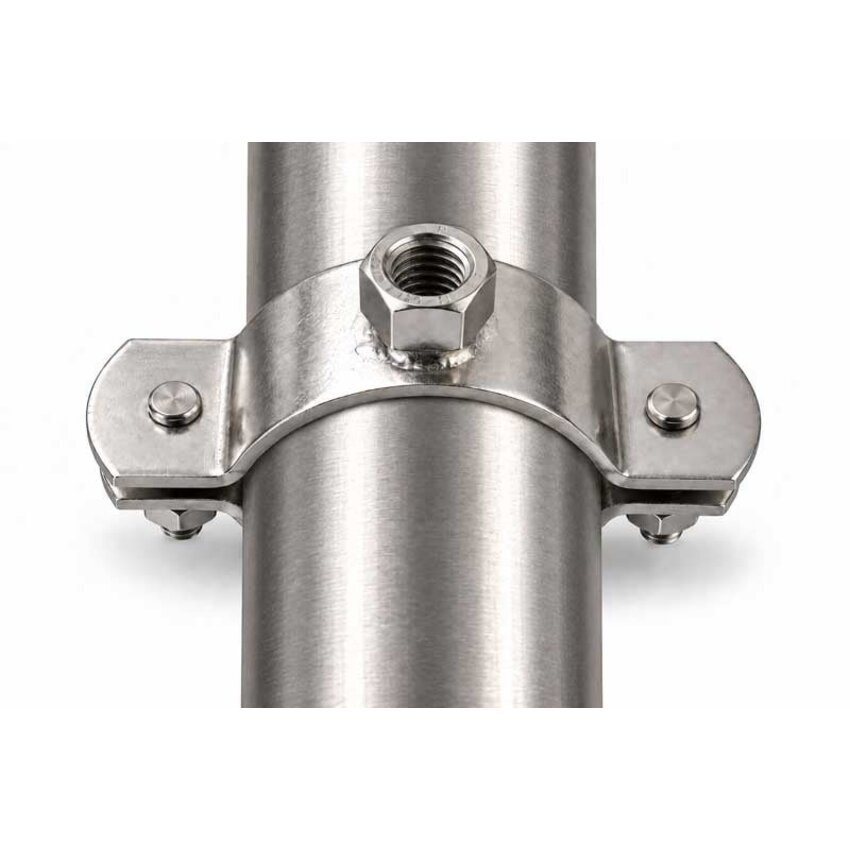

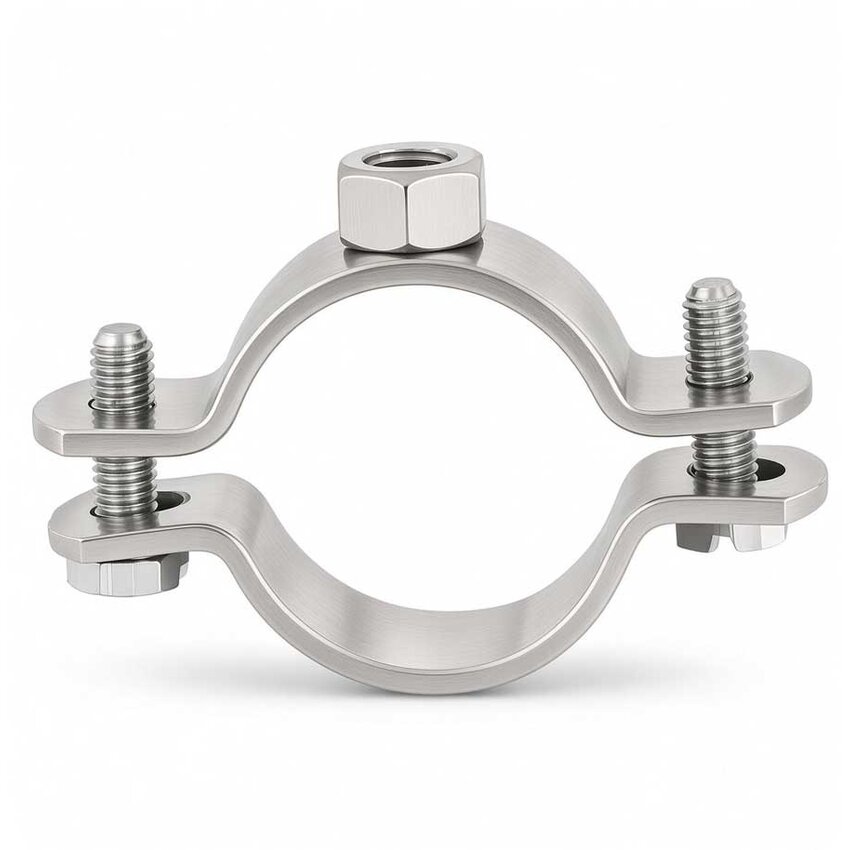

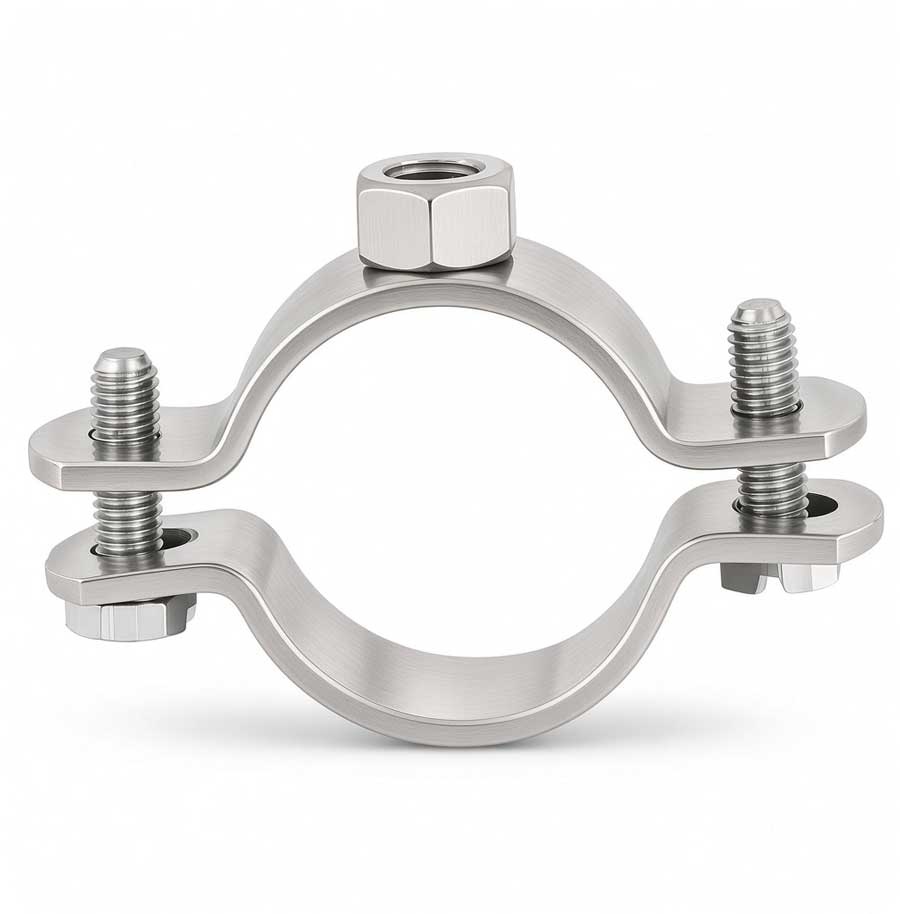

Large Stainless Steel Pipe Clamp 110–116 mm, Two-Piece, with M10 Mounting Thread

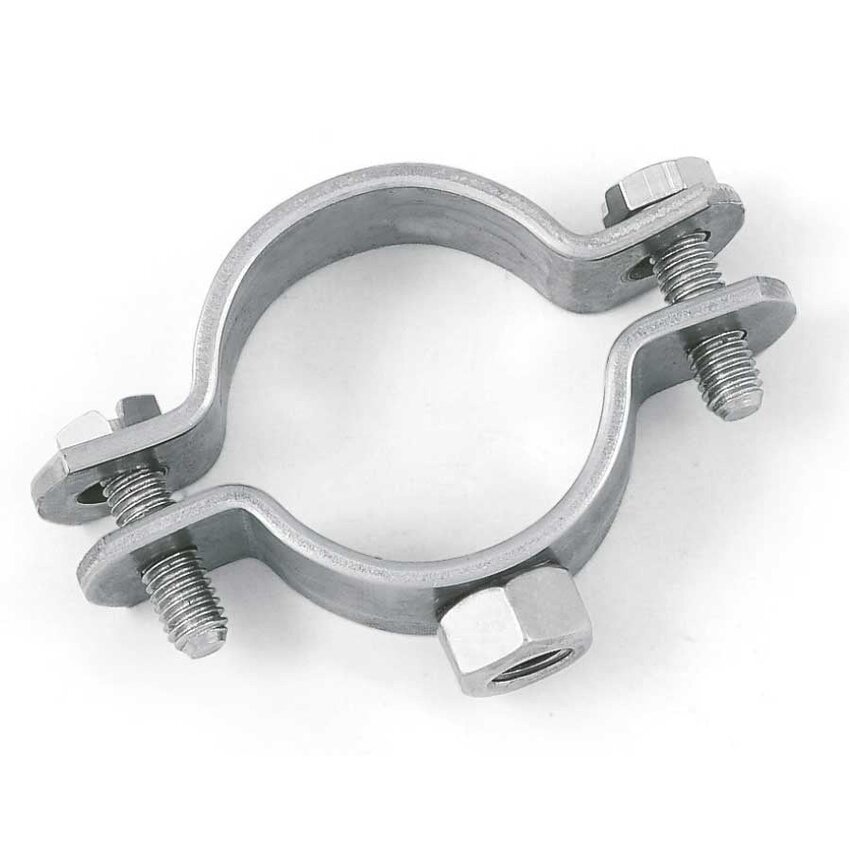

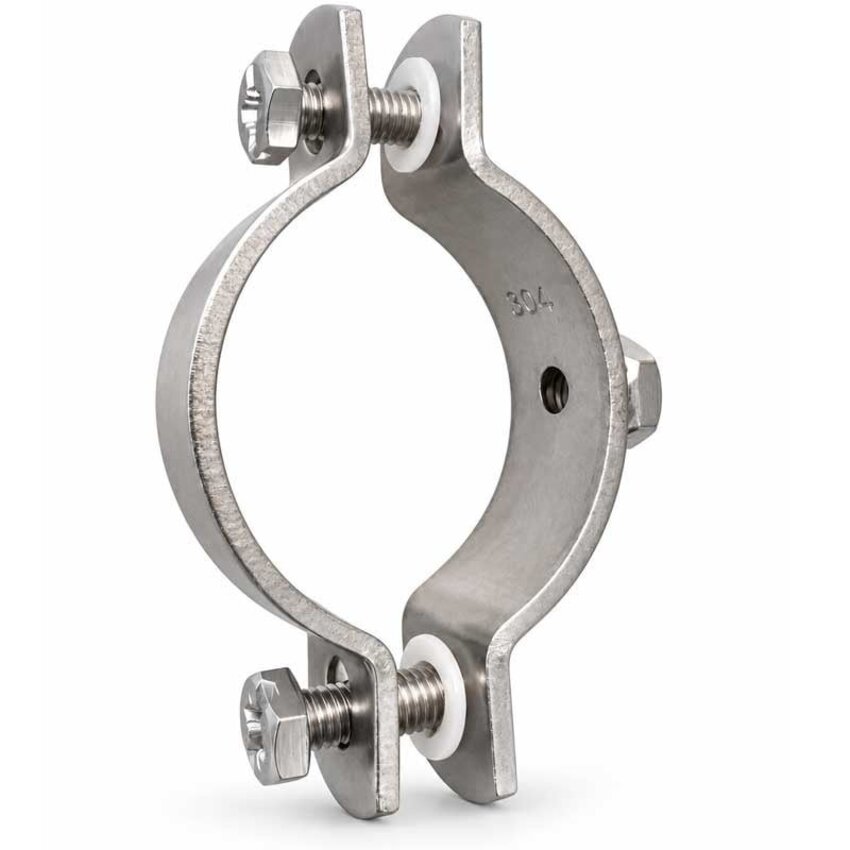

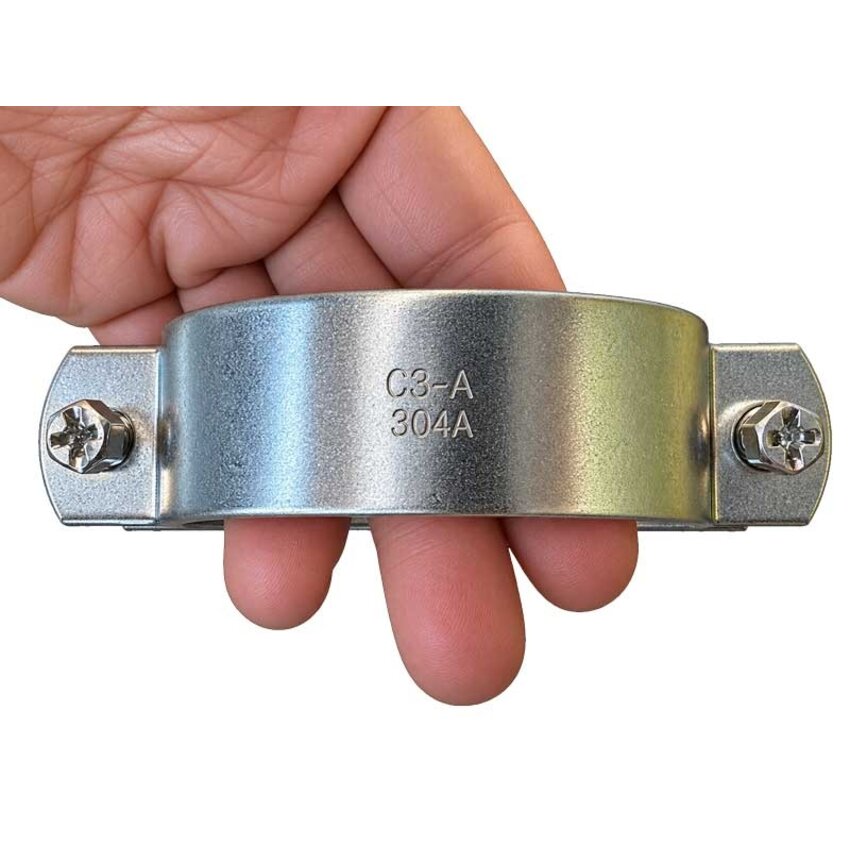

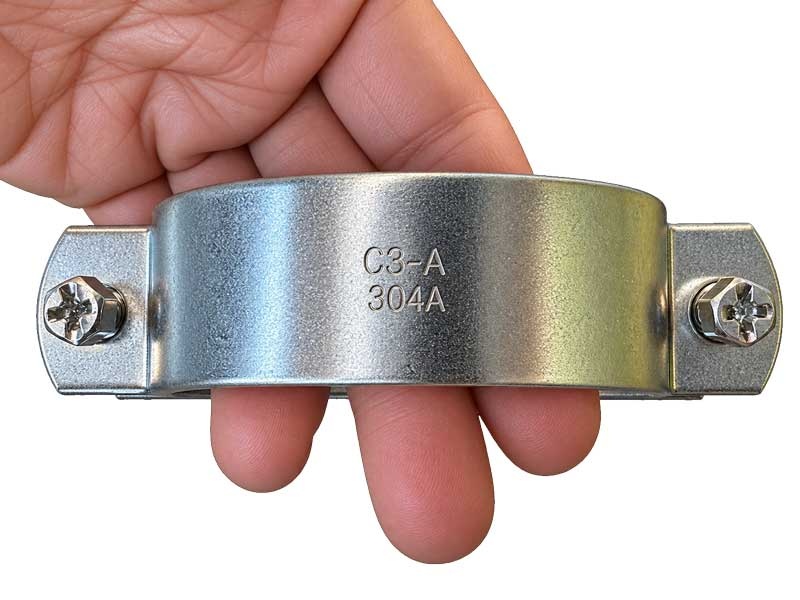

This large two-piece stainless steel pipe clamp 110–116 mm is designed for securing pipes with an outside diameter of 110 to 116 mm. It is the largest size in this pipe clamp range at Staalkabelstunter and consists of two formed clamp sections manufactured from stainless steel 1.4301 (AISI 304).

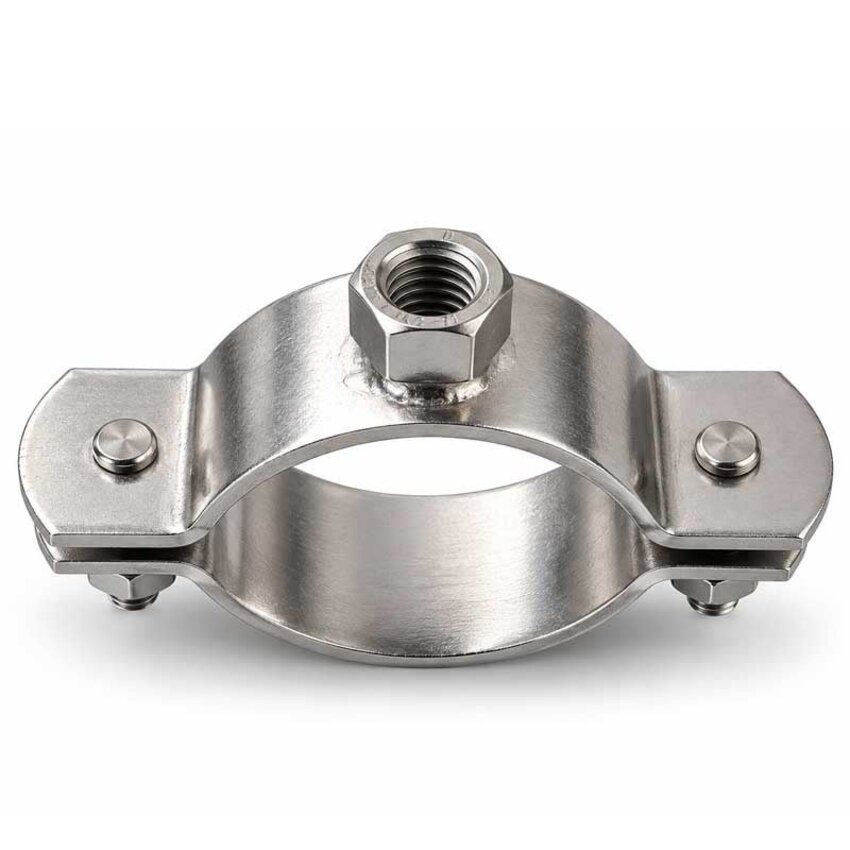

The pipe clamp is fitted with a welded M10 threaded mounting nut and is supplied with two screws for joining the clamp sections. Stainless steel 1.4301 is suitable for many indoor and outdoor applications.

Key Features

• Clamping range: suitable for pipes with an outside diameter of 110 to 116 mm.
• Material: manufactured from stainless steel 1.4301 (AISI 304).
• Design: large two-piece pipe clamp with welded M10 threaded mounting nut.
• Assembly: bolted connection including two clamp screws.
• Application: suitable for securing large main, distribution and technical pipework in commercial and industrial installations.

Applications

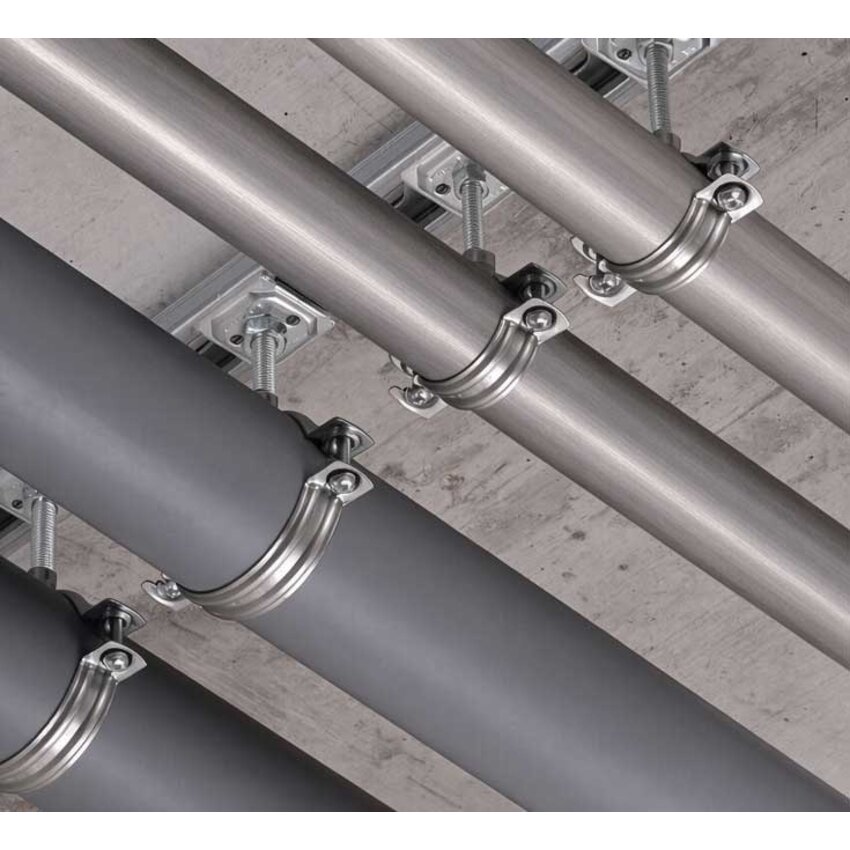

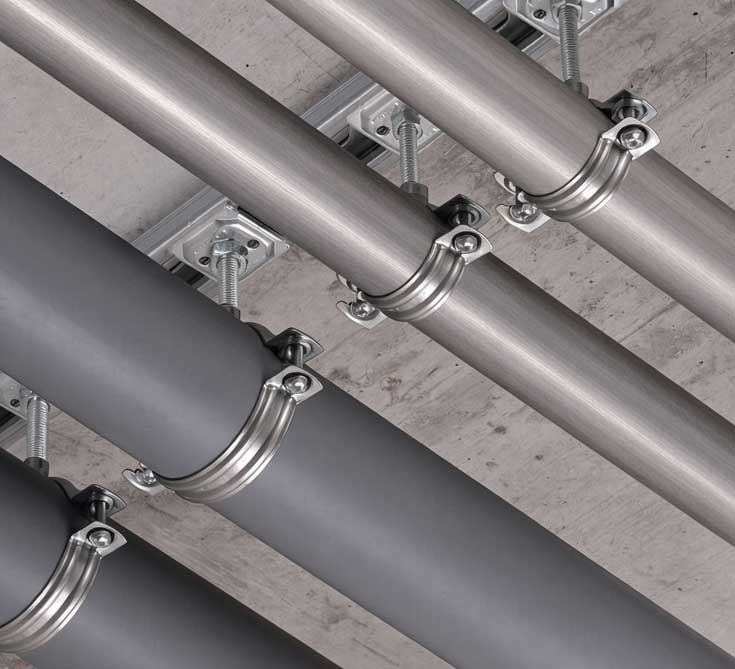

This large stainless steel pipe clamp is suitable for securing pipes and tubing with an outside diameter of 110–116 mm. Typical applications include large water and heating mains, distribution and service pipework, compressed air lines, stainless steel and steel pipework, and technical pipework in plant rooms, workshops, machinery installations and commercial or industrial facilities. This size is suitable for many 4" steel pipes (DN 100) with an outside diameter of approximately 114.3 mm. Always select the clamp according to the actual measured outside diameter of the pipe. The welded M10 mounting nut allows the clamp to be fixed to a suitable M10 threaded rod or another compatible mounting point.

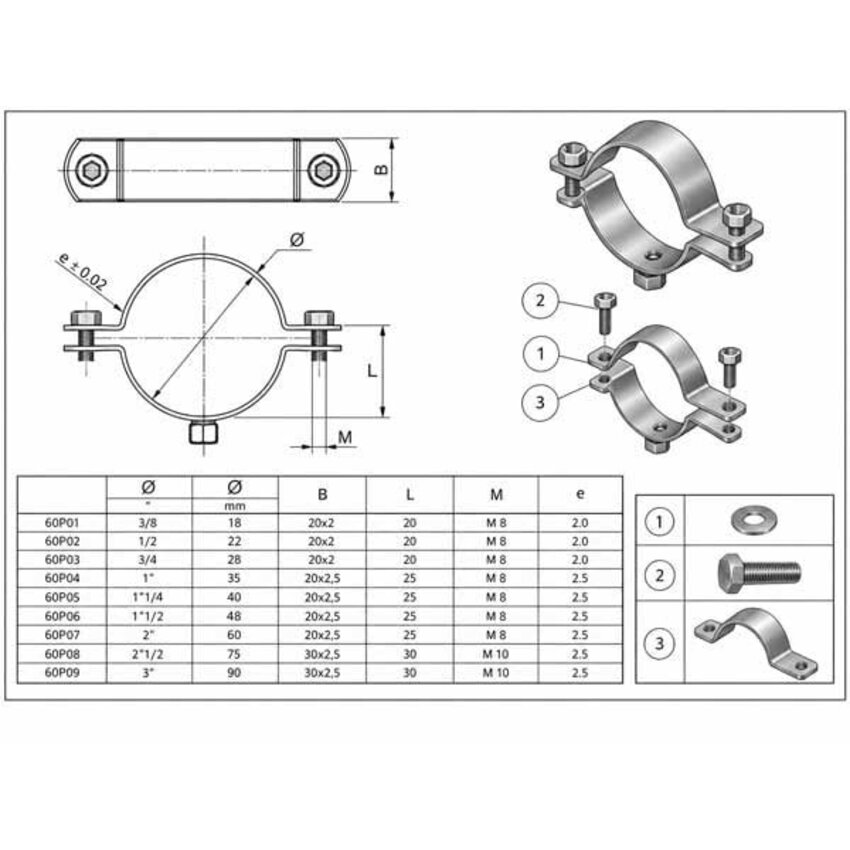

Dimensions

How is the two-piece pipe clamp installed?

1. Measure the outside diameter of the pipe and check that it is between 110 and 116 mm.
2. Position the two clamp sections around the pipe.
3. Join the two sections using the supplied screws.

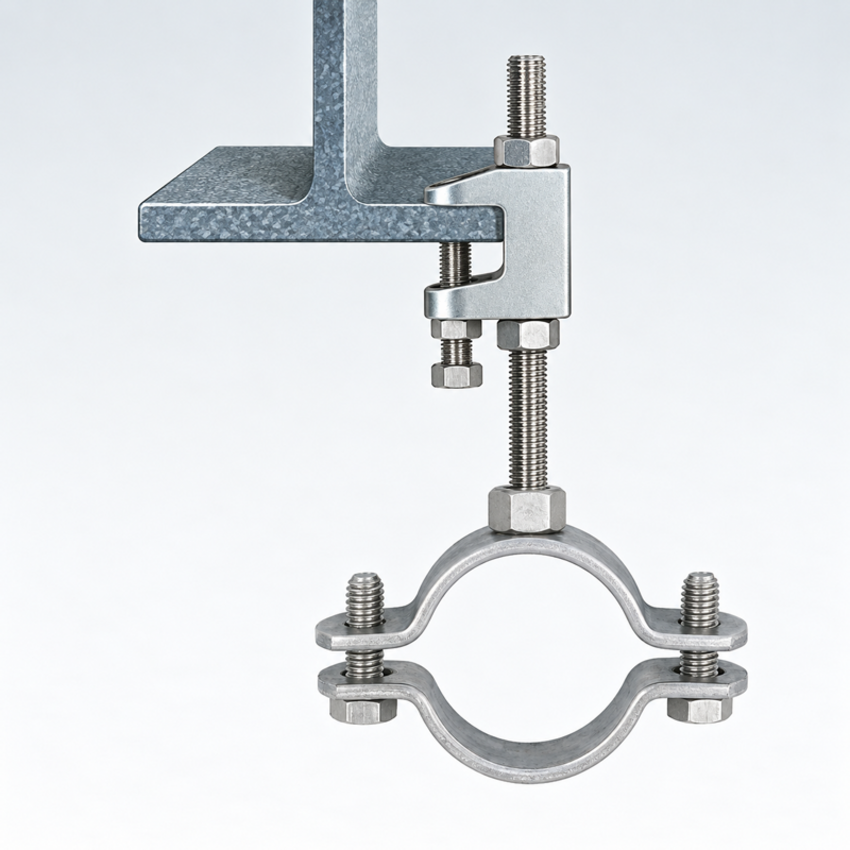

4. Mount the pipe clamp using the M10 threaded mounting nut and a suitable M10 threaded rod or compatible fixing point.

Frequently Asked Questions

Is 110–116 mm the largest pipe clamp in this range?

Yes, the 110–116 mm version is the largest size in this pipe clamp range at Staalkabelstunter. It is intended for larger pipes and pipework with a matching outside diameter.

Is this large pipe clamp suitable for 4" steel pipe?

This size is suitable for many 4" steel pipes (DN 100) with an outside diameter of approximately 114.3 mm. The 4" designation is a nominal pipe size, so always use the actual outside diameter when selecting the correct clamp.

What applications is the 110–116 mm pipe clamp suitable for?

This large pipe clamp is suitable for large water and heating mains, distribution pipework, compressed air lines and stainless steel or steel pipework in technical, commercial and industrial installations. The pipe must have an outside diameter between 110 and 116 mm.

What thread size does the mounting nut have?

This version is fitted with a welded M10 threaded mounting nut. For direct installation, use a suitable M10 threaded rod or another compatible fixing with an M10 male thread.

What should I consider when mounting large pipework?

In addition to selecting the correct clamping range, make sure the threaded rod, fixing points, support spacing and supporting structure are suitable for the installation. The load capacity of the complete support system is not determined by the pipe clamp alone.

Need Advice?

Looking for a large pipe clamp for a pipe with an outside diameter of 110 to 116 mm? Measure the pipe accurately before ordering and check that an M10 mounting connection is suitable for your installation. Our customer service team will be happy to help you select the correct pipe clamp and mounting solution.
