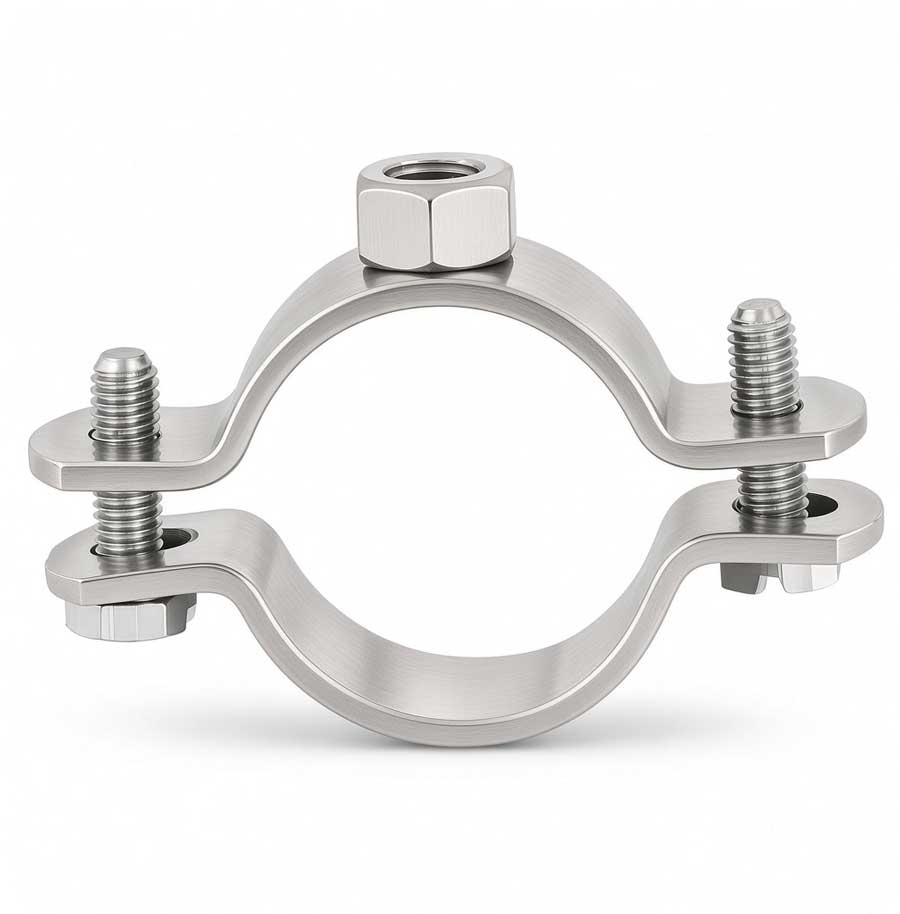

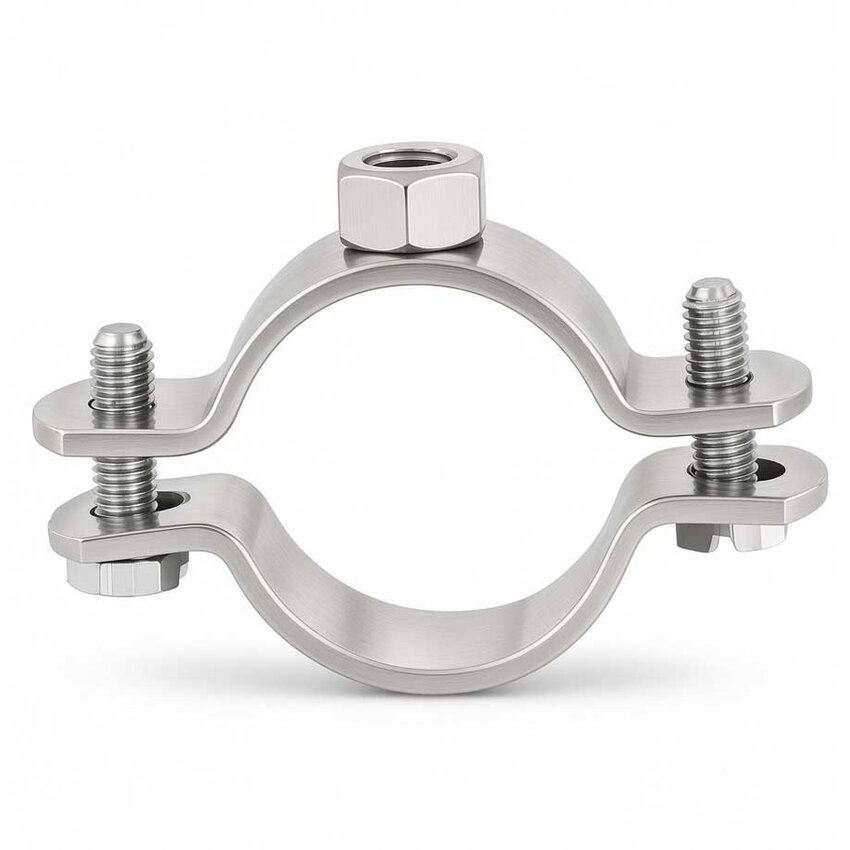

Stainless Steel Pipe Clamp 70–77 mm, Two-Piece, with M10 Mounting Thread

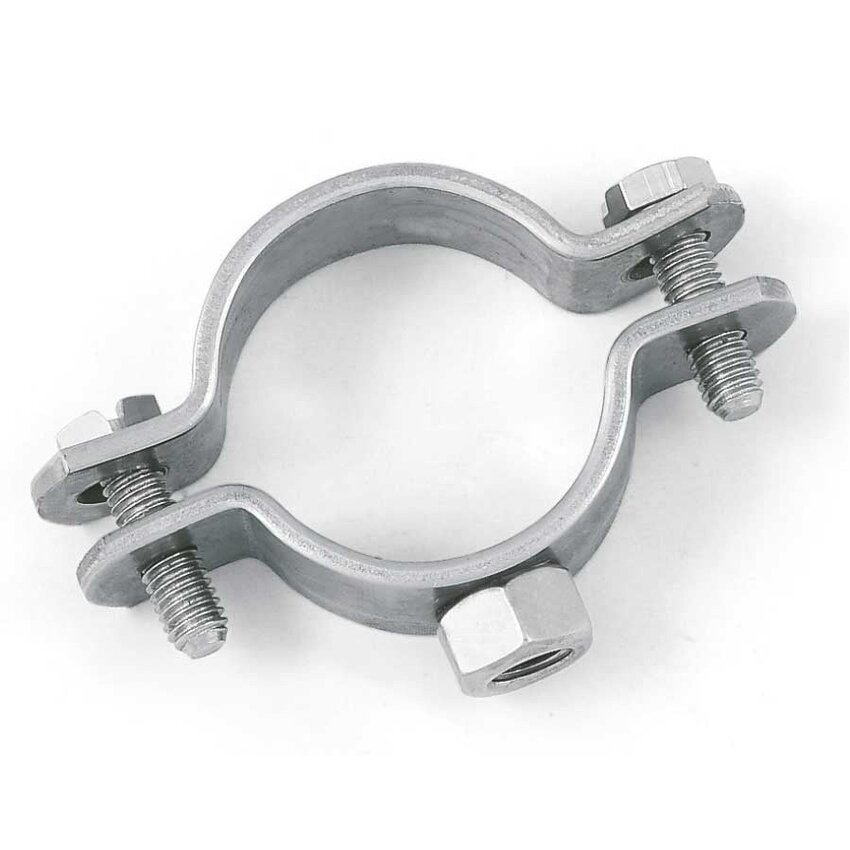

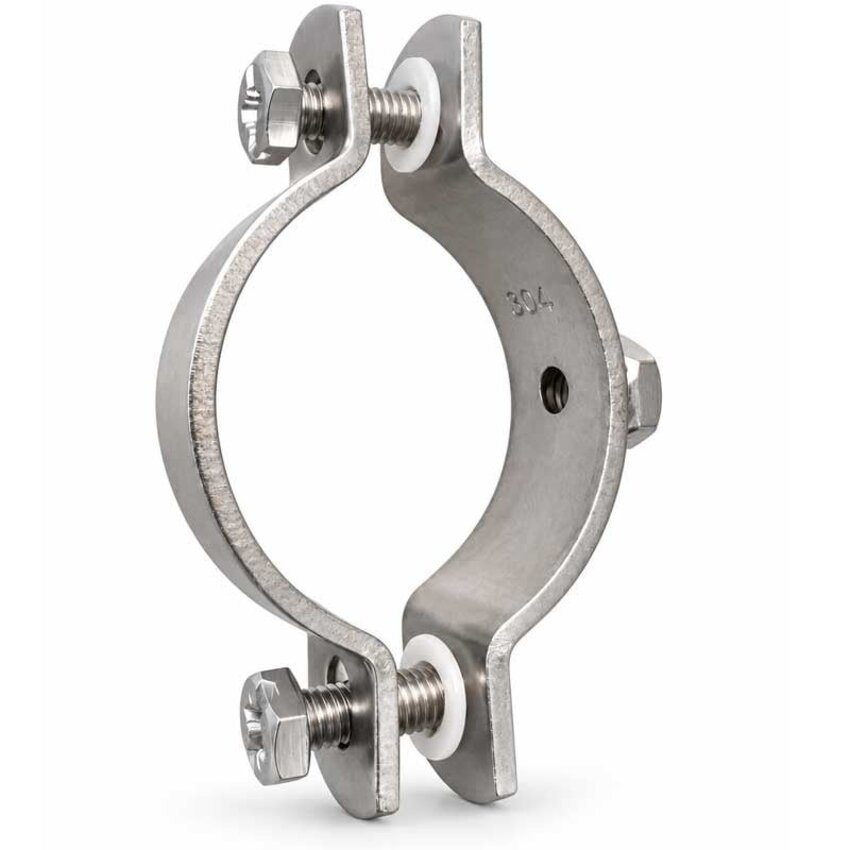

This two-piece stainless steel pipe clamp 70–77 mm is designed for securing pipes with an outside diameter of 70 to 77 mm. The clamp consists of two formed sections manufactured from stainless steel 1.4301 (AISI 304).

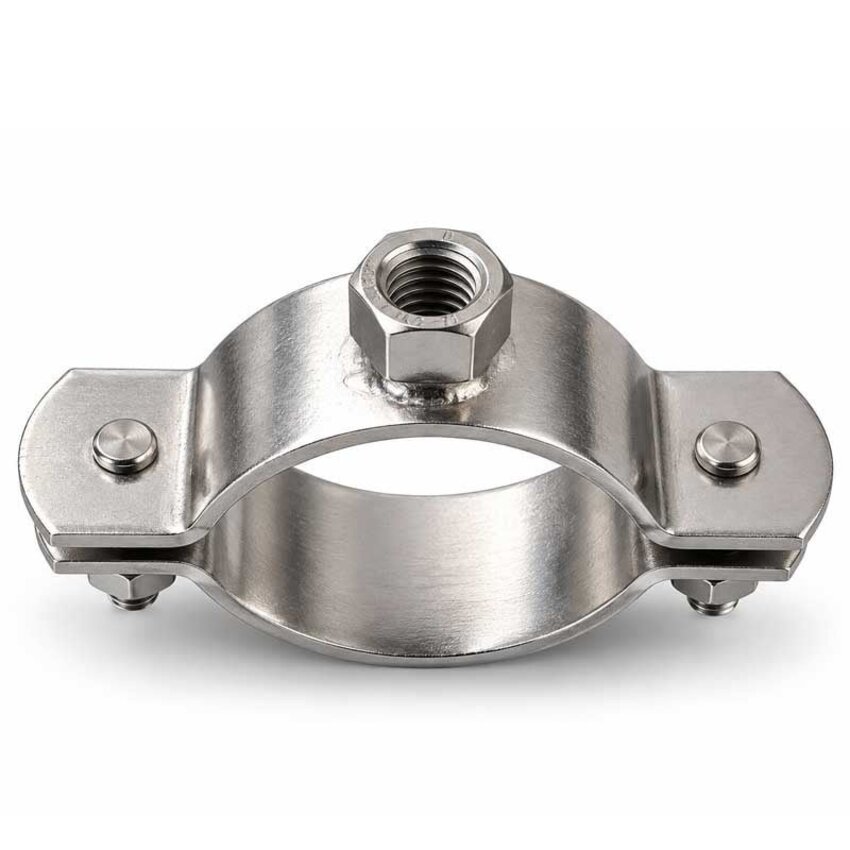

The pipe clamp is fitted with a welded M10 threaded mounting nut and is supplied with two screws for joining the clamp sections. Stainless steel 1.4301 is suitable for many indoor and outdoor applications.

Key Features

• Clamping range: suitable for pipes with an outside diameter of 70 to 77 mm.

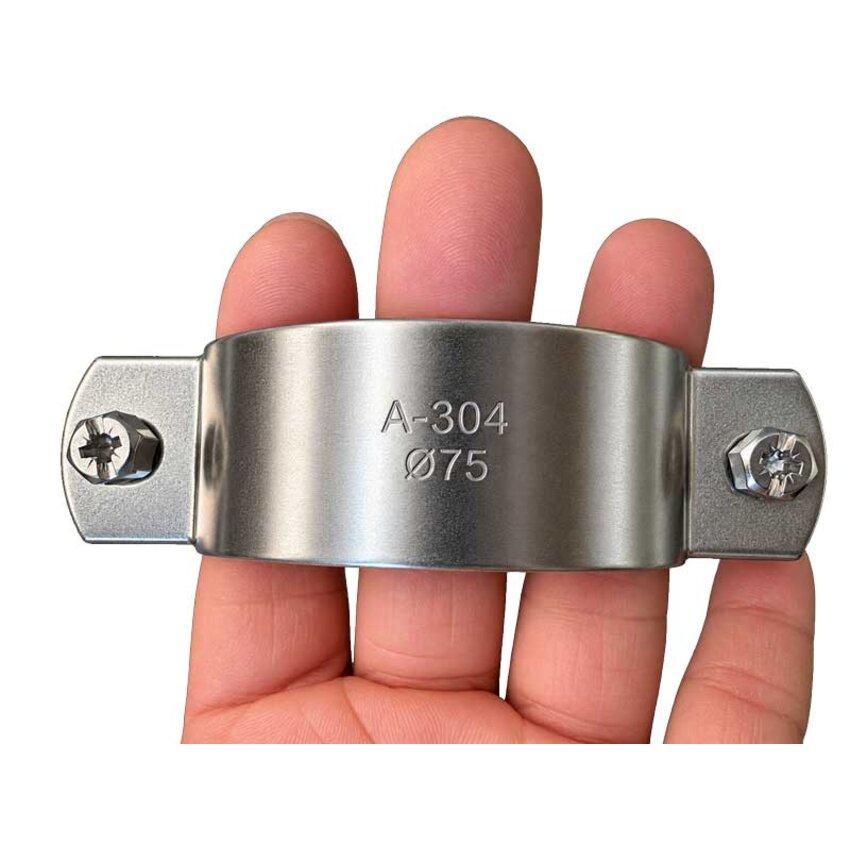

• Material: manufactured from stainless steel 1.4301 (AISI 304).
• Design: two-piece pipe clamp with welded M10 threaded mounting nut.
• Assembly: bolted connection including two clamp screws.
• Application: suitable for securing larger main, distribution, compressed air and technical pipework.

Applications

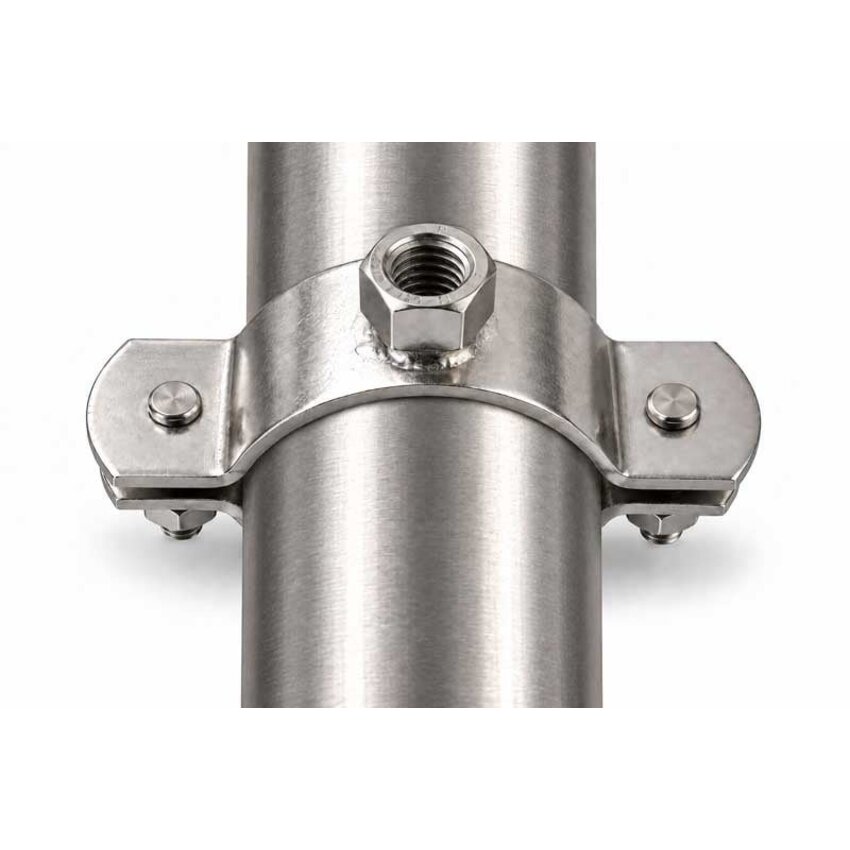

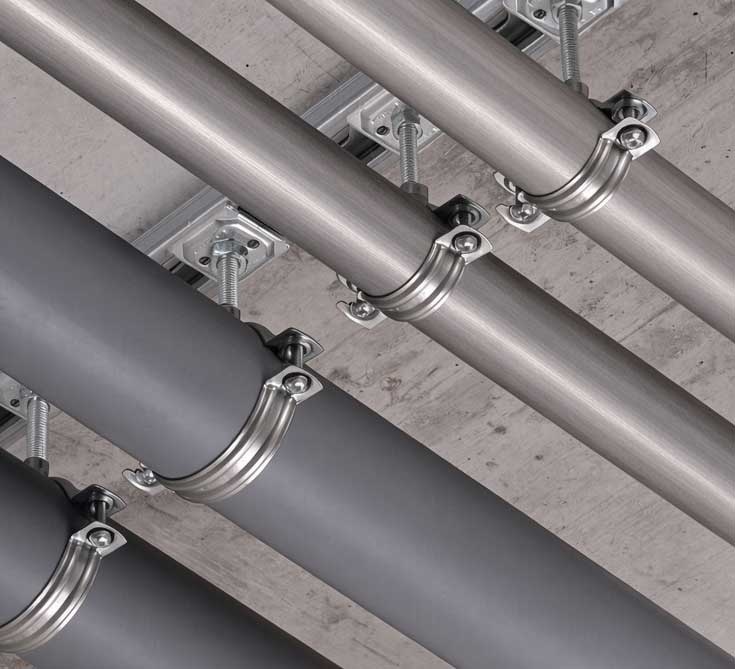

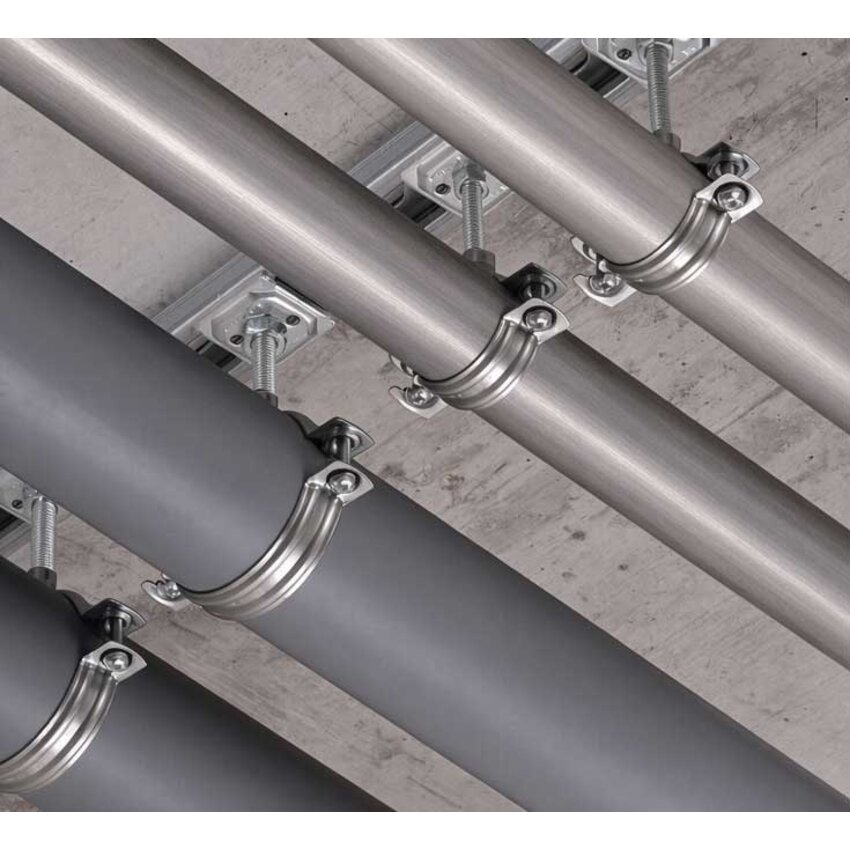

This stainless steel pipe clamp is suitable for securing larger pipes and tubing with an outside diameter of 70–77 mm. Typical applications include stainless steel and steel pipework, water and heating mains, distribution lines, larger compressed air lines and technical pipework in plant rooms, workshops, commercial buildings and industrial installations. This size is suitable for many 2 1/2" steel pipes (DN 65) with an outside diameter of approximately 76.1 mm. Always select the clamp by the actual measured outside diameter of the pipe. The welded M10 mounting nut allows the clamp to be fixed to a suitable M10 threaded rod or another compatible mounting point.

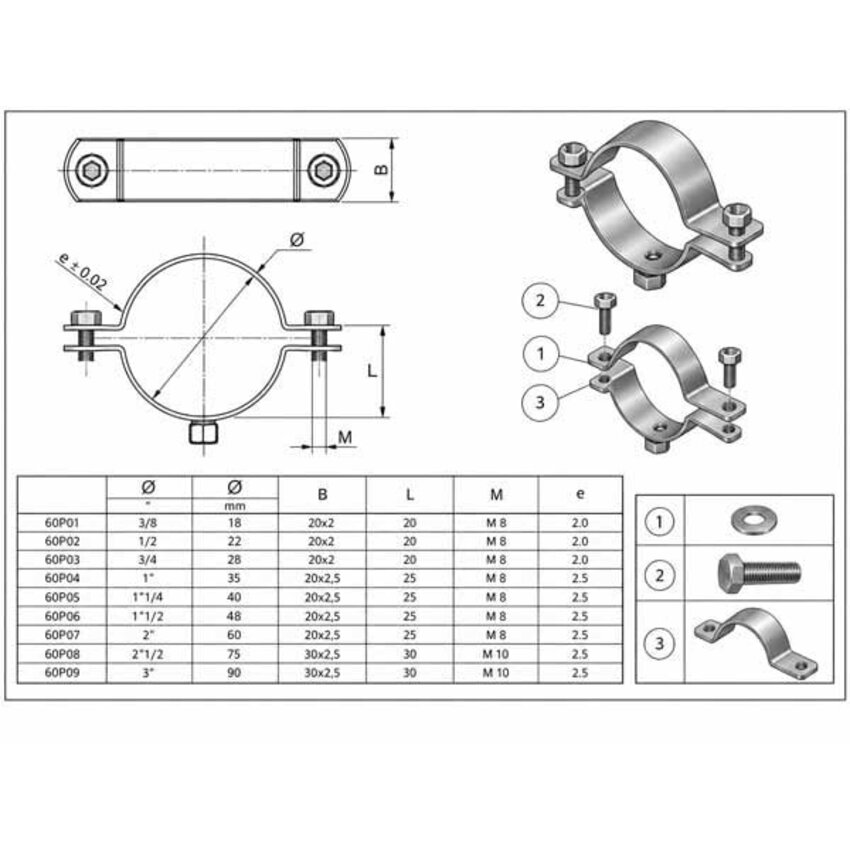

Dimensions

How is the two-piece pipe clamp installed?

1. Measure the outside diameter of the pipe and check that it is between 70 and 77 mm.
2. Position the two clamp sections around the pipe.
3. Join the two sections using the supplied screws.

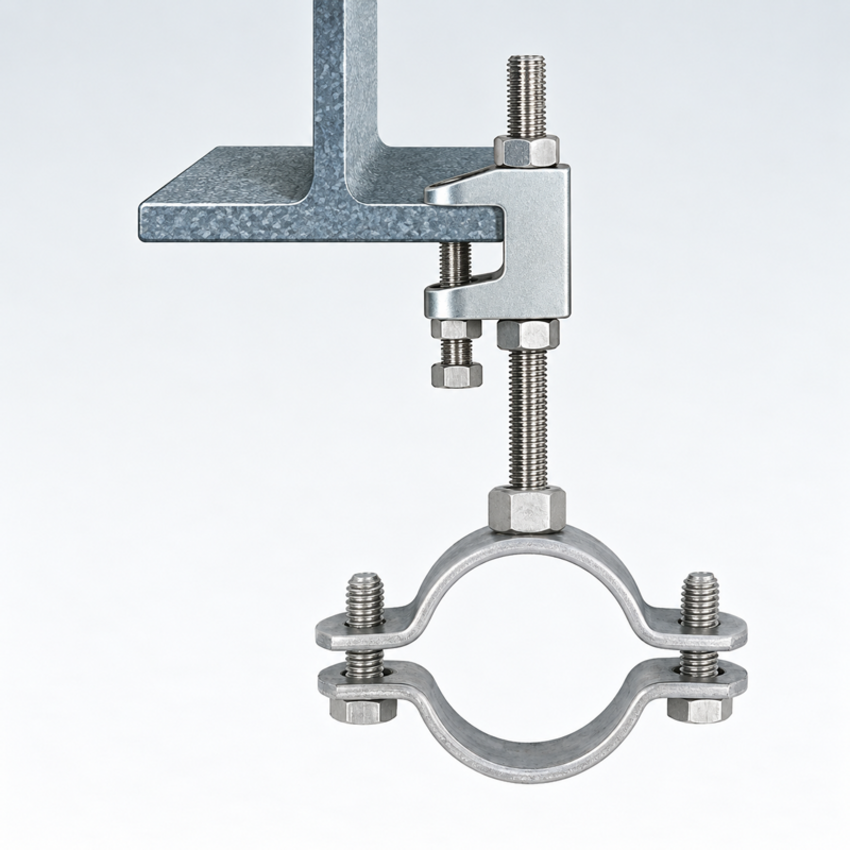

4. Mount the pipe clamp using the M10 threaded mounting nut and a suitable M10 threaded rod or compatible fixing point.

Frequently Asked Questions

Is this clamp suitable for 2 1/2" steel pipe?

This size is suitable for many 2 1/2" steel pipes (DN 65) with an outside diameter of approximately 76.1 mm. The 2 1/2" designation is a nominal pipe size, so always check the actual outside diameter before ordering.

What applications is the 70–77 mm pipe clamp suitable for?

This size is suitable for larger water and heating mains, distribution pipework, compressed air lines and stainless steel or steel pipework in technical and industrial installations. The pipe must have an outside diameter between 70 and 77 mm.

What thread size does the mounting nut have?

This version is fitted with a welded M10 threaded mounting nut. For direct installation, use a suitable M10 threaded rod or another compatible fixing with an M10 male thread.

Can this clamp be mounted on M8 threaded rod?

Not directly. This version has an M10 mounting nut and is intended for use with a compatible M10 threaded fixing. Check the existing threaded rod before ordering.

Is this stainless steel pipe clamp suitable for outdoor use?

Yes, the clamp is manufactured from stainless steel 1.4301 (AISI 304) and is suitable for many indoor and outdoor applications. For highly saline or chemically aggressive environments, check whether this stainless steel grade is suitable for the specific conditions.

Need Advice?

Not sure whether this stainless steel pipe clamp 70–77 mm is suitable for your pipework? Measure the actual outside diameter of the pipe and check that an M10 mounting connection suits your installation. Our customer service team will be happy to help you select the correct pipe clamp.
