Street greener - package

Green garland for a green street.

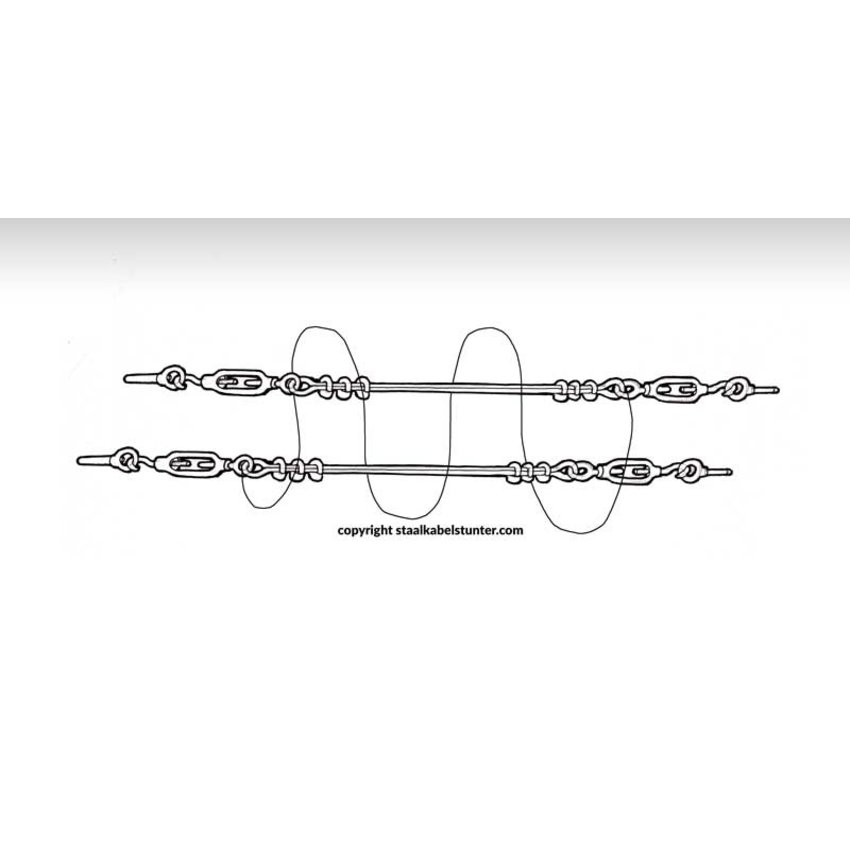

The green sling package contains 2 thicknesses of steel cable. One is to be stretched across the road. The other goes zig-zagging along as shown in the photo.

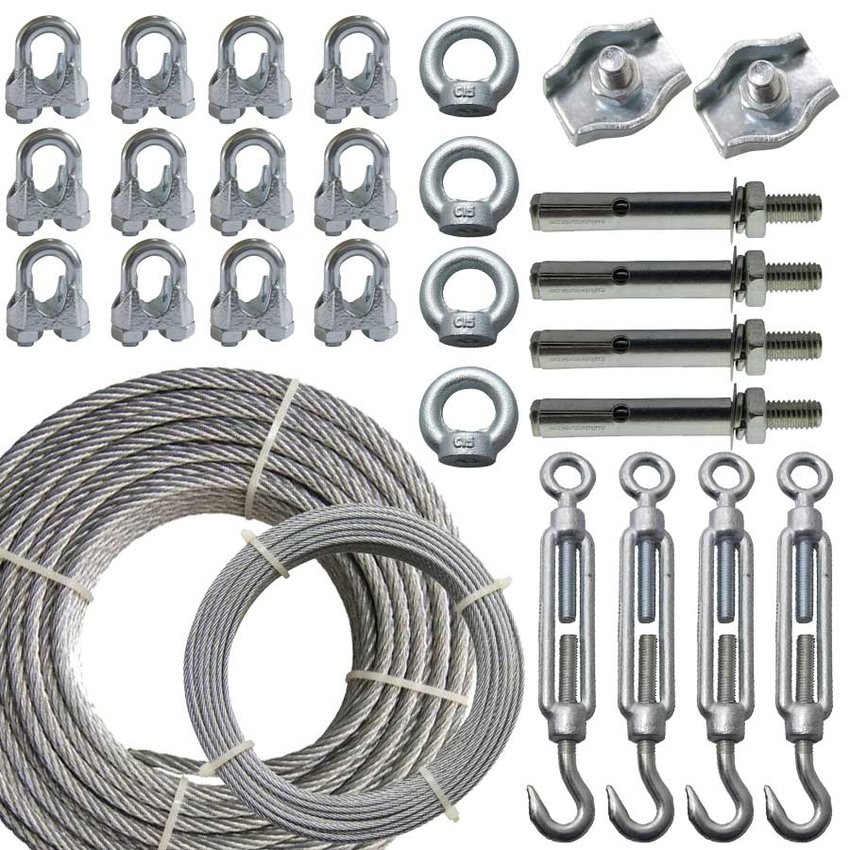

The package contains:

• 1x 20 meters 4mm galvanized
• 1x 20 metres 2mm galvanised
• 4x wedge anchor M8 zinc plated
• 4x eye nut M8 zinc plated
• 4x turnbuckle M8 Hook Eye galvanized
• 2x simplex clamp 2mm galvanised
• 12x wire clamp with nuts

You can also order separate parts by clicking on the blue links.

Instructions for use.

STEP 1. Place the peg bolts in the wall. With a distance of between 30 and 50 cm. Depending on the desired width.

STEP 2. Place the eye nuts on the peg bolts.

STEP 3. Fasten the 4mm steel cable to the wire tensioner with the wire clamps.

STEP 4. Unscrew the wire tensioners so that 35mm threads protrude on both sides.

STEP 5. Attach the wire rope to the eye of the turnbuckle. By making a loop with 3 wire clamps. You may want to watch this film clip about attaching wire clamps.

STEP 6. Repeat this step for all 4 points.

STEP 7. Place the hooks of the wire tensioner in the eye nuts. And tighten the tensioners.

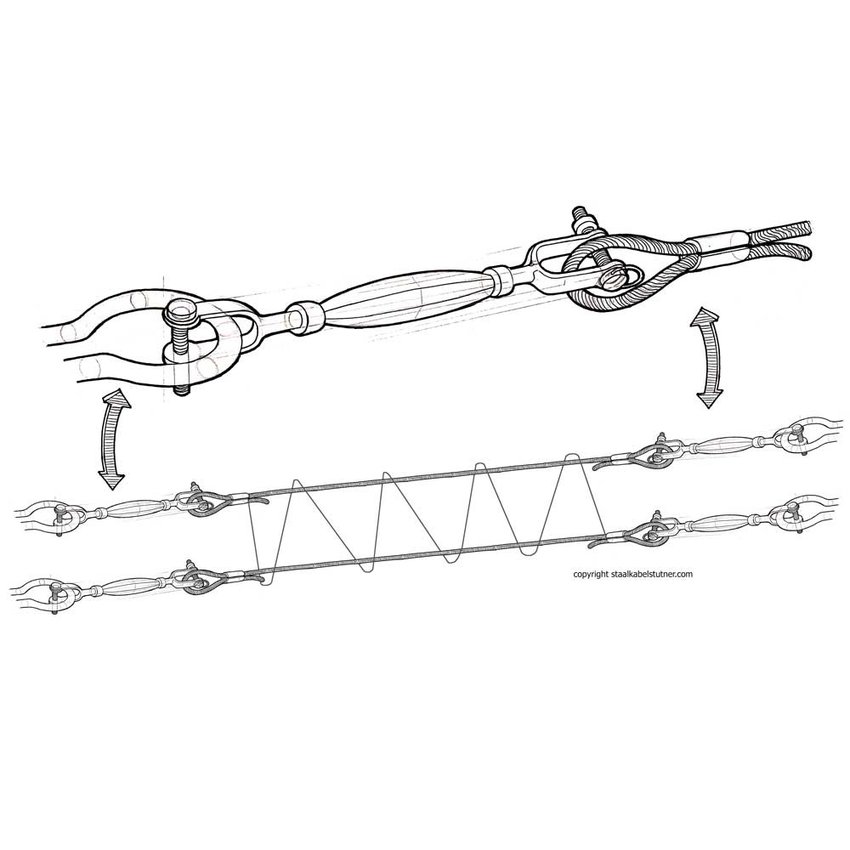

STEP 8. Now make a loop with the simplex clamp for 2mm on the eye nut. Then guide this cable zigzagging over the 4mm cable and attach the simplex clamp to the other side of the eye nut.

Your green pendulum is ready! Congratulations!
