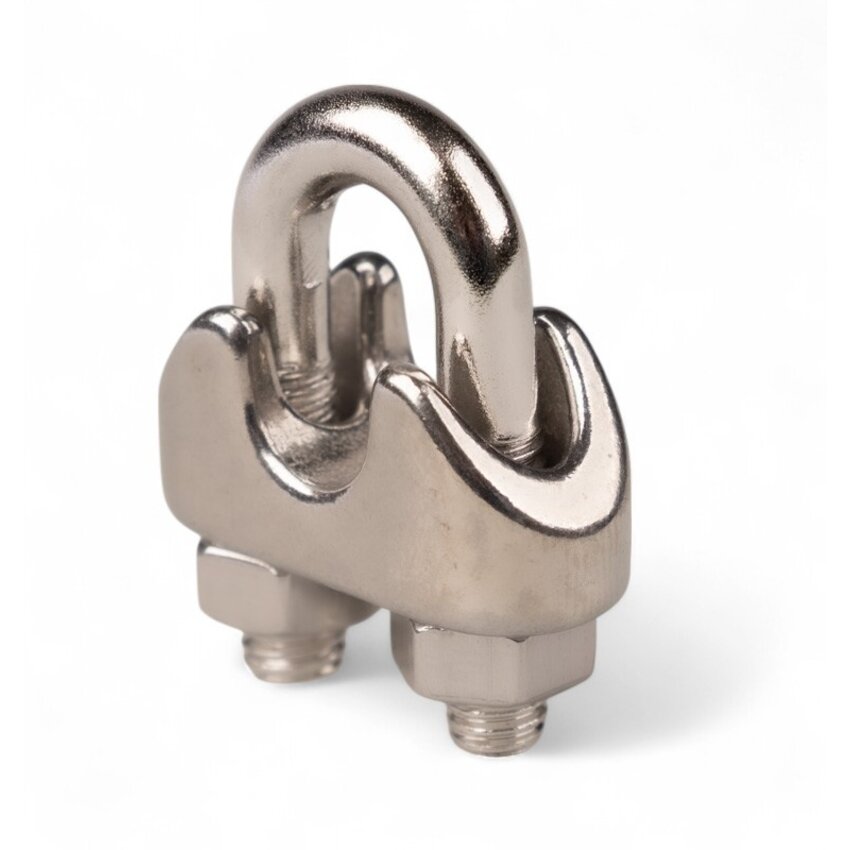

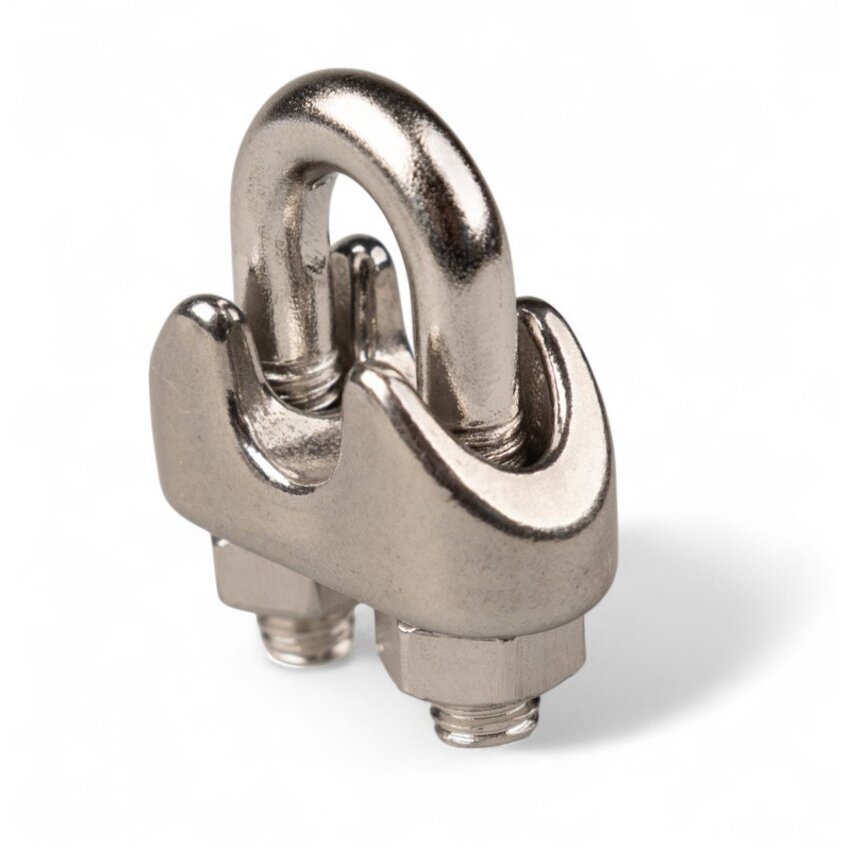

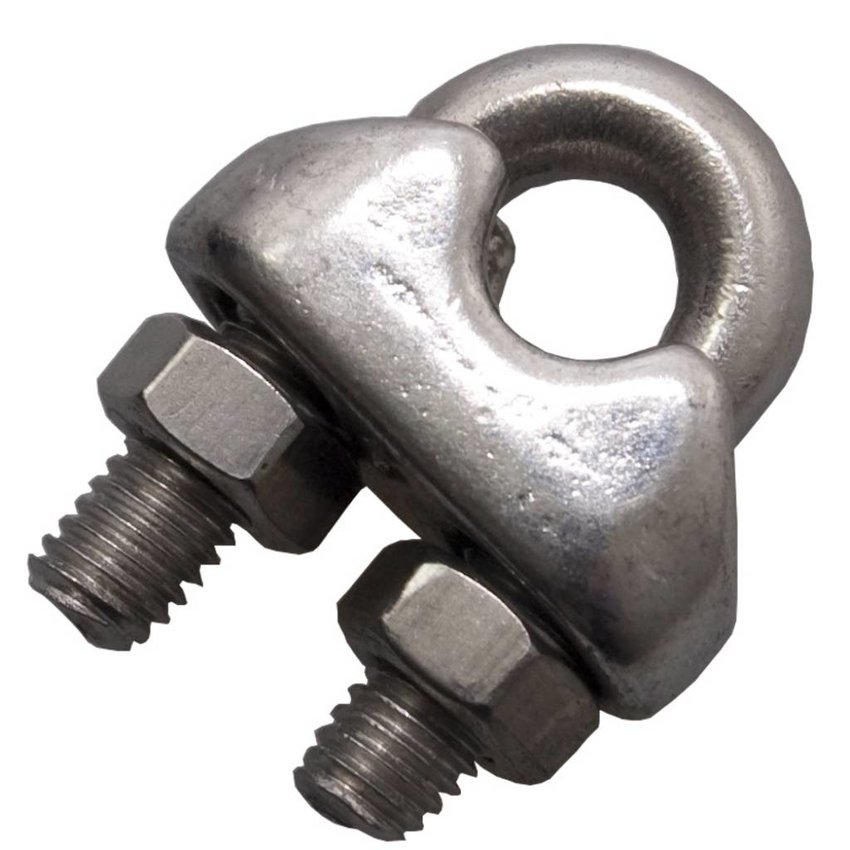

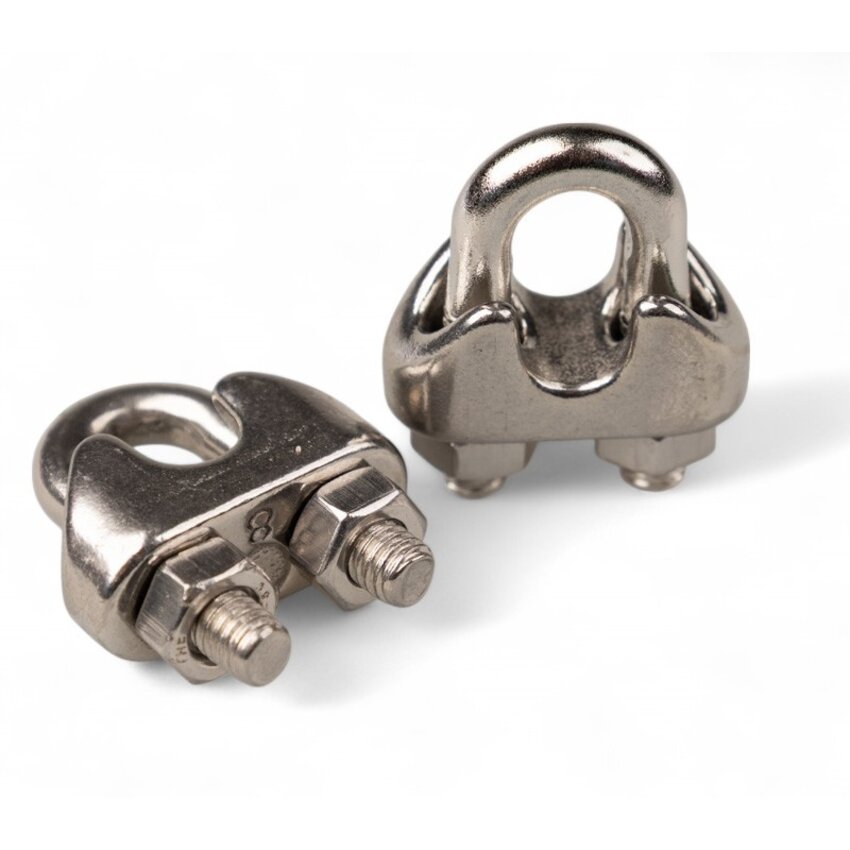

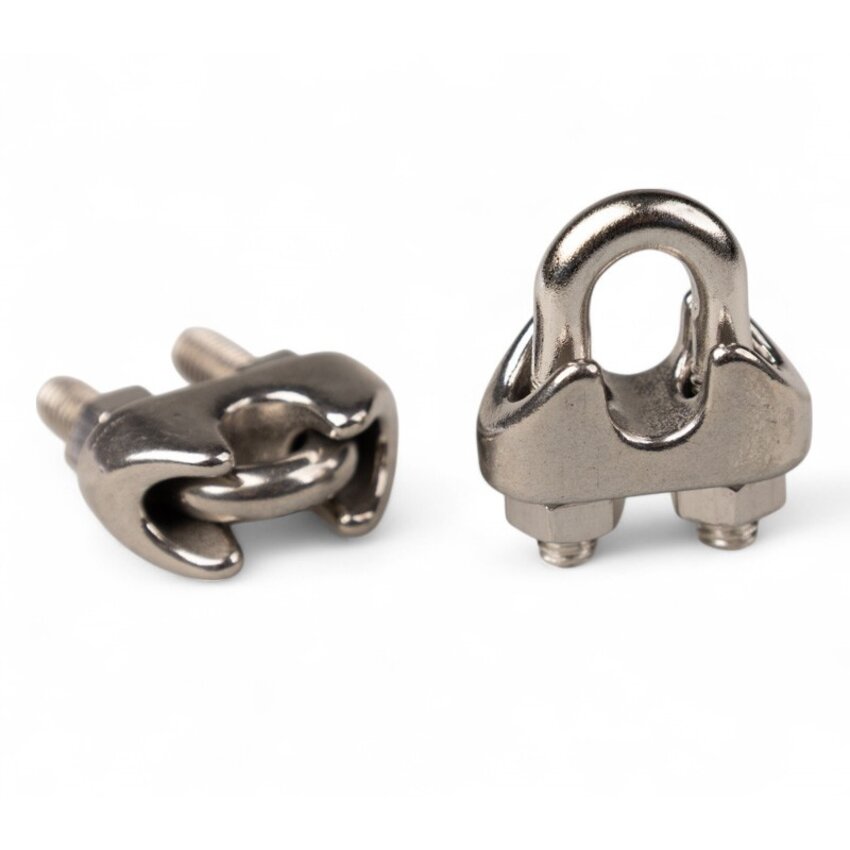

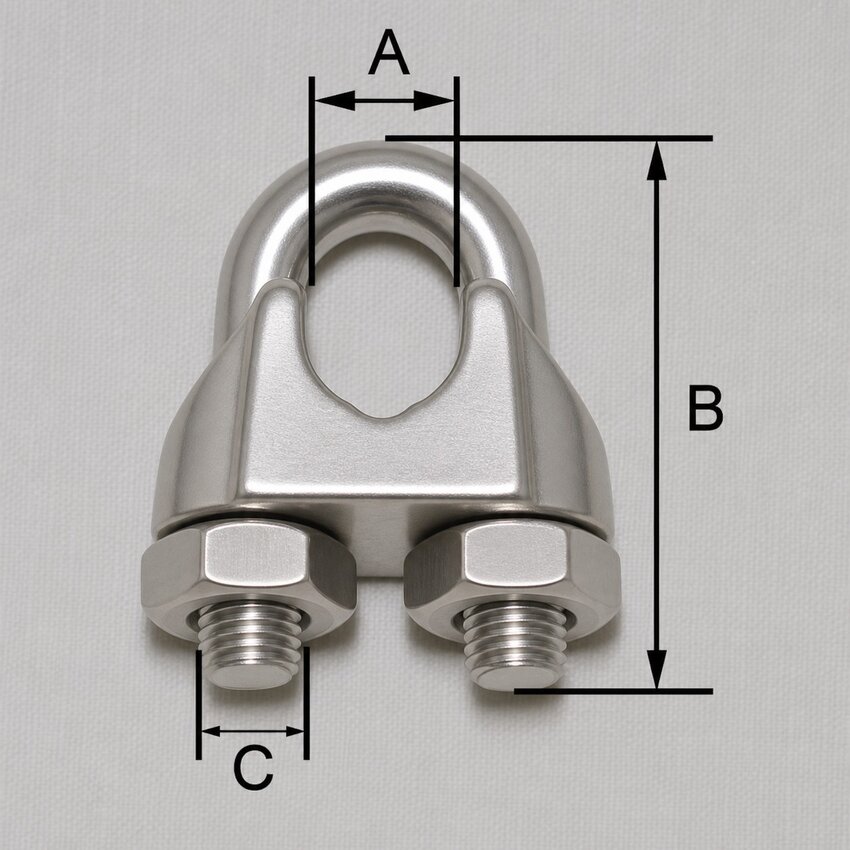

Stainless Steel Wire Rope Clip 4 mm with Nuts

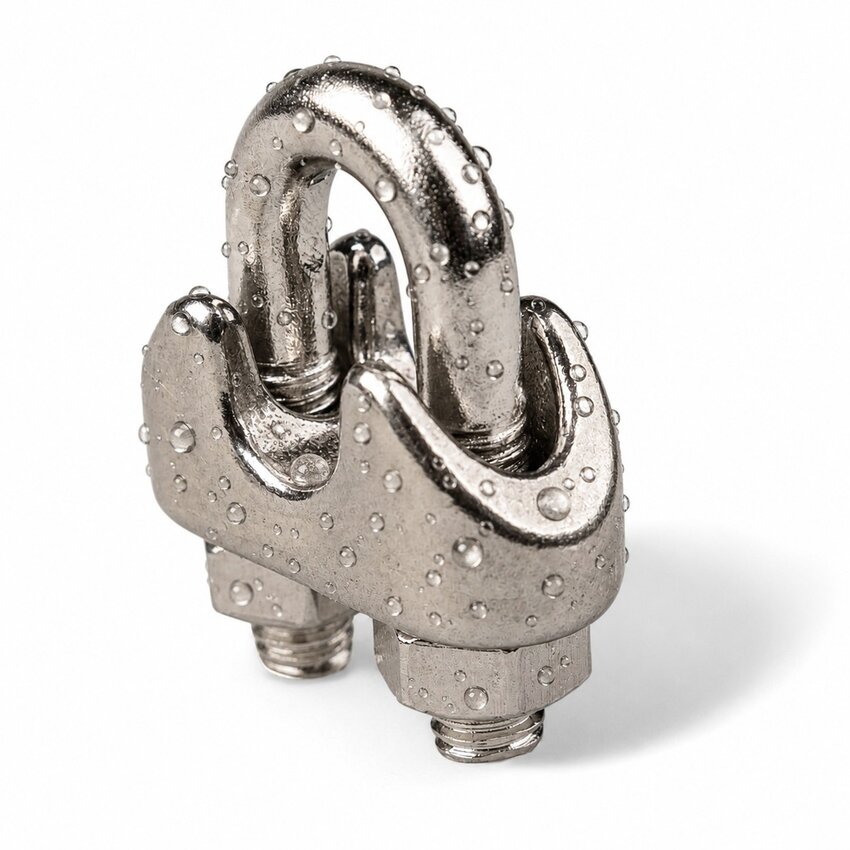

High-quality stainless steel wire rope clip 4 mm with nuts, manufactured from AISI 316 stainless steel. Designed to securely clamp 4 mm wire rope, this corrosion-resistant wire rope clip is ideal for outdoor, marine, and industrial applications.

Installation advice – watch the video (21 seconds)

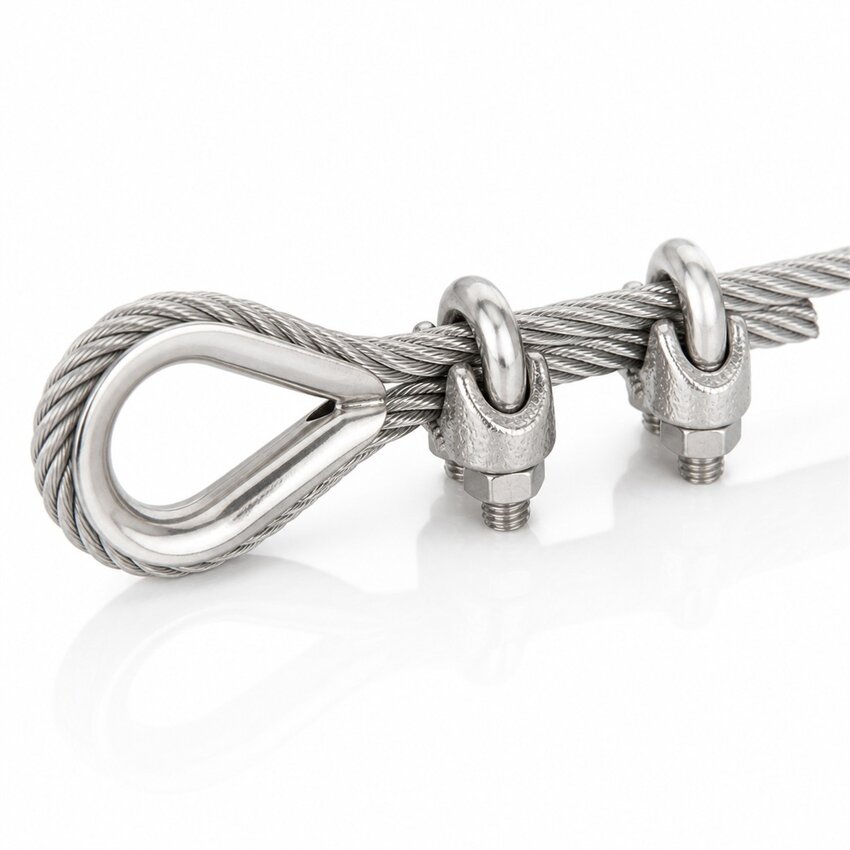

To create a connection that is as strong as the wire rope itself, we recommend using three wire rope clips. Position the clips with a spacing of 1 to 1.5 cm (0.4–0.6 inches) between each clip. Make sure the dead end of the wire rope is positioned on the top side of the clip. For optimum load distribution and to protect the wire rope, always use a wire rope thimble.

Tip: Want to see the correct way to install wire rope clips? Click here. For faster installation, a long 8 mm deep socket is available. It features a standard 1/4" drive and is especially useful when installing multiple wire rope clips, helping you save time and effort.

Click here to view the 8 mm deep socket for this wire rope clip.

Not sure which stainless steel wire rope clip is best for your application? Our customer service team is happy to help you choose the right wire rope clip and matching accessories.

Frequently Asked Question: Should I use a 4 mm wire rope clip with 4 mm wire rope?

Yes. If you are using 4 mm wire rope, you should also use a 4 mm wire rope clip. The size of the wire rope clip is designed to match the diameter of the wire rope. When creating a wire rope loop, especially in combination with a wire rope thimble, 4 mm wire rope clips provide a strong and secure connection.

For a safe installation, we recommend using multiple wire rope clips and installing them according to the recommended guidelines. Tighten the nuts evenly and inspect the connection regularly, especially if the wire rope is subjected to load.

Please note: Wire rope clips are intended for securing wire rope and are not certified lifting fittings. For lifting applications, always use certified lifting equipment and follow the applicable safety regulations.
