Technx Suspension kit Wire Rope 5

Hanging kit 5 is a super handy set to hang up anything quickly and with a few actions and minimal tool use. Very suitable because of the extra space to hide a cord.

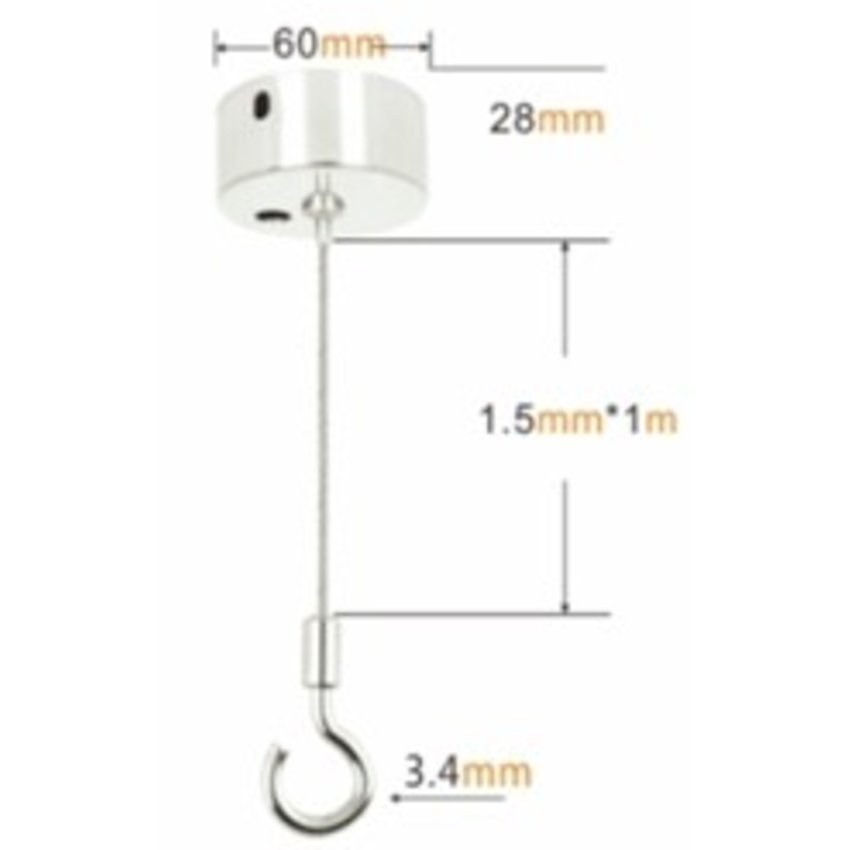

The steel wire rope has a thickness of 1.5mm and a length of 1 metre

Maximum weight: 10 kg

Test your construction by slightly overloading it during installation.

(this is a static weight, no rights can be derived from it)

The set consists of 3 parts:

1. The rose with self-clamp for ceiling mounting.

The self-clamping mechanism allows you to flexibly correct the height before and after hanging up.

2. The ceiling plates for fixing the rosette.

3. The steel cable with hook,

Step 1:

- You determine the correct position for the ceiling tile before installation. To do this, use the holes in the plate. Then place the rosette.

Step 2:

- This is where you attach the steel cable in the rosette by inserting the cable through the self-clamp.

Step 3:

- You can correct the height by pressing the cable holder and thus make the cable longer or shorter.

The steel wire rope can be easily released from the self-clamp by lying down and pressing the cable holder.
